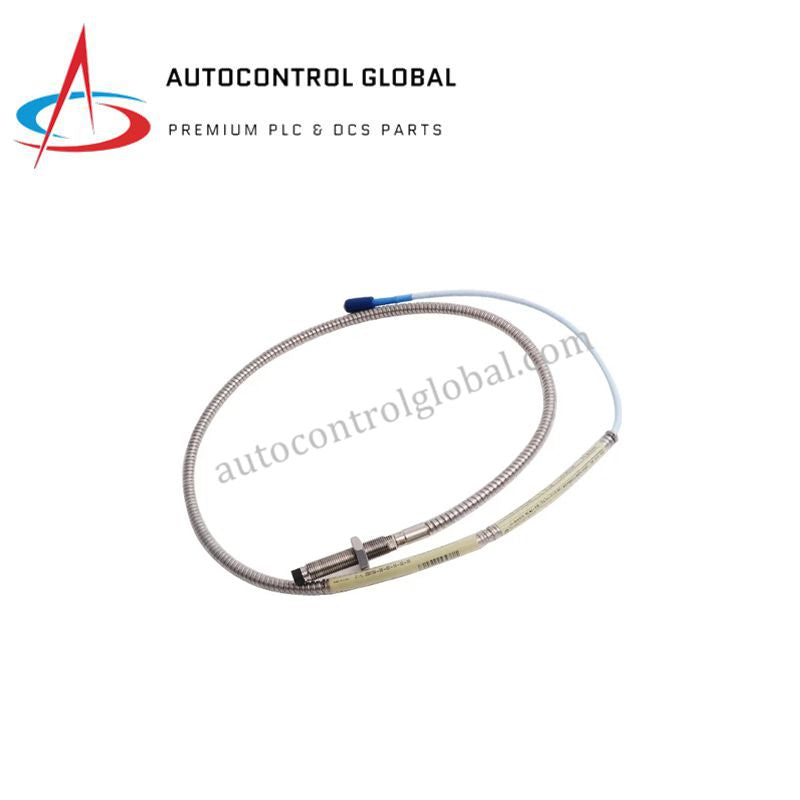

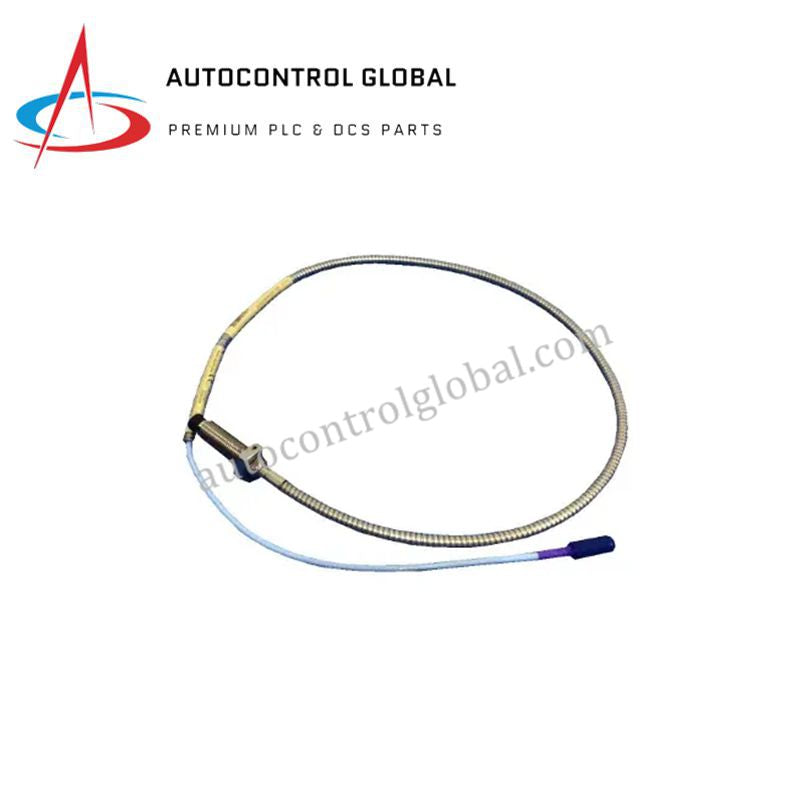

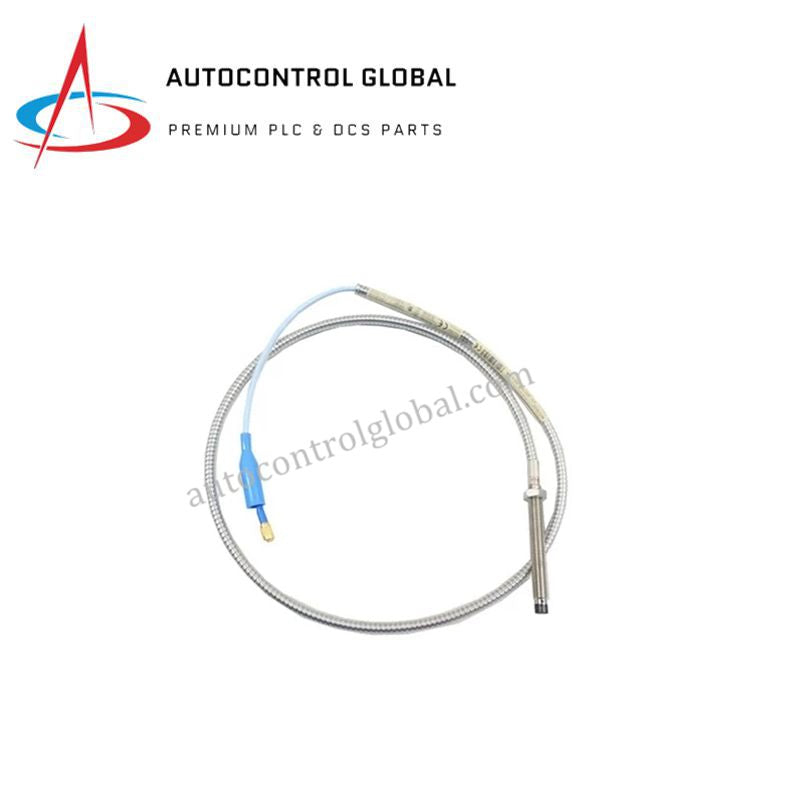

Bently Nevada 330104-00-18-10-02-00 | 5.5 m 8 mm Proximity Probe
Manufacturer: Bently Nevada
-
Part Number: 330104-00-18-10-02-00
Condition：New with Original Package
Product Type: 5.5 m 8 mm Proximity Probe
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 330104-00-18-10-02-00 is a high-precision 8 mm proximity probe from the 3300 XL series. It measures shaft vibration, radial displacement, and thrust position in industrial machinery. The probe includes a 5.5-meter cable and a side-exit design, ideal for installations with restricted space. Its stainless steel housing and PPS probe tip provide robust resistance to oil, moisture, and other industrial contaminants.
This probe is fully compatible with 3300 XL Proximitor® sensors and extension cables, ensuring accurate signal transmission and system reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-00-18-10-02-00 |
| Series | 3300 XL |
| Function | Proximity probe for vibration and position monitoring |
| Cable Length | 18 feet (5.5 meters) |
| Probe Tip Diameter | 10 mm |
| Thread Size | 3/8-24 UNF |
| Cable Exit Style | 02 = Side-exit |
| Connector Type | Coaxial connector for extension cable |
| Material | Probe tip: PPS; Housing: Stainless steel |
| Operating Temperature | –35°C to +120°C |
| Measurement Range | Typically 0.25 to 2.0 mm (10 to 80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25% of full-scale range |
| Environmental Rating | Resistant to oil, moisture, and industrial contaminants |
| Applications | Shaft vibration, thrust position, radial displacement |
| Origin | USA |
FAQ
Q1: Is the 330104-00-18-10-02-00 probe brand-new?
A1: Yes, it is full-new, original, and comes with a 12-month warranty.
Q2: What is the cable length?
A2: The probe features an 18-foot (5.5-meter) cable for flexible installation.
Q3: What is the probe tip diameter?
A3: The probe tip diameter is 10 mm, suitable for standard 3300 XL systems.
Q4: Can it be used in harsh environments?
A4: Yes, the probe is resistant to oil, moisture, and industrial contaminants.
Q5: What systems is it compatible with?
A5: It works with 3300 XL Proximitor® sensors and extension cables.
