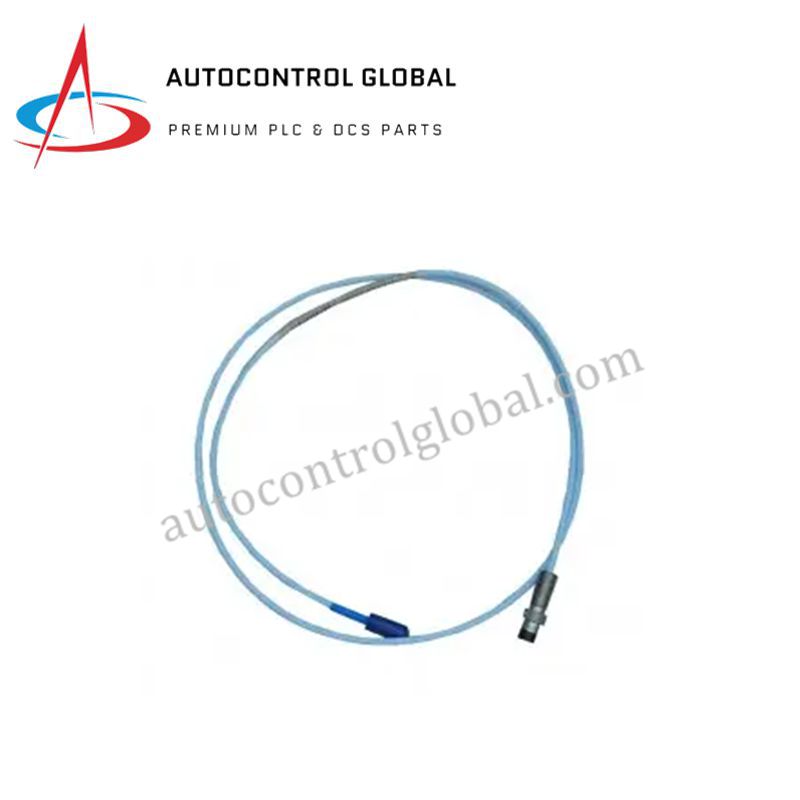

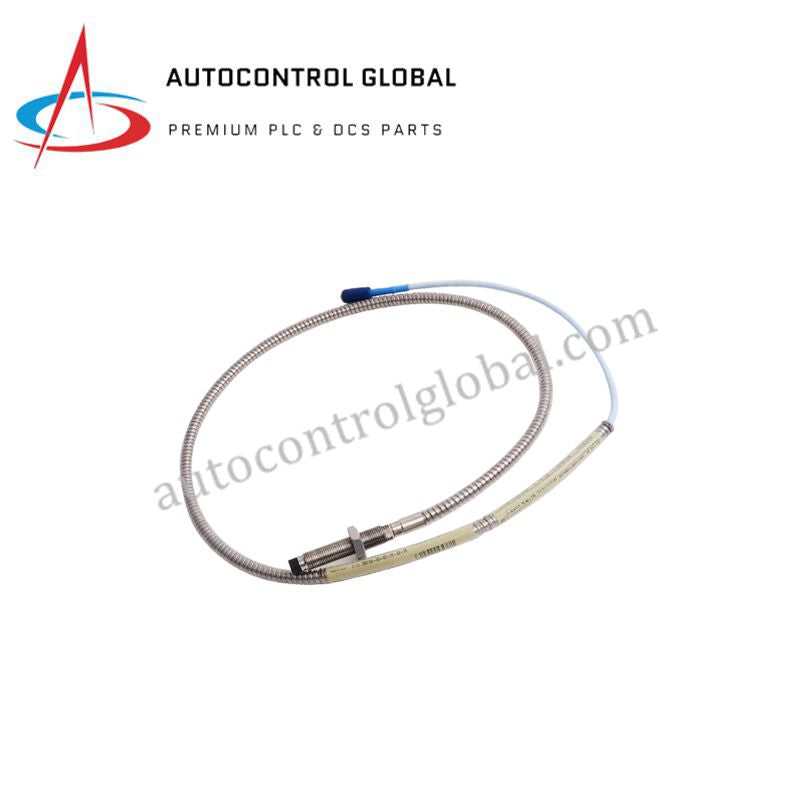

Bently Nevada 330104-00-23-10-02-00 | High-Precision 8 mm Probe
Manufacturer: Bently Nevada
-
Part Number: 330104-00-23-10-02-00
Condition：New with Original Package
Product Type: High-Precision 8 mm Probe
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The Bently Nevada 330104-00-23-10-02-00 is a high-precision 8 mm proximity probe from the 3300 XL series. It provides non-contact measurement of vibration and shaft position in rotating machinery.
This probe is part of a complete transducer system including an extension cable and Proximitor® sensor. It is ideal for critical applications such as turbines, compressors, and motors, ensuring accurate condition monitoring and machinery protection.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | 330104-00-23-10-02-00 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Thread Type | 1/4-28 UNF |
| Unthreaded Length | 23 mm |
| Cable Length | 10 feet (3.05 meters) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Measurement Range | 0.25 mm to 2.0 mm |
| Frequency Response | DC to 10 kHz |
| Linearity | ±0.25% of full-scale range |
| Operating Temperature | –51°C to +177°C |
| Environmental Rating | IP67 – dustproof and water-resistant |
| Pull Strength | ≥330 N (with CableLoc™ retention system) |
| Housing Material | AISI 303/304 stainless steel |
| Tip Material | PPS (Polyphenylene sulfide) |
| Compliance | CE, RoHS, ISO 9001 |
