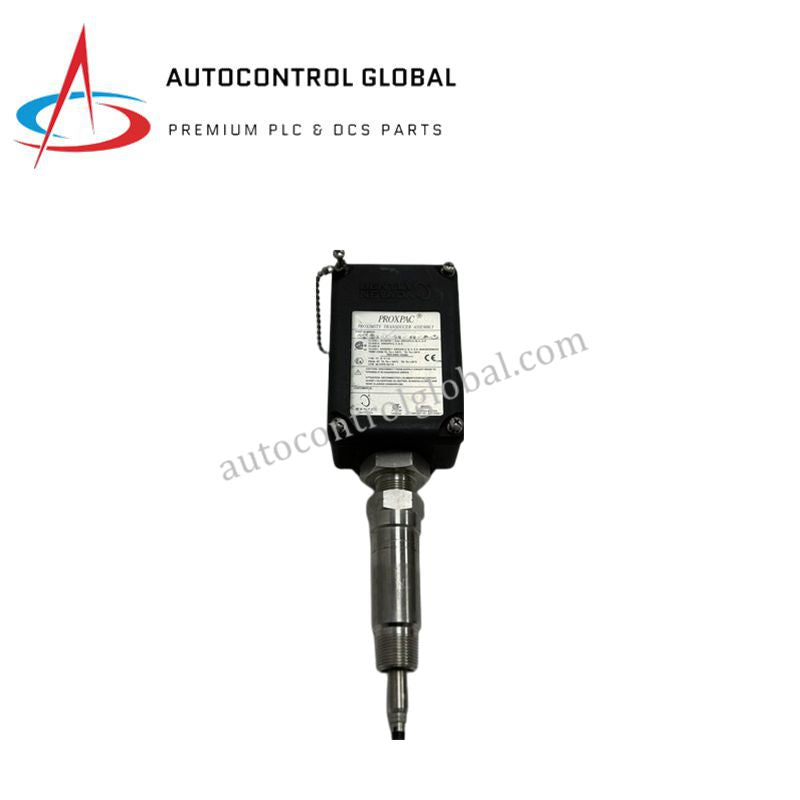

Bently Nevada 330801-28-05-101-03-02 |3500 Series Proximity Transducer
Manufacturer: Bently Nevada
-
Part Number: 330801-28-05-101-03-02
Condition：New with Original Package
Product Type: 3500 Series Proximity Transducer
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The Bently Nevada 330801-28-05-101-03-02 is a high-precision proximity transducer assembly from the 3500 Series, designed for continuous monitoring of vibration, shaft position, and rotating machinery health.
This assembly uses eddy current technology to provide non-contact measurements, ensuring accurate detection of shaft movement without affecting machinery operation. It is widely used in turbines, compressors, motors, and other critical industrial assets.
The model includes a factory-matched probe, extension cable, and Proximitor sensor, ensuring optimal system performance. Its robust construction supports predictive maintenance and machinery protection in harsh industrial environments.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | 330801-28-05-101-03-02 |
| Series | 3500 Series Proximitor® / Seismic Monitor |
| Probe Tip Diameter | 8 mm |
| Thread Type | 5/16-24 UNF |
| Unthreaded Length | 28 mm |
| Cable Length | 5 meters (extension cable) |
| System Length | 9 meters total (probe + extension cable + sensor) |
| Connector Type | Coaxial connectors |
| Measurement Range | 0.25 mm to 2.3 mm (10–90 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Frequency Response | 0 Hz to 10 kHz |
| Linearity | ±0.25% of full-scale range |
| Output Impedance | 50 Ω |
| Operating Temperature | 0°C to +45°C |
| Power Supply | –24 VDC via Proximitor sensor |
| Environmental Protection | Resistant to EMI, vibration, and industrial contaminants |
| Compliance | CE, RoHS, ISO 9001 |
