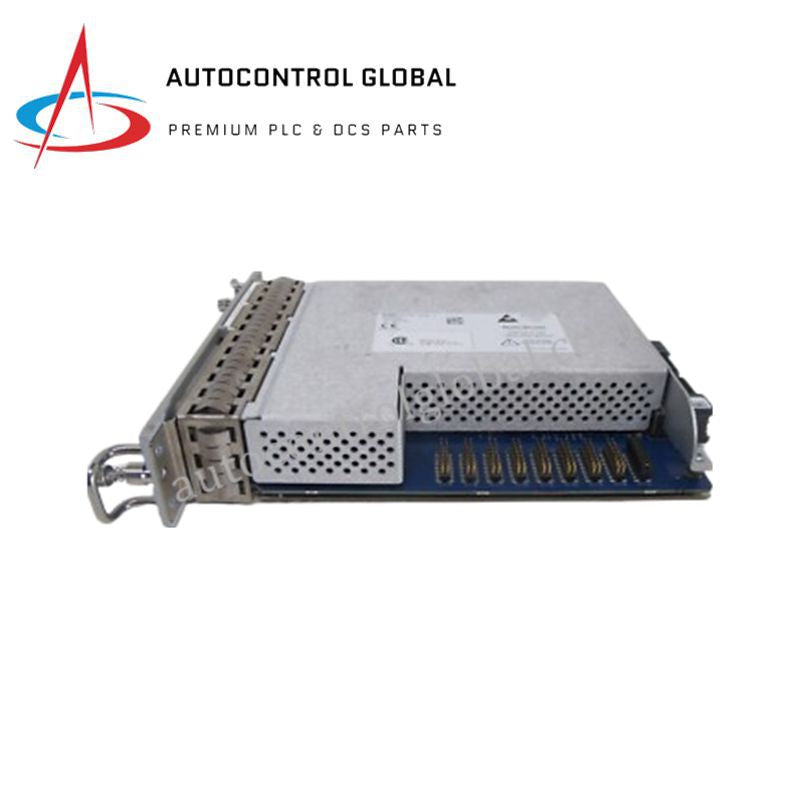

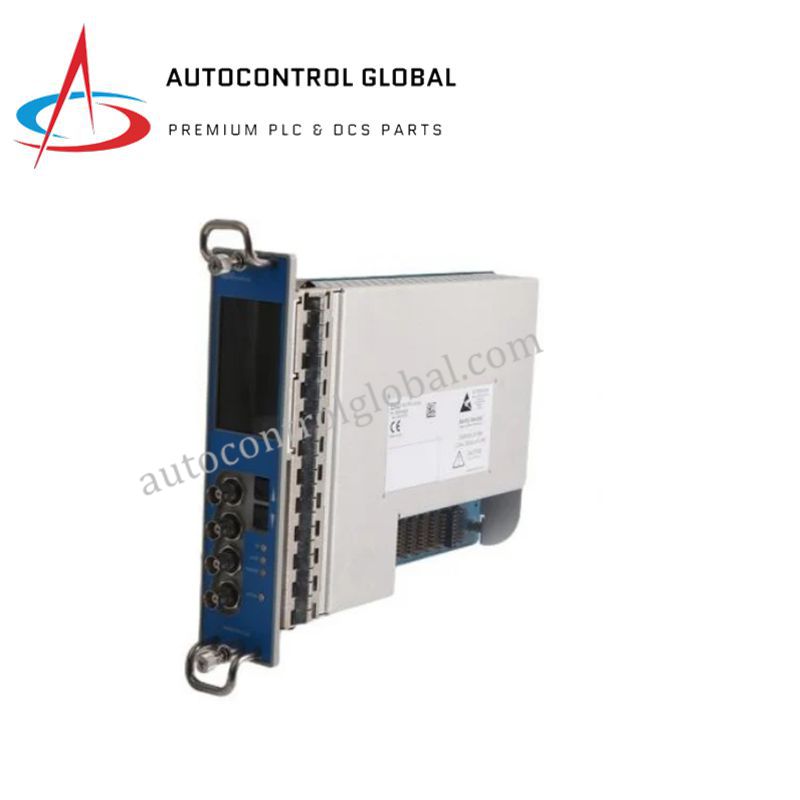

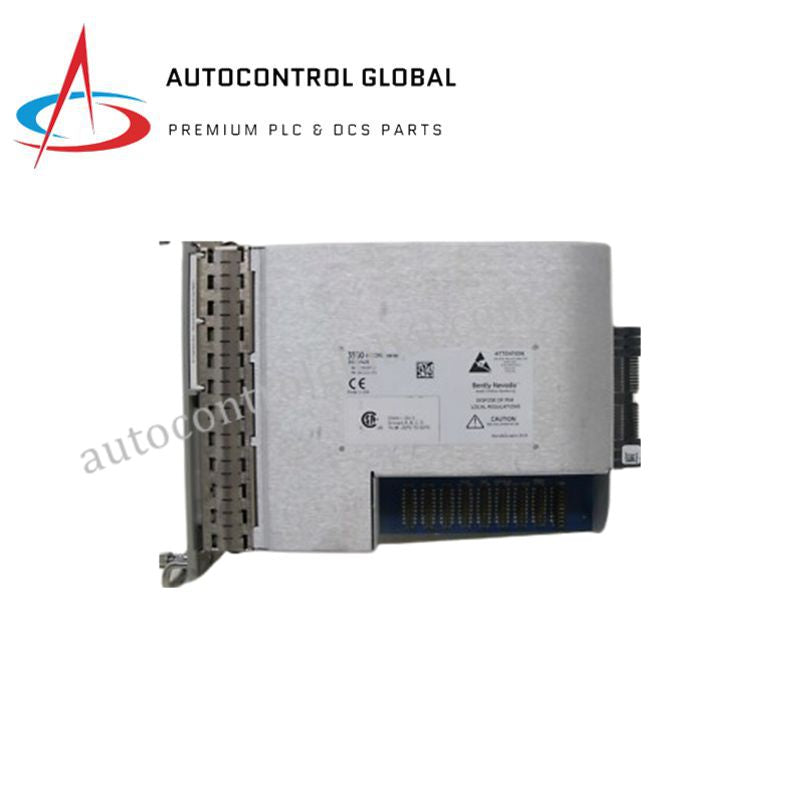

Bently Nevada 3500/42E | Radial Vibration & Thrust Position Monitor
Manufacturer: Bently Nevada
-
Part Number: 3500/42E 285691-01
Condition：New with Original Package
Product Type: Radial Vibration & Thrust Position Monitor
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 3500/42E (P/N: 285691-01) is a high-performance Proximitor®-based vibration and position monitor. It continuously measures radial vibration, thrust position, and differential expansion of critical machinery.
This module is widely used in turbines, compressors, motors, pumps, and expanders to detect early signs of imbalance, misalignment, and bearing wear. It integrates with 3500 Series racks and supports alarm thresholds, relay outputs, and buffered diagnostic signals for enhanced machinery protection.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/42E |
| Part Number | 285691-01 |
| Function | Proximitor®-based vibration and position monitoring |
| Channels | 4 independent channels |
| Measurement Types | Radial vibration, thrust position, differential expansion |
| Sensor Compatibility | 3300 XL Proximity Probes and Proximitor® sensors |
| Sensitivity | Typically 200 mV/mil (7.87 mV/μm) |
| Buffered Outputs | BNC connectors per channel |
| Alarm Thresholds | Configurable Alert and Danger levels per channel |
| Relay Outputs | Compatible with 3500/32 or 3500/34 relay modules |
| Power Supply | Supplied via 3500 rack |
| Mounting | Full-height module; installs in 3500 rack |
| Operating Temperature | –30°C to +65°C |
| Environmental Rating | Industrial-grade; suitable for harsh environments |
| Compliance | API 670 compliant when properly configured |
| Applications | Turbines, compressors, pumps, motors, expanders |
FAQ
Q1: Is this module new or used?
A1: The 3500/42E is brand new, original manufacturer packaging, with standard factory warranty.
Q2: How many channels does this module support?
A2: It supports four independent channels, configurable for different measurement types.
Q3: What type of sensors can I connect?
A3: Compatible with 3300 XL Proximity Probes and Proximitor® sensors.
Q4: What is the sensitivity of this module?
A4: Typically 200 mV/mil (7.87 mV/μm).
Q5: What is the operating temperature range?
A5: It operates from –30°C to +65°C.
