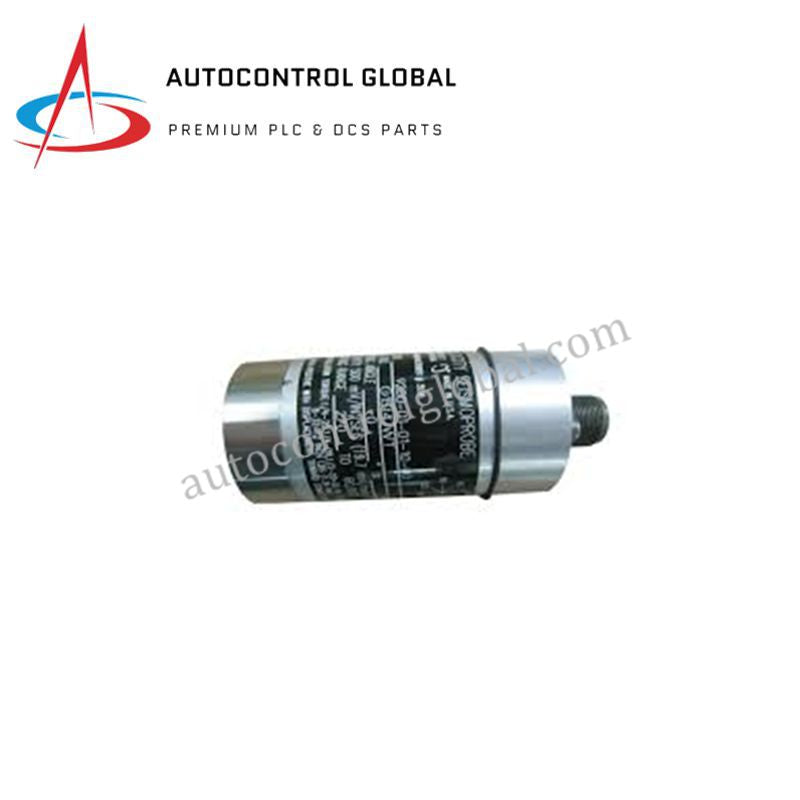

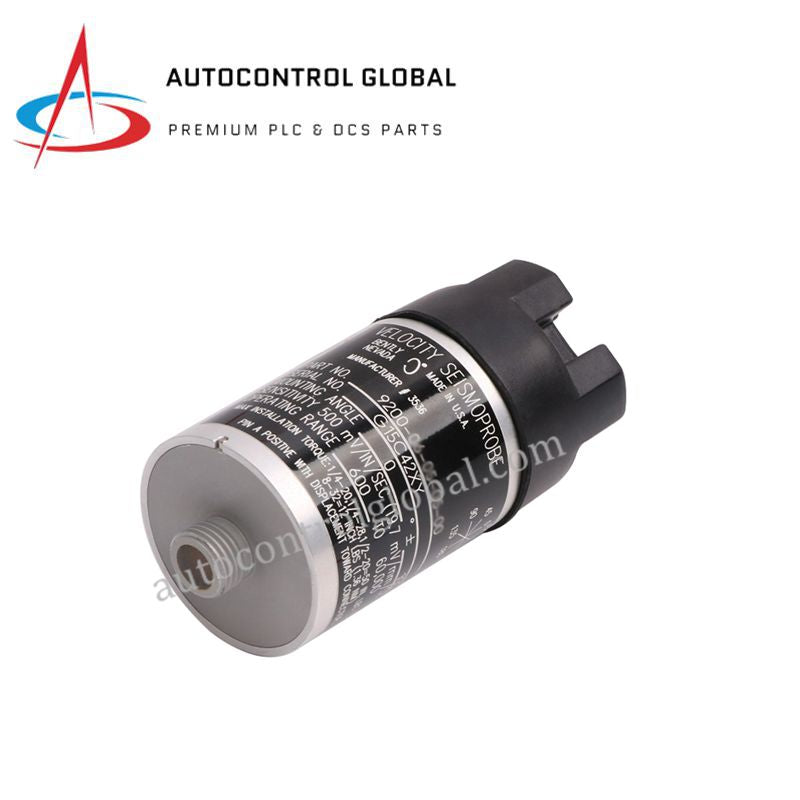

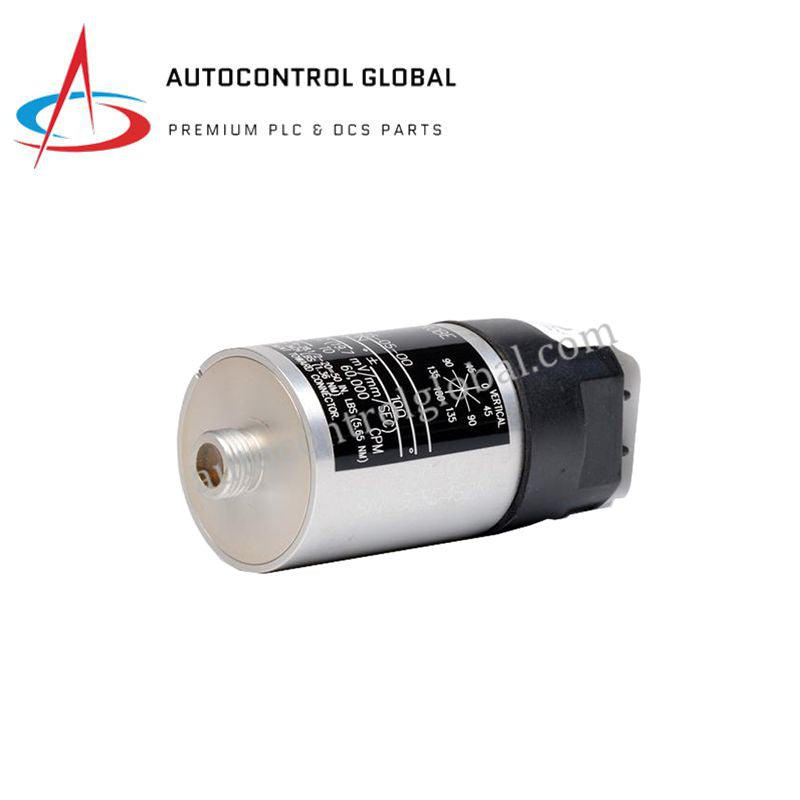

Bently Nevada 9200-03-02-02-00 | Industrial Machinery Transducer
Manufacturer: Bently Nevada
-
Part Number: 9200-03-02-02-00
Condition：New with Original Package
Product Type: Industrial Machinery Transducer
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 9200-03-02-02-00 is a rugged seismic velocity transducer for industrial rotating machinery. It converts mechanical vibration into an electrical signal proportional to velocity, ideal for monitoring low- to mid-frequency casing vibration in motors, pumps, fans, and compressors.
This model features a side-mount MIL-style connector and a circular mounting base with a ¼-28 UNF stud. Its stainless steel housing ensures durability in harsh industrial environments, while the transducer maintains high sensitivity and accuracy under extreme conditions.
The 9200-03-02-02-00 is part of the Bently Nevada 9200 series, known for reliable performance in vibration monitoring systems.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 9200-03-02-02-00 |
| Function | Seismic velocity transducer |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) |
| Frequency Range | 5 Hz to 2,000 Hz (±3 dB) |
| Output Signal | Voltage proportional to vibration velocity |
| Mounting Thread | ¼-28 UNF male stud |
| Connector Type | MIL-style, side exit (02) |
| Cable Length | 3 feet (approx. 0.9 meters) |
| Temperature Range | –40°C to +100°C |
| Shock Limit | 5,000 g |
| Housing Material | Stainless steel |
| Weight | 0.3 kg |
| Shipping Weight | 1.5 kg |
| Environmental Rating | Suitable for industrial and hazardous environments |
| Mounting Angle / Min Frequency | 03 = 90° ±2.5°, 4.5 Hz (270 cpm) |
| Applications | Casing vibration monitoring in motors, pumps, fans, compressors |
| Origin | USA |
| Optional Documentation | Certificate of Origin (COO) available |
FAQ
Q1: What is the lead time for the 9200-03-02-02-00?
A1: Estimated lead time is 8–10 weeks via FEDEX shipping.
Q2: What is the mounting configuration?
A2: Circular base with a ¼-28 UNF stud and 90° ±2.5° mounting angle.
Q3: What frequency range does it cover?
A3: 5 Hz to 2,000 Hz (±3 dB), suitable for low- and mid-frequency monitoring.
Q4: What connector type does it use?
A4: MIL-style side-exit connector (option 02).
Q5: Can it operate in extreme temperatures?
A5: Yes, operating temperature ranges from –40°C to +100°C.
