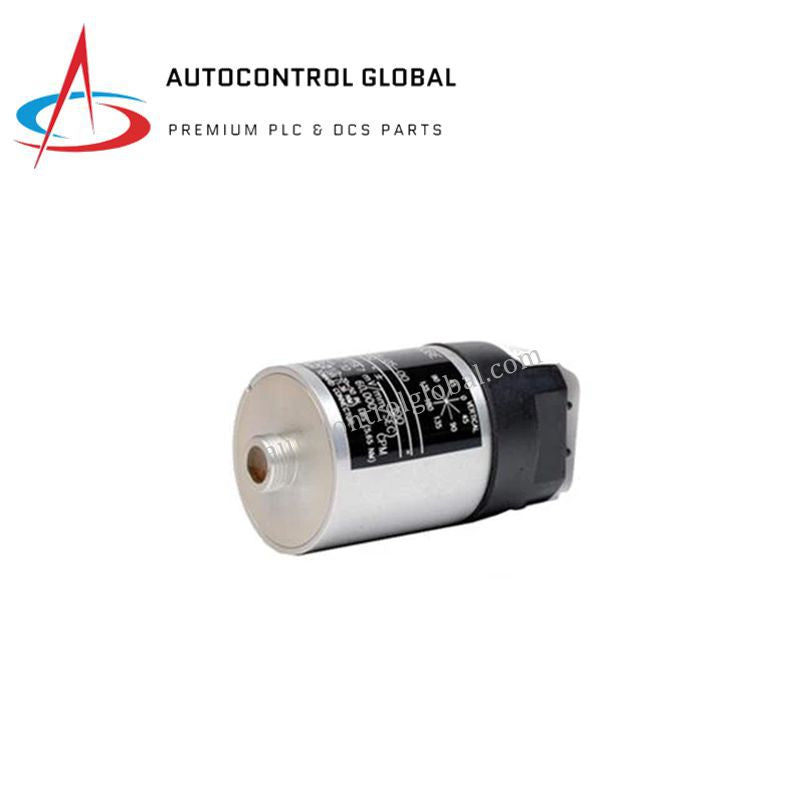

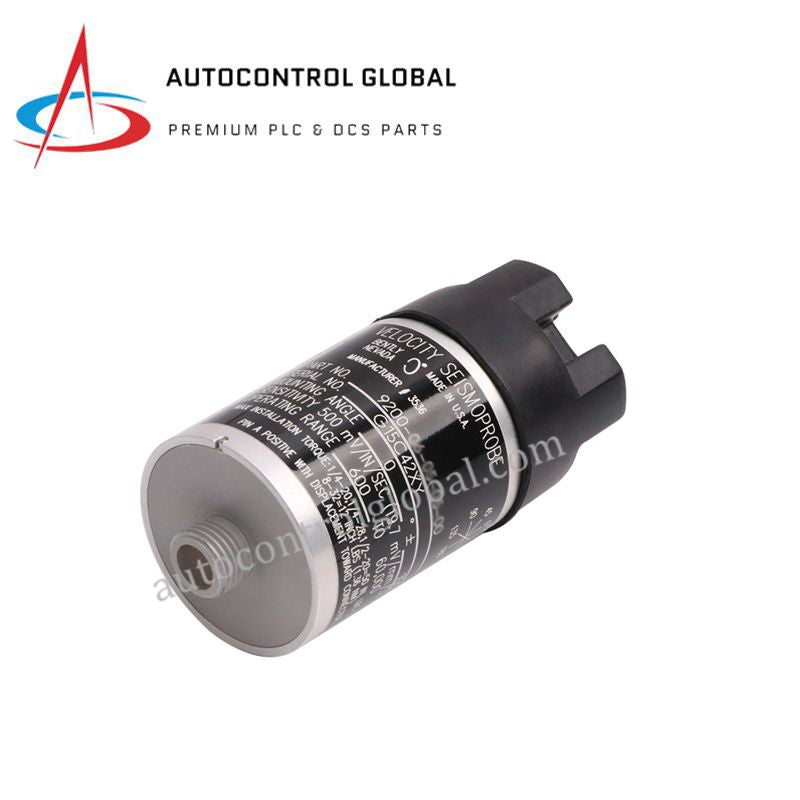

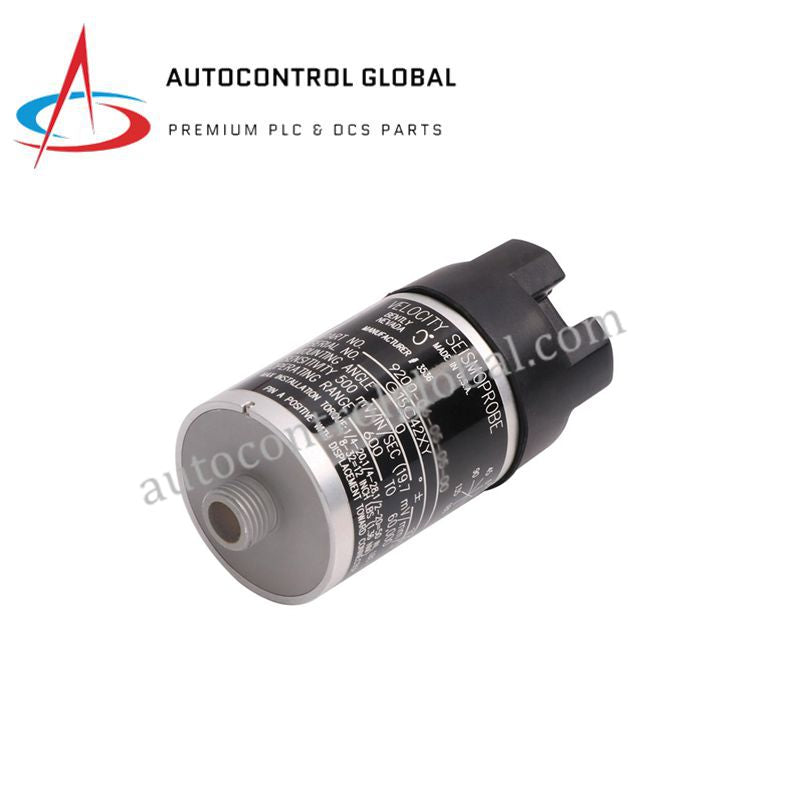

Bently Nevada 9200-06-05-10-00 | Seismoprobe Transducer for Machinery
Manufacturer: Bently Nevada
-
Part Number: 9200-06-05-10-00
Condition：New with Original Package
Product Type: Seismoprobe Transducer for Machinery
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 9200-06-05-10-00 is a two-wire velocity seismoprobe transducer that measures absolute vibration of bearings, machine casings, or structures relative to free space. It uses a moving-coil sensor to produce a voltage output proportional to vibration velocity. This module is ideal for continuous condition monitoring or periodic diagnostics in turbines, compressors, motors, and pumps.
Its rugged, corrosion-resistant construction removes the need for additional protective housing. Users can pair it with optional velocity-to-displacement converters to increase monitoring flexibility. The transducer is compatible with shielded two-wire cables such as 9571, 84661, and 9755 for easy integration.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 9200-06-05-10-00 |
| Sensor Type | Moving-coil velocity transducer (seismoprobe) |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% at 100 Hz |
| Frequency Response | 10 Hz (minimum) up to 1 kHz |
| Mounting Base | Isolated rectangular flange (option 05); Circular M10 × 1 stud |
| Connector Type | Coaxial for test equipment (option 06); terminal block top mount |
| Cable Options | Shielded 2-wire cables (e.g., 9571, 84661, 9755) |
| Operating Temperature | –29°C to +121°C (–20°F to +250°F) |
| Maximum Cable Length | Up to 305 m (1,000 ft) between sensor and monitor |
| Power Supply | Self-powered (no external supply required) |
| Applications | Vibration monitoring in turbines, compressors, motors, pumps |
| Certifications | Option 00 = No agency approvals |
| Shipping Weight | 2 kg |
| Made in | USA |
FAQ
Q1: What type of sensor is the 9200-06-05-10-00?
A1: It is a moving-coil, two-wire velocity seismoprobe for vibration monitoring.
Q2: What mounting options are available?
A2: Features isolated rectangular flange (option 05) and circular M10 × 1 stud.
Q3: What connector options are included?
A3: Coaxial connector for test equipment and terminal block top mount.
Q4: What frequency range does it cover?
A4: Operates from 10 Hz to 1 kHz, suitable for most industrial machinery vibrations.
Q5: Is the product new and original?
A5: Yes, it is brand new, factory-packed, with 12-month warranty.
