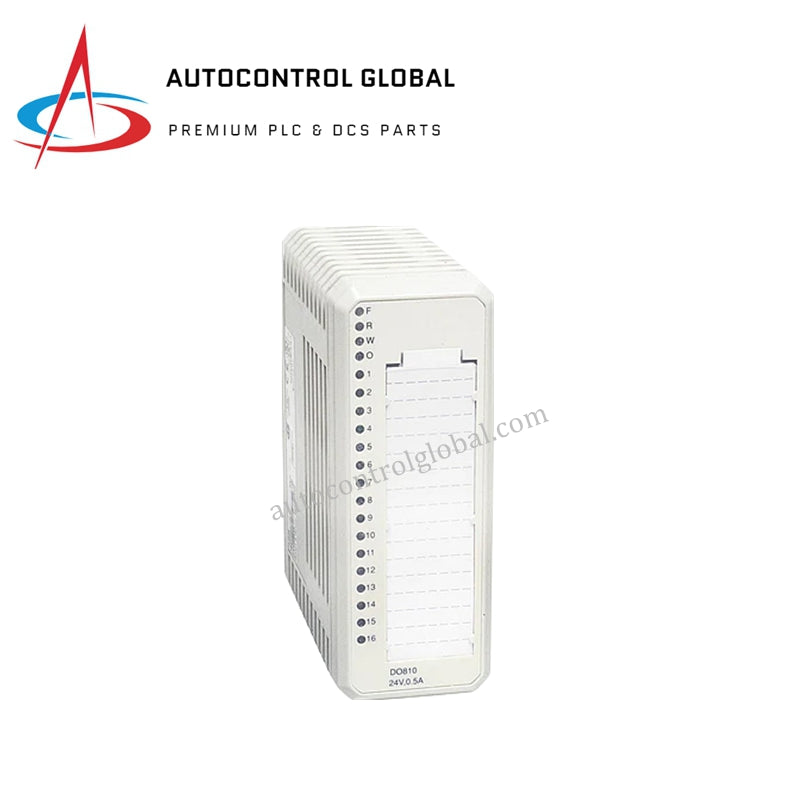

Brand New ABB DO810 3BSE020510R1 Digital Output Module In Stock

Product Overview

The ABB Digital Output Module (Article Number: 3BSE008510R1) is designed for industrial automation, offering reliable digital output control. With 16 channels supporting 24V d.c. signals (12 - 32 V d.c.), each channel can handle up to 0.5 A. This module features groupwise isolation from ground and short-circuit-proof current-limited outputs, ensuring stable performance in various environments. It is compatible with MTUs TU810, TU812, TU814, and TU830 and uses an AA keying code.

Specifications

• Type: Digital Output
• Signal Specification: 24V d.c. (12 - 32 V d.c.), 0.5 A per channel
• Number of Channels: 16
• Isolation: Groupwise isolated from ground
• Output Load: < 0.4 Ω
• Current Limiting: Short circuit proof, current limited output
• Maximum Field Cable Length: 600 meters (656 yards)
• Rated Insulation Voltage: 50 V
• Dielectric Test Voltage: 500 V a.c.
• Power Dissipation: Typical 2.1 W
• Current Consumption (+5 V Modulebus): 80 mA
• Compatibility: Use with MTU: TU810, TU812, TU814, TU830
• Keying Code: AA
• Dimensions:
  • Width: 45 mm (1.77”)
  • Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
  • Height: 119 mm (4.7”)
  • Weight: 0.18 kg (0.4 lbs.)

Features

• Reliable Digital Outputs: Supports 24V d.c. signals with up to 0.5 A per channel for robust control.
• Multiple Channels: 16 channels for versatile control applications.
• Groupwise Isolation: Ensures stable operation by isolating groups from ground.
• Short Circuit Proof: Current-limited outputs provide enhanced safety and reliability.
• Long Cable Runs: Supports field cable lengths up to 600 meters without signal degradation.
• Compact Design: Easy to integrate into existing systems due to its small size.
• Energy Efficient: Low power dissipation and current consumption reduce heat generation and energy use.
• Compatibility: Works seamlessly with MTUs TU810, TU812, TU814, and TU830 using the AA keying code.
