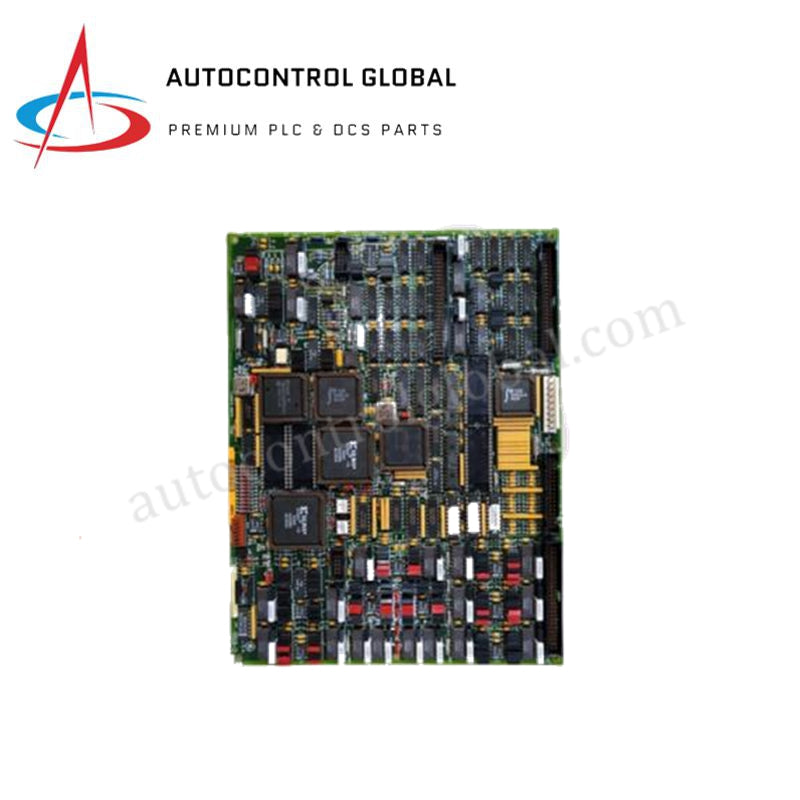

Brand New DS200DTBCG1A GE | Turbine Trip & Alarm Interface

Product Overview

The GE DS200DTBCG1A (DTBC) acts as a specialized Digital Terminal Board within the Speedtronic™ Mark V turbine control ecosystem. It provides the physical interface required to bridge field-side discrete devices—such as limit switches, pressure sensors, and auxiliary relays—with the control system's digital logic cores. By handling both high-integrity digital inputs and critical relay driver outputs, the DTBC ensures the Mark V rack maintains accurate status monitoring and executes fail-safe trip sequences. This board functions as a high-density termination point, routing conditioned signals directly to the TCEB or TCCB core boards.

Condition: 100% Brand New, Original Factory Packing.

Technical Specifications

The DS200DTBCG1A incorporates high-grade galvanic isolation and industrial connectors to maintain signal integrity in electromagnetic-heavy environments.

Engineering Advantages

• Streamlined Signal Routing: The DTBC board replaces complex point-to-point wiring with a centralized termination architecture. High-density ribbon cable headers facilitate a direct, secure connection to core processing boards, significantly reducing the probability of wiring errors during initial installation or field maintenance.

• TMR Redundant Data Integrity: For Triple Modular Redundant (TMR) applications, the DS200DTBCG1A fans out digital inputs to all three control cores (R, S, and T). This parallel routing allows the system to perform 2-out-of-3 (2oo3) hardware voting, which prevents a single faulty field contact from causing a false turbine trip.

• Advanced Electrical Isolation: Industrial switching events often generate high-voltage transients. The DTBC incorporates dedicated surge suppression and isolation barriers for every channel. These components prevent "noise" from field instrumentation from infiltrating the sensitive VME backplane electronics.

• Deterministic Trip Execution: The board's relay driver outputs handle safety-critical sequences, such as emergency shutdowns and fire alarms. The fail-safe design ensures these outputs transition to a known safe state upon loss of control power, protecting the turbine and personnel.

• Rugged Mechanical Design: GE engineered the terminal blocks on the G1A revision to resist the high-frequency vibrations found in turbine enclosures. The high-retention screw terminals ensure consistent electrical contact over years of continuous operation, minimizing intermittent "flicker" alarms.

FAQs

Q: Can I use the DS200DTBCG1A to terminate 4-20mA analog signals?

A: No. The DTBC handles Digital (Discrete) Signals only. It processes "on/off" status and relay closures. For analog feedback from LVDTs or thermocouples, you must utilize an analog terminal board like the DS200TBQCG1A.

Q: What is the relationship between the DTBC and the TCEB core board?

A: The DTBC (DS200DTBCG1A) serves as the physical landing point for field wires. It conditions these signals and routes them via ribbon cables to the TCEB (Digital I/O Expansion) board, which then processes the logic and communicates with the main CPU.

Q: How do I identify a failure on the DTBC module?

A: Common indicators include "Input Discrepancy" alarms on the HMI or the failure of a specific relay to trip during testing. If the logic bit changes in the control software but the physical relay output does not transition at the DTBC terminal, the board's driver circuit or isolation component has likely failed.

Q: Does the "AAA" suffix affect compatibility with the G1A version?

A: The DS200DTBCG1A is the base functional group. The "AAA" suffix indicates a specific manufacturing artwork revision. These revisions are backward compatible and fulfill the same electrical specifications as the G1A base model.
