Brand New DS200TCEBG1A GE | Turbine Control Relay Driver
Manufacturer: GE Fanuc
-
Part Number: DS200TCEBG1A
Condition:New with Original Package
Product Type: Digital I/O Expansion
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

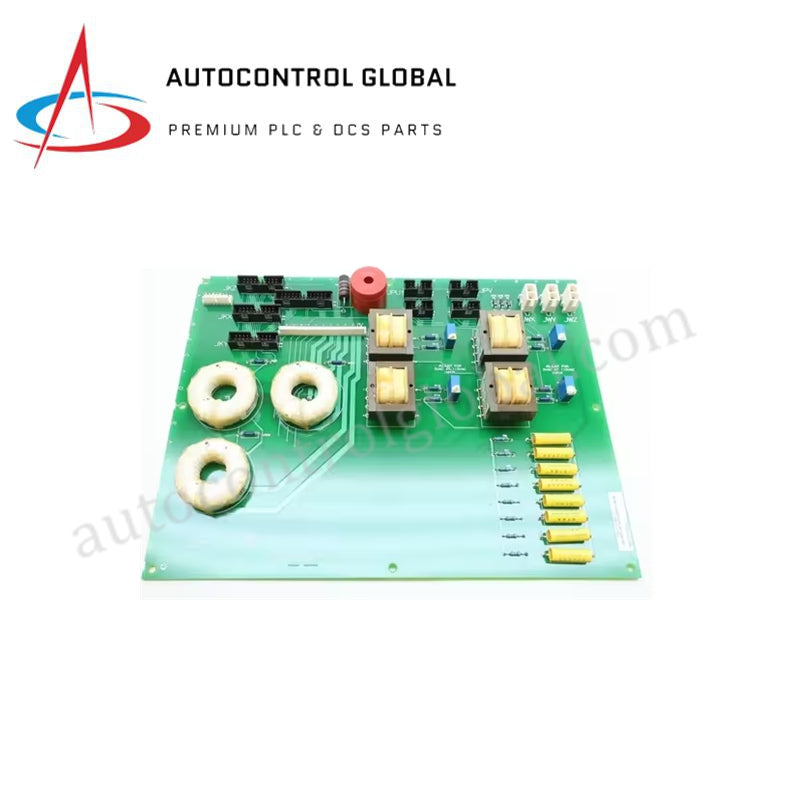

The GE DS200TCEBG1A (TCEB) functions as a Digital I/O Expansion and Protective Termination Board within the Speedtronic™ Mark V turbine control architecture. This module increases the system's capacity to interface with discrete field devices, managing an expanded array of contact inputs and relay outputs. By facilitating additional status monitoring and alarm actuation, the TCEB board allows the Mark V controller to maintain comprehensive oversight of auxiliary turbine systems. It operates primarily as an expansion hub, routing signals between the core processors and external terminal boards to ensure synchronized protective logic execution.
Condition: 100% Brand New Original.
Technical Specifications
The DS200TCEBG1A utilizes high-speed digital buffers and industrial isolation to maintain signal integrity across the Mark V backplane.
| Parameter | Specification |
| Manufacturer | General Electric (GE Vernova) |
| Model Number | DS200TCEBG1A |
| System Platform | Speedtronic™ Mark V |
| Product Type | Digital I/O Expansion Board (TCEB) |
| Function | Digital Input/Output Expansion & Termination |
| Input Channels | Multiple isolated contact closure / status inputs |
| Output Channels | Relay driver outputs for trips and alarms |
| Interface | High-density ribbon cable connectors (e.g., to TBEB) |
| Power Supply | 28 V DC (Nominal) |
| Operating Temperature | 0°C to +60°C |
| Dimensions | 215 × 154 × 30 mm |
Engineering Advantages
-
Scalable Digital Capacity: The TCEB board removes the I/O bottlenecks common in complex turbine retrofits. It provides the necessary circuitry to monitor additional limit switches, pressure switches, and auxiliary motor statuses, allowing for deeper integration of balance-of-plant (BOP) equipment into the primary Mark V control loop.
-
Robust Signal Conditioning: Every input channel features integrated RC filtering and opto-isolation. This hardware-level conditioning eliminates contact bounce and neutralizes electromagnetic interference (EMI) from the turbine hall, ensuring that the controller never receives "false" digital transitions.
-
High-Current Relay Drive Capability: The board incorporates heavy-duty drivers capable of actuating interposing relays and emergency trip solenoids. These outputs include surge suppression to protect the internal logic from inductive flyback voltage when field relays de-energize.
-
TMR Core Compatibility: The DS200TCEBG1A fully supports the Triple Modular Redundant (TMR) architecture. When installed across the R, S, and T cores, it enables the system to perform hardware-level voting on critical digital inputs, significantly reducing the probability of a nuisance trip caused by a single failed field switch.
-
Simplified Maintenance Access: The modular PCB design uses standardized ribbon cable headers to interface with terminal boards like the DS200TBEBG1A. This separation of core electronics from field wiring allows technicians to replace the TCEB module in minutes without re-terminating permanent field cables.
FAQs
Q: Can I use the DS200TCEBG1A to process analog 4-20 mA signals?
A: No. The TCEB board is strictly a digital I/O expansion module. It handles discrete "on/off" signals, contact closures, and relay drives. For analog processing, such as LVDTs or thermocouples, you must utilize the DS200TCQCG1A Analog I/O Core Board.
Q: Does this board connect directly to field switches?
A: The DS200TCEBG1A is a core-mounted board. It interfaces with a TBEB (Termination Board Expansion) via ribbon cables. The actual field wires terminate on the TBEB board, which then passes the signals to the TCEB for logic processing and routing to the control processors.
Q: How does the "G1A" revision affect compatibility with older Mark V systems?
A: The "G1A" indicates a standard functional group. It is compatible with most Mark V configurations that require a TCEB expansion. However, we recommend verifying your system's current hardware revision in the unit's original elementary drawings to ensure matching timing constants in redundant cores.
Q: What is the most common cause of a "Diagnostic Alarm" on the TCEB?
A: Alarms typically stem from a loss of the 28V DC supply to the board or a ribbon cable integrity issue between the TCEB and the terminal board. If the controller reports an I/O mismatch, inspect the cable seating and verify the contact wetting voltage at the termination points.
