Brand New DS200TCTGG1A GE | Industrial Cold Junction Compensator

Product Overview

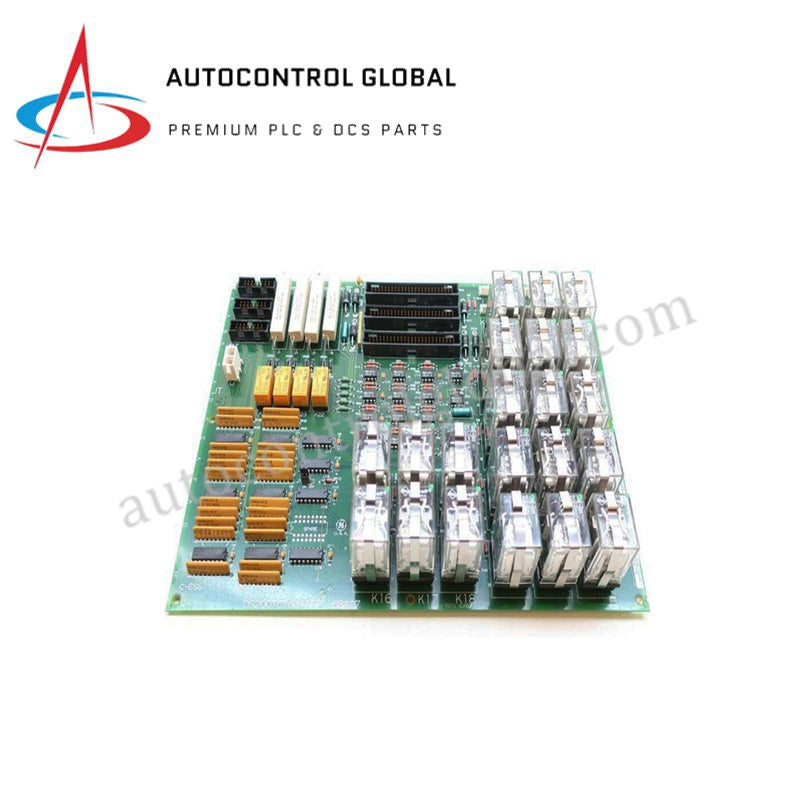

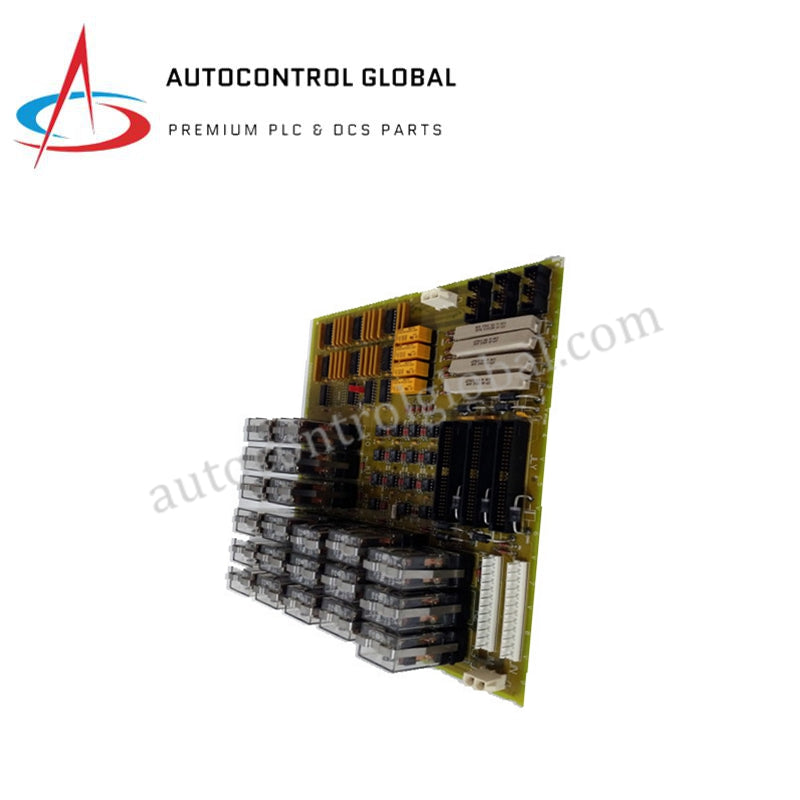

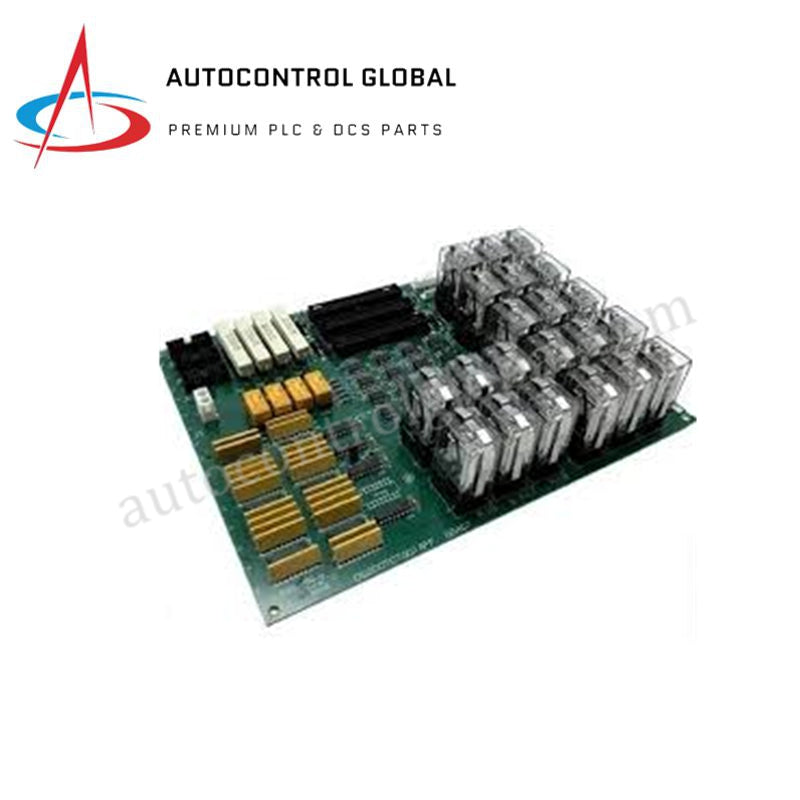

The GE DS200TCTGG1A (TCTG) serves as the primary Thermocouple Input Board for the Speedtronic™ Mark V turbine control system. It provides the high-precision interface required to terminate and process temperature signals from across the turbine string. This module accepts multiple isolated thermocouple types—including E, J, K, and T—converting low-millivolt thermal data into digital intelligence for monitoring and over-temperature protection. By integrating onboard RAM and specialized signal conditioning, the TCTG board ensures the control rack receives accurate, stabilized data essential for exhaust gas temperature (EGT) averaging and bearing protection.

Condition: 100% Brand New, Original Factory Packing.

Technical Specifications

The DS200TCTGG1A features dedicated cold junction compensation circuitry to maintain measurement integrity across varying ambient cabinet temperatures.

Engineering Advantages

• Integrated Cold Junction Compensation (CJC): The TCTG board utilizes specialized onboard sensors to measure the temperature at the terminal blocks. It automatically compensates for the "cold" junction voltage, ensuring the Mark V system calculates the absolute temperature of the turbine components with laboratory-grade precision.

• TMR Trip Protection Integration: In Triple Modular Redundant (TMR) architectures, this board fans out thermocouple data to the R, S, and T cores. This allows the system to execute "voting" logic on exhaust temperature spreads, preventing a single sensor failure from causing a nuisance trip while maintaining a robust safety envelope.

• Multi-Input/Output Versatility: Beyond simple monitoring, the DS200TCTGG1A incorporates onboard RAM and logic to handle complex temperature-based trip parameters. It processes high-speed thermal transients, allowing the turbine to react to flame-out or over-temperature events within milliseconds.

• Advanced Signal Hardening: Every thermocouple channel features dedicated filtering and surge suppression. These components neutralize electromagnetic interference (EMI) generated by nearby high-voltage ignition systems or motors, providing clean, jitter-free data to the TCQC core boards.

• Simplified Rack Integration: The board interfaces directly with the DS200TCQCG1A Analog I/O Core Board via high-density ribbon cables. This modular connectivity reduces field wiring complexity and ensures that sensor data remains isolated from the main control backplane until fully conditioned.

FAQs

Q: Does the DS200TCTGG1A require specific hardware jumpers for thermocouple types?

A: Yes. You must configure the onboard jumpers to match the specific thermocouple type (K, J, E, or T) used at your site. Using incorrect jumper settings will lead to significant temperature measurement offsets and potential false trips.

Q: What is the difference between the G1A and the G1AFF versions?

A: The "AFF" suffix represents a specific revision level. While the DS200TCTGG1A is the functional base module, the G1AFF revision includes updated components for improved thermal stability. GE designs these boards to be backward compatible within the Mark V platform.

Q: Why does the shipping weight reflect 3.00 lbs if the board is compact?

A: The 3.00 lbs shipping weight accounts for the high-durability industrial protective packaging required to safeguard the sensitive onboard RAM and millivolt-level processing components during international transit.

Q: Can this board be used in a Simplex (non-redundant) system?

A: Yes. Despite being "TMR Compatible," the DS200TCTGG1A operates effectively in Simplex configurations. In such cases, it routes data to a single control core rather than the R/S/T triad.
