Brand New Honeywell 51309542-175 Analog Interface Module

Product Overview

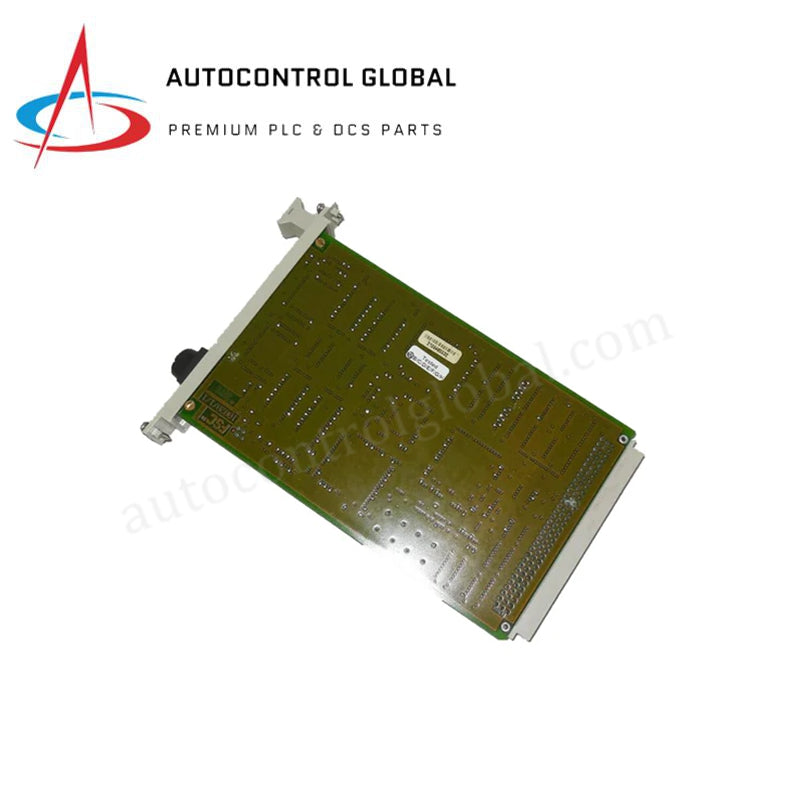

The Honeywell MC-THAO11 (Part Number 51309542-175) serves as a high-integrity Analog Output Field Termination Assembly (FTA) designed for the Honeywell Experion PKS and TDC distributed control platforms. This module provides a secure and reliable physical interface to drive 11 independent field devices, such as control valves, actuators, and signal conditioners. We supply this unit as 100% brand new and factory-original, ensuring that your process control architecture maintains laboratory-grade precision. By converting controller digital commands into accurate 4-20mA or 0-10VDC analog signals, the MC-THAO11 eliminates data jitter and ensures consistent performance in critical automation loops across refinery, power, and pharmaceutical facilities.

Technical Specifications

The MC-THAO11 manages multi-channel analog distribution through the following industrial parameters:

Engineering Advantages

• Optimized Signal Isolation: Every channel in the MC-THAO11 features independent galvanic isolation. This hardware barrier prevents ground loops and electrical interference from migrating between field devices. It also protects the primary I/O processor from field-side surges, ensuring that a fault on one valve actuator does not compromise the remaining 10 outputs.

• Extended Field Drive Strength: The module supports current loads up to 750 Ω. This high drive capacity allows the MC-THAO11 to maintain a stable 4-20mA signal over long cable runs without requiring external boosters or signal conditioners, simplifying the wiring topology of large-scale plant layouts.

• Deterministic Real-Time Control: Utilizing high-speed 12-bit D/A conversion, the module ensures that command changes from the controller reach the field device with minimal latency. This deterministic response is essential for fast-acting loops like turbine governors and pressure-relieving systems where millisecond accuracy is vital.

• Seamless Legacy Integration: Designed for both modern Experion PKS and legacy TDC 3000 systems, the MC-THAO11 offers a "plug-and-play" solution for system expansions or maintenance. The assembly mounts easily into standard Honeywell racks, utilizing factory-keyed connectors to eliminate the risk of mis-wiring during installation.

FAQs

• Does the MC-THAO11 support redundant configurations?

  Yes. You can install the MC-THAO11 in redundant pairs within compatible Honeywell I/O racks. In this configuration, the secondary module remains in a hot-standby state, ready to take control immediately if the primary module detects an internal hardware failure.

• What is the primary difference between the MC-THAO11 and higher-density cards like the MC-GHAO21?

  The MC-THAO11 provides 11 channels of high-reliability output specifically for sites where lower-density isolation is preferred or where rack space dictates a smaller channel count per termination board.

• Can I mix voltage and current signals on the same card?

  Yes. You define the specific output signal (0-10VDC or 4-20mA) for each channel via the Honeywell configuration software. This allows you to manage different types of field equipment from a single MC-THAO11 board.
