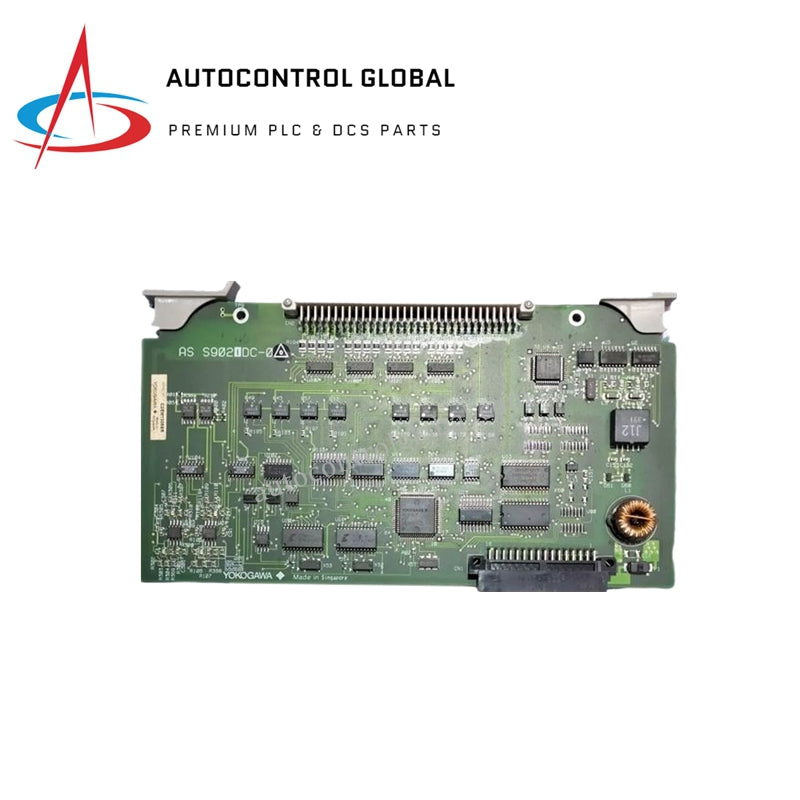

Brand New YOKOGAWA AMM22 Multiplexer Input Module In Stock

Product Overview

The Yokogawa AMM22 is a high-performance multiplexer input module designed to manage and convert multiple analog input signals with high accuracy and speed. Ideal for process control systems, industrial automation, and data acquisition systems, the AMM22's flexibility and speed make it a versatile choice for applications requiring efficient signal processing. The module supports sequential A/D conversion of 4 or 8 input points, ensuring rapid and reliable data acquisition.

Technical Specifications

• Conversion Speed: 50 μs per point (high-speed data acquisition)
• Input Channels:
  • 4 differential signal inputs
  • 8 differential signal inputs (configurable)
• Input Signal Ranges:
  • Voltage: 0 to 5V, 1 to 5V, -10 to 10V, 0 to 10V DC
  • Current: 0 to 20mA DC, 4 to 20mA DC
• Multiplexing: Sequential A/D conversion of 4 or 8 input points
• Isolation: Input terminals are isolated from the internal circuit via photocouplers
• Configurable Conversion Cycle: Selectable from 50 μs to 100 ms
• Signal Processing Features:
  • Scaling
  • Filtering
• Dimensions: 5.0" x 1.0" x 8.0" (12.7 cm x 2.5 cm x 20.3 cm)
• Weight: 0.2 kg (6.1 oz)

Features

• High-Speed Data Acquisition: With a conversion speed of 50 μs per point, the AMM22 ensures rapid and accurate signal conversion.
• Flexible Channel Configuration: Supports 4 or 8 differential signal inputs, offering adaptability for various application needs.
• Wide Input Signal Range: Compatible with a broad range of voltage and current signals, enhancing its versatility in different environments.
• Signal Isolation: Photocouplers provide isolation between input terminals and the internal circuit, protecting against electrical interference and ensuring reliable operation.
• Configurable Conversion Cycles: Users can select conversion cycles from 50 μs to 100 ms, optimizing performance for specific requirements.
• Advanced Signal Processing: Features scaling and filtering capabilities to improve signal quality and measurement accuracy.
• Compact Design: Small form factor simplifies installation and reduces space requirements in control panels.
• Robust Performance: Built to handle demanding industrial applications, ensuring continuous and reliable operation in challenging conditions.
