Channel Isolated Voltage Monitor RH914TD Foxboro FBM207

Product Overview

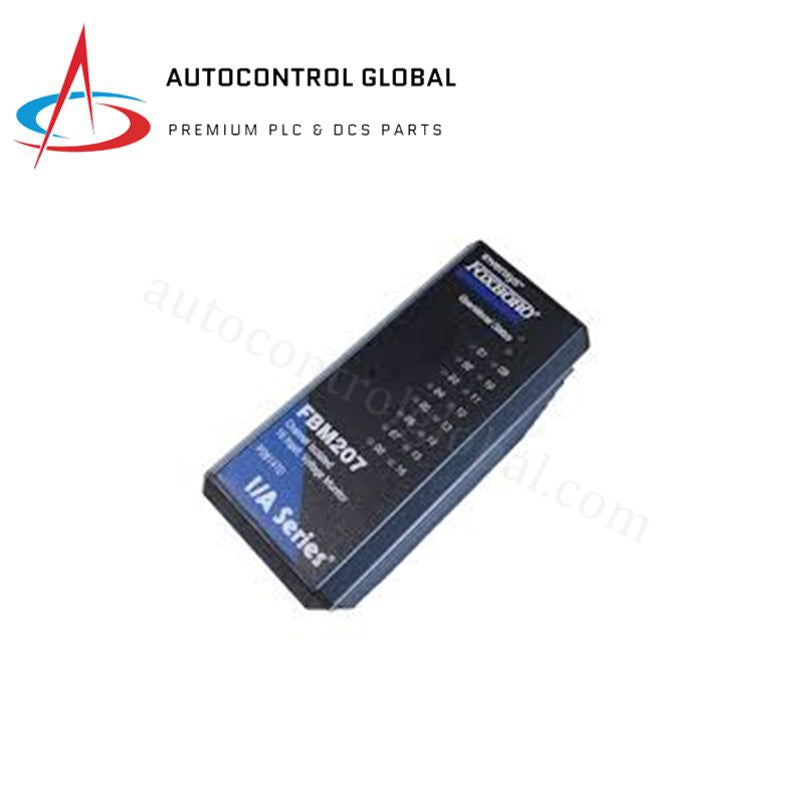

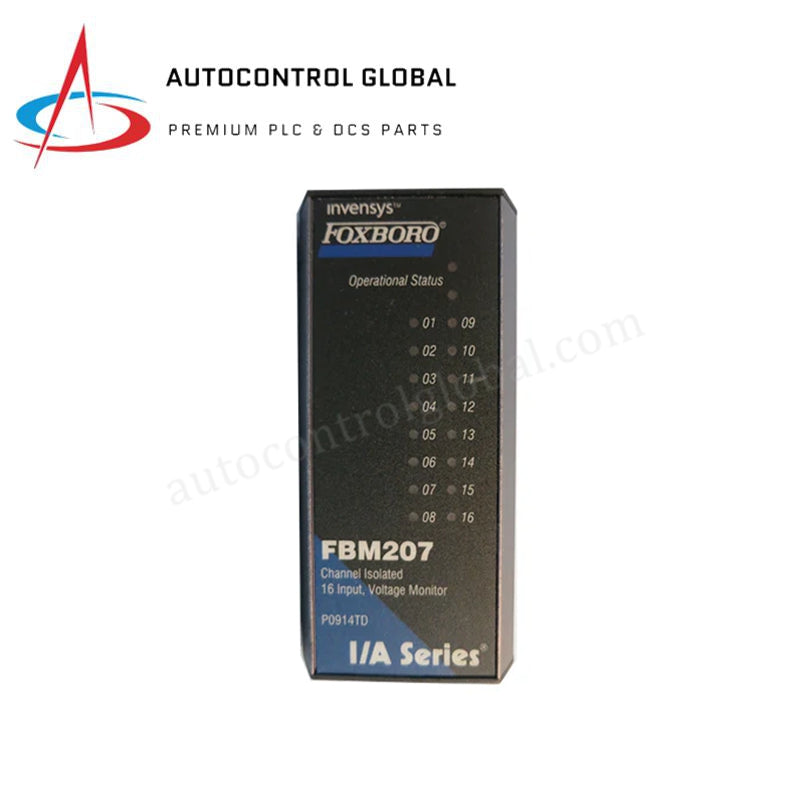

The Foxboro FBM207 (Part Number: P0914TD) functions as a high-density, 16-channel discrete input and voltage monitoring interface for the Foxboro I/A Series Distributed Control System (DCS). This module captures critical digital field signals from switches, relays, and other contact-sensing devices to provide real-time status updates to the control processor. It handles a wide variety of industrial voltage levels, including high-voltage AC/DC applications, while maintaining total signal integrity. We supply this module as 100% Brand New and Original, ensuring your interlock systems and alarm monitoring loops meet strict factory performance standards.

Technical Specifications

Engineering Advantages

• High-Voltage Channel Isolation: The P0914TD provides robust galvanic isolation (up to 1500 V AC) for every individual channel. This protects the internal DCS Fieldbus from field-side electrical surges and eliminates cross-channel interference, even when monitoring high-voltage 240 V AC circuits.

• Precision Pulse Detection: With a frequency response of up to 250 Hz, the FBM207 captures rapid discrete events without missing pulses. This capability makes it the preferred choice for sequence-of-events (SOE) recording and high-speed interlock logic.

• Configurable Digital Filtering: The module includes user-definable input filtering (1–255 ms). This allows engineers to suppress contact chatter and electrical noise in environments with heavy switchgear, ensuring only valid state changes trigger system logic.

• Redundant Fieldbus Security: The P0914TD communicates through dual redundant Fieldbus paths. If one communication path sustains damage or interference, the module automatically utilizes the secondary path to maintain continuous data flow to the control processor.

• Rugged Industrial Hardening: Every unit carries an ISA Class G3 rating. The module withstands corrosive atmospheres, high humidity, and airborne contaminants common in oil and gas refineries and chemical processing plants.

FAQs

Does the FBM207 P0914TD support dry contact inputs?

Yes. The P0914TD handles both voltage monitoring and dry contact sensing. When used with the appropriate termination assembly, the module provides the necessary wetting current to monitor mechanical switch and relay positions.

Can I use this module for Sequence of Events (SOE) applications?

Absolutely. The module’s fast response time (<10 ms) and high frequency response (250 Hz) allow for precise timestamping of discrete events, which is essential for root-cause analysis in safety-critical systems.

Is the FBM207 P0914TD hot-swappable?

Yes, depending on your baseplate configuration. The FBM207 supports hot-swapping, allowing maintenance teams to replace the module without removing field wiring or powering down the entire baseplate, minimizing process downtime.

What is the difference between this and non-isolated modules?

Non-isolated modules often share a common ground, which can lead to system-wide failures if a ground fault occurs. The P0914TD features channel-to-channel isolation, ensuring that a fault on one input remains localized and does not affect the other 15 channels or the DCS backplane.
