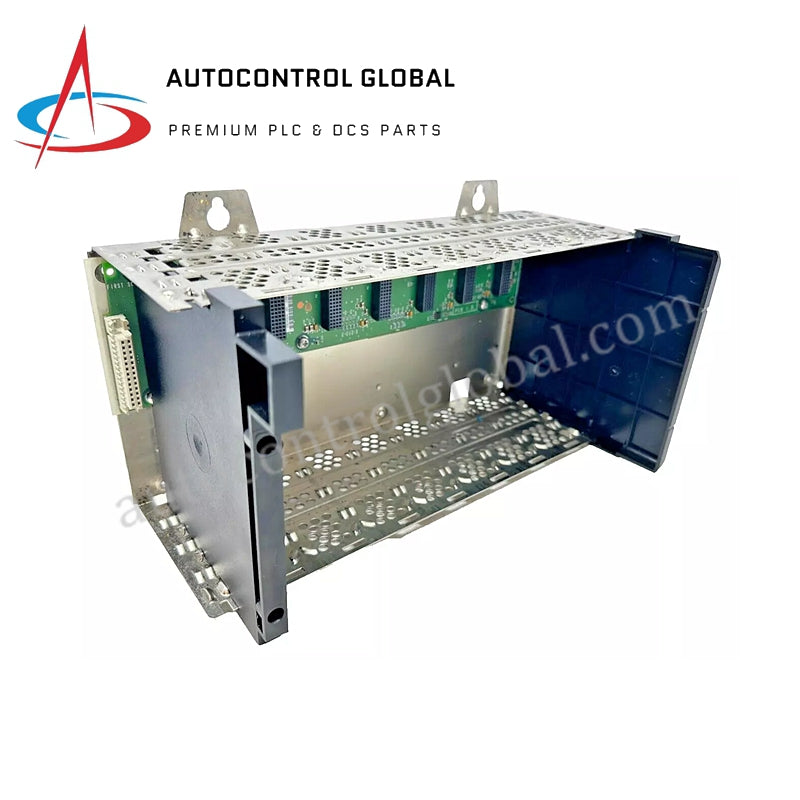

Chassis 1756-A7 Allen-Bradley ControlLogix
Manufacturer: Allen-Bradley
-
Part Number: 1756-A7
Condition：New with Original Package
Product Type: Chassis
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The Allen-Bradley 1756-A7 is a 7-slot ControlLogix chassis that provides high-density backplane support for ControlLogix modules, ideal for scalable and modular industrial automation applications.
Power Specifications
-
Backplane Current @ 1.2VDC: 1.5 A
-
Backplane Current @ 3.3VDC: 4 A
-
Backplane Current @ 5.1VDC: 15 A (chassis) / 6 A (slot)
-
Backplane Current @ 24VDC: 2.8 A
Environmental Conditions
-
Operating Temperature (Series B): 0°C to +60°C (+32°F to +140°F)
-
Operating Temperature (Series C): -25°C to +60°C (-13°F to +140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Physical Characteristics
-
Number of Slots: 7
-
Orientation: Horizontal
-
Mounting Tabs: 4
-
Power Dissipation: 4.5 W
-
Minimum Cabinet Size (HxWxD): 50.8 × 60.9 × 20.3 cm
-
Dimensions: 20 × 24 × 8 inches
