Overview

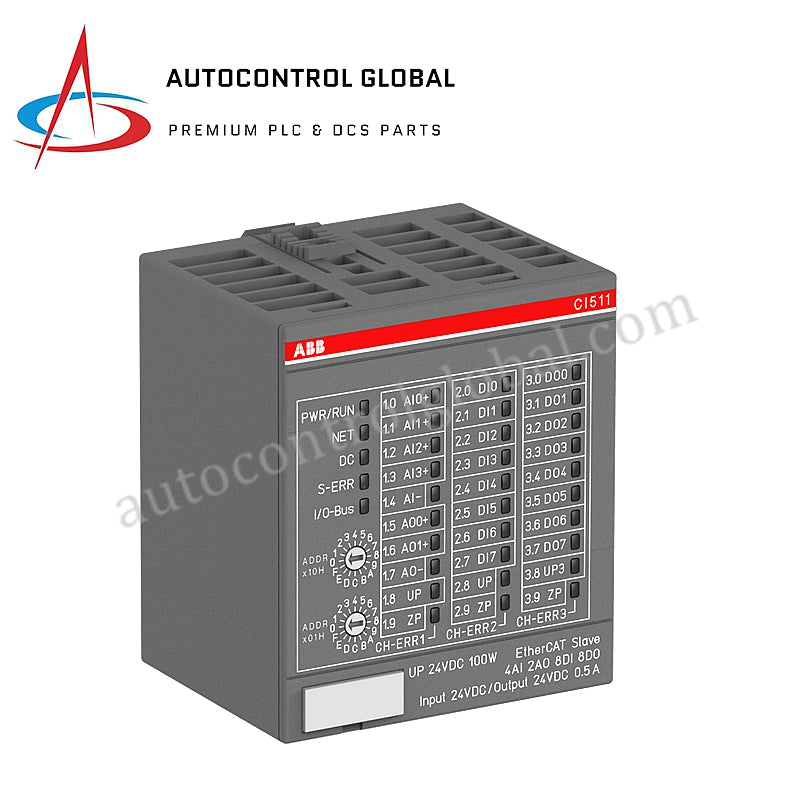

The CI511-ETHCAT is an EtherCAT slave interface module designed for ABB's S500 series. It offers a range of I/O functions, including 4 analog inputs, 2 analog outputs, 8 digital inputs, and 8 digital outputs, with cam switch functionality. The module is extendable by up to 10 additional I/O modules.

Specifications

• Product ID: 1SAP220900R0001
• Part Number: CI511-ETHCAT
• Functionality:
  • EtherCAT slave
  • 4 x Analog Inputs: U, I, RTD
  • 2 x Analog Outputs: U, I
  • 8 x Digital Inputs: 24VDC
  • 8 x Digital Outputs: 24VDC, 0.5A
  • Cam switch functionality
  • Extendable by up to 10 I/O modules
• Input Voltage: 24 V DC
• Supply Voltage: 20.4 … 28.8 V DC
• Output Voltage: 20.4 … 28.8 V DC
• Output Current: 0.5 A
• Degree of Protection: IP20
• Input Current: 5 mA
• Delay Time: 0.1 … 32 ms

Dimensions & Weight

• Net Weight: 0.138 kg
• Depth: 62 mm
• Height: 76 mm
• Width: 67.5 mm

Ordering Information

• Invoice Description: Interface module, EtherCAT slave, 4 AI (U, I, RTD), 2 AO (U, I), 8 DI (24VDC), 8 DO (24VDC 0.5A), Cam switch functionality
• Made to Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: piece

Additional Information

• Product Main Type: CI511
• Product Name: Distributed Automation I/Os
