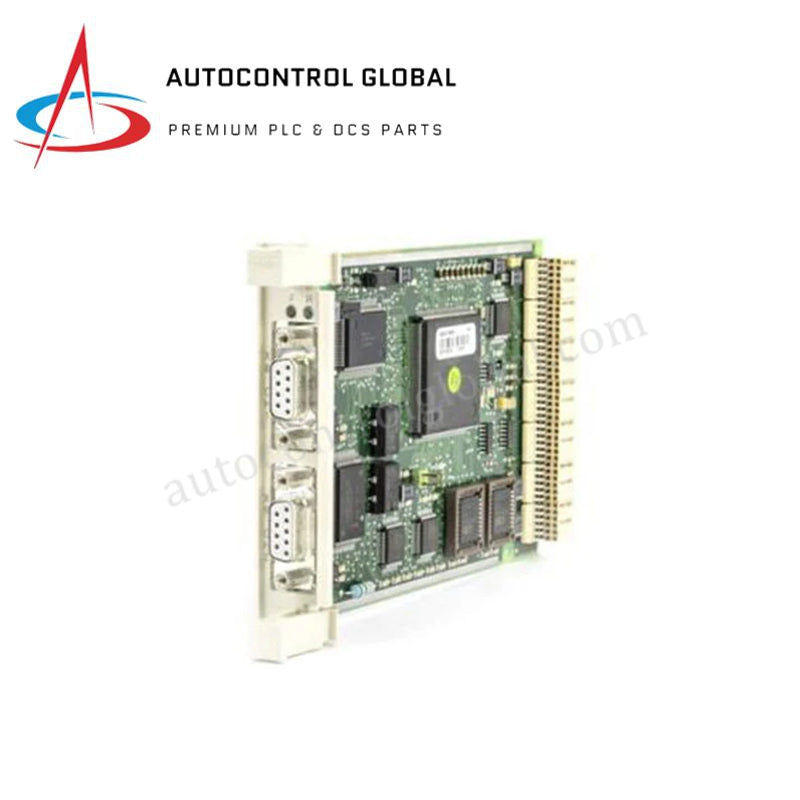

CI532V04 ABB Robotics and Substation Automation Interface

Product Overview

The CI532V04 is a high-performance RCOM (Remote Communication) interface module specifically engineered for the ABB Advant Controller and AC 400/AC 450 automation platforms. This module acts as a specialized communication gateway, enabling deterministic peer-to-peer data exchange between distributed controllers and central supervision systems over long distances. The CI532V04 is critical for maintaining signal integrity in power distribution and substation automation, where real-time monitoring and high-availability protection logic are non-negotiable. Its modular design allows for rapid integration into existing ABB relay and control racks, providing a reliable bridge for process signals in harsh industrial electromagnetic environments.

Detailed Technical Specifications

• Manufacturer: ABB

• Model Designation: CI532V04

• Series: Advant Controller / CI Control Interface Series

• Device Type: Remote Communication (RCOM) Interface Module

• Function: Signal acquisition and communication bridge for automation/protection systems

• Interface Protocol: RCOM over RS-232C (V.24)

• I/O Channels: Configurable digital and analog processing capabilities

• Transmission Rate: Supports standard asynchronous speeds optimized for RCOM telemetry

• Power Supply: 24–48 V DC or 100–240 V AC (Specific to hardware revision)

• Operating Temperature: -20°C to +60°C (-4°F to +140°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Mounting: Subrack, DIN-rail, or panel mount compatible

• Housing: Industrial-grade protective enclosure

• Dimensions: 12.7 cm × 2.5 cm × 25.4 cm (Board level) / 160 mm × 120 mm × 90 mm (Module)

• Weight:0.45 kg

• Country of Manufacture: Sweden

• Ingress Protection: IP20 standard

• Certifications: CE, UL, RoHS compliant
