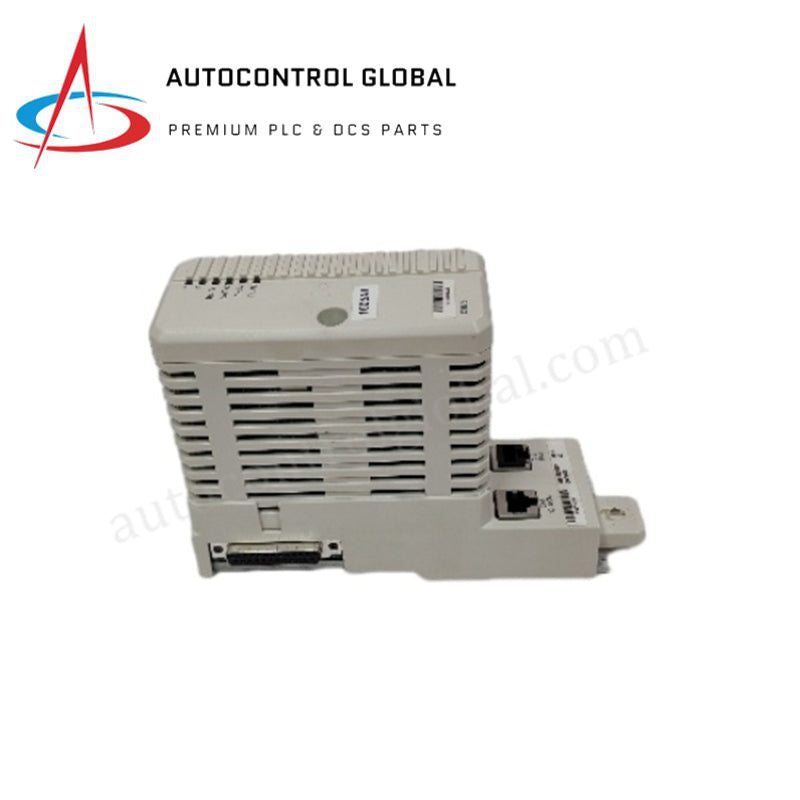

CI820V | ABB | System 800xA Communication Interface Module

Product Description

System Communication and Network Architecture

The CI820V (Part Number: CI820V) is a high-performance Profibus-DP Communication Interface module specifically engineered for the ABB AC 800M controller family within the System 800xA architecture. Functioning as a high-speed bridge, the CI820V (Model: CI820V) enables the AC 800M CPU (such as PM861 or PM864) to interface seamlessly with Profibus-DP V0 and V1 fieldbus networks. This module is critical for distributed control scenarios, allowing the central controller to manage remote I/O stations, frequency converters, and intelligent field devices with deterministic timing. By offloading communication overhead from the main CPU, it ensures that process control logic remains responsive even in high-traffic network environments.

Detailed Technical Specifications

The CI820V (CI820V) is designed for high-density data exchange and industrial-grade reliability.

• Manufacturer: ABB

• Model Designation: CI820V

• System Compatibility: AC 800M Controller / System 800xA

• Protocol Support: Profibus-DP V0 / V1 (EN 50170 compliant)

• Data Throughput: Supports 9.6 kbps up to 12 Mbps (Auto-baud detection)

• I/O Capacity: Up to 244 bytes of input and 244 bytes of output data per slave

• Communication Interface: RS-485 via 9-pin Sub-D connector

• Power Requirements: 24 VDC (Typical consumption via backplane bus)

• Isolation: Galvanic isolation to protect internal controller logic from fieldbus transients

• Operating Temperature: -25 °C to +70 °C (-13 °F to 158 °F)

• Storage Temperature: -40 °C to +85 °C (-40 °F to 185 °F)

• Diagnostics: Triple LED status (Power, Run, Fault) and software-based reporting via Control Builder M

• Mounting Method: DIN rail mounting via TP830 Baseplate

• Protection Class: IP20 / IP30 (Module dependent)

• Dimensions: 132 mm x 105 mm x 52 mm

• Weight: 0.8 kg (1.76 lbs)
