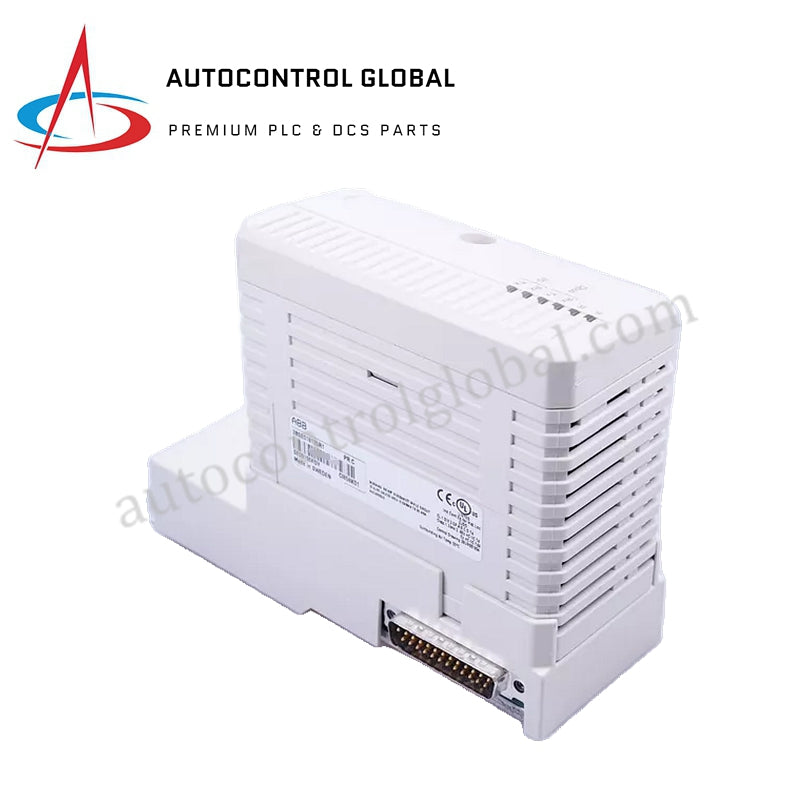

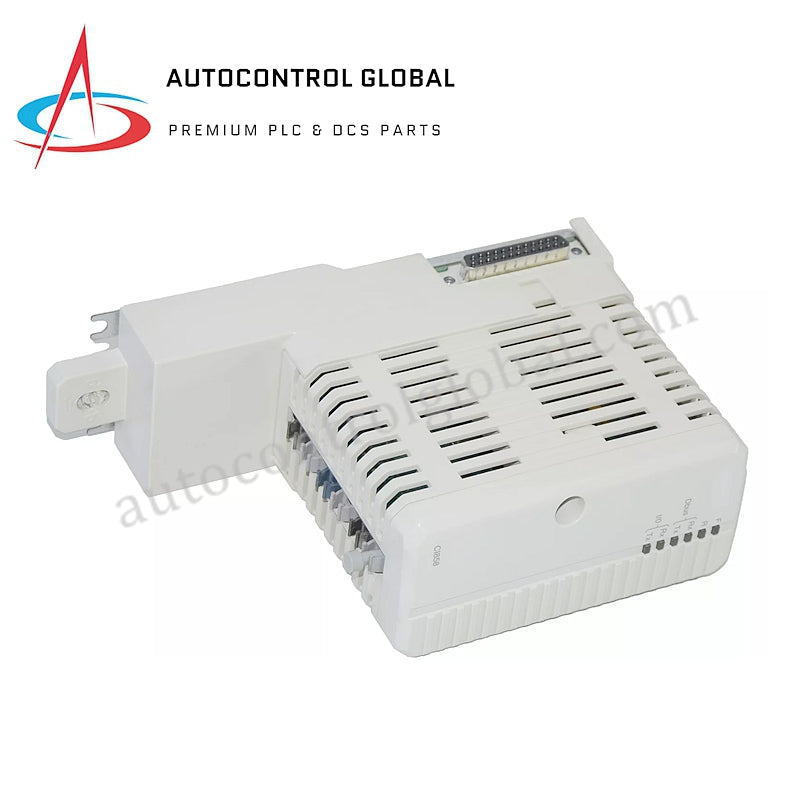

CI858 ABB AC 800M Communication Interface Unit

Description

CI858 is an AC 800M Communication Interface Unit, designed to support ABB’s DriveBus communication protocol for industrial automation applications.

Communication Specifications

• Communication Protocol: ABB's DriveBus
• Master or Slave: Master
• Transmission Speed: 8 Mbit/s
• Line Redundancy: No
• Module Redundancy: No
• Hot Swap: Yes
• Used with HI Controller: No
• Max Units on CEX Bus: 2
• Connector: Optical
• 24V Consumption (Typical): 200 mA

Environmental & Certification

• Operating Temperature: +5 to +55°C (+41 to +131°F)
• Storage Temperature: -40 to +70°C (-40 to +158°F)
• Corrosion Protection: G3 compliant to ISA 71.04
• Protection Class: IP20 (EN60529, IEC 529)
• CE Marking: Yes
• Marine Certificates: ABS, BV, DNV-GL, LR
• RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 59 mm (2.3 in.)
• Height: 185 mm (7.3 in.)
• Depth: 127.5 mm (5.0 in.)
• Weight (Including Base): 700 g (1.5 lbs)
