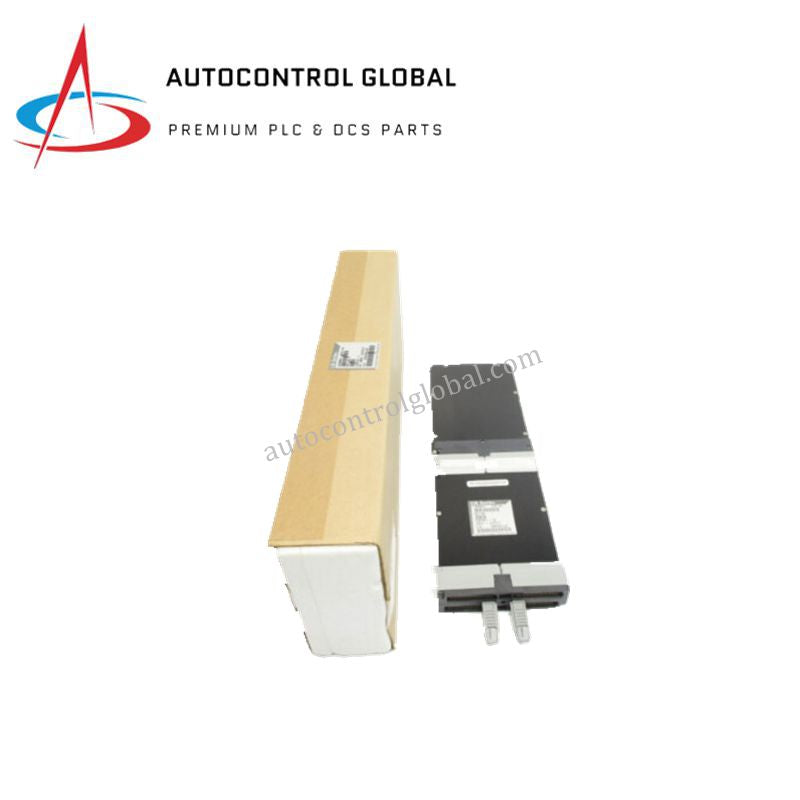

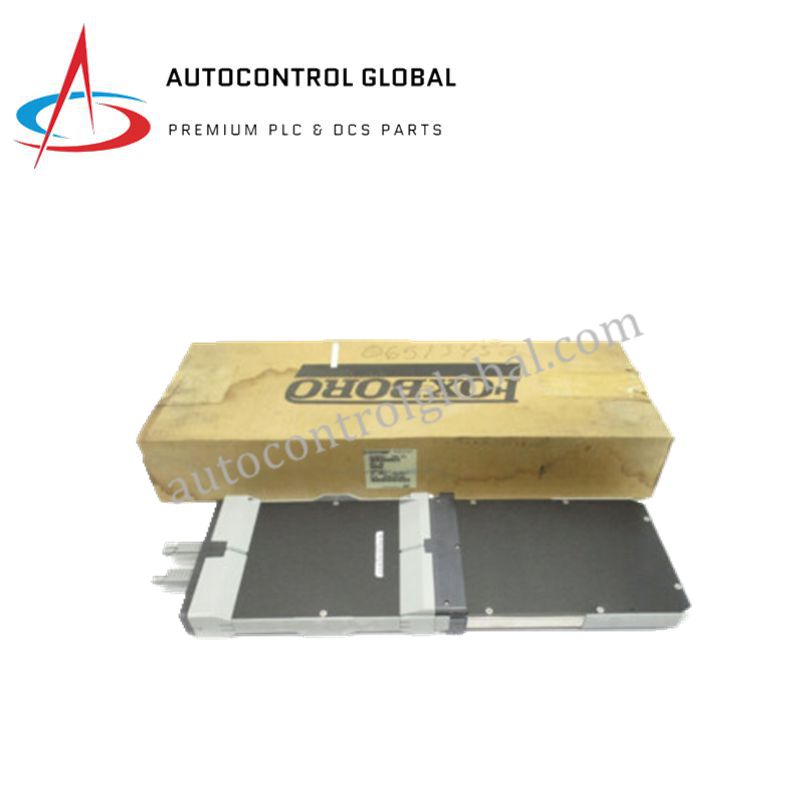

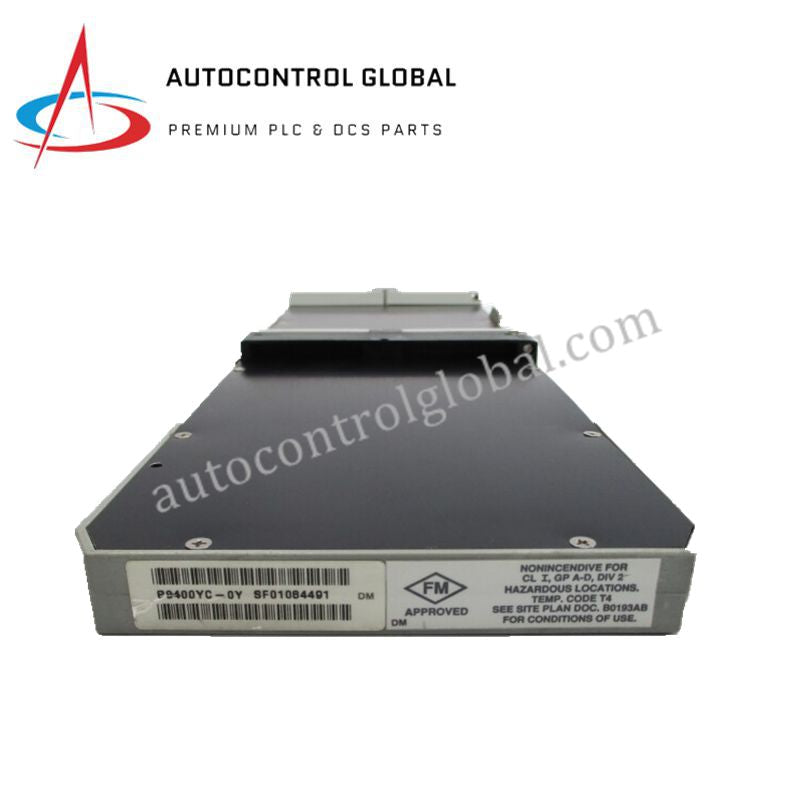

CM400YK FBM09 | FOXBORO Industrial Analog Input Module
Manufacturer: Foxboro
-
Part Number: CM400YK FBM09
Condition：New with Original Package
Product Type: Industrial Analog Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO CM400YK FBM09 | Analog Input Fieldbus Module
Overview
The FOXBORO CM400YK FBM09 is a rugged and precise Analog Input Fieldbus Module designed for the Foxboro I/A Series DCS. It acquires analog data from field instruments measuring temperature, pressure, flow, and level, converting these signals into digital values for reliable process control.
This module offers high accuracy, channel-to-channel isolation, and supports redundant configurations. Its compact, hot-swappable design allows seamless installation and maintenance without interrupting system operation. Ideal for industries such as chemical processing, power generation, pharmaceutical manufacturing, and oil & gas, the CM400YK FBM09 ensures precise monitoring and reliable control.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | CM400YK FBM09 |
| Function | Analog Input Fieldbus Module |
| Number of Channels | 8 isolated analog input channels |
| Input Signal Range | 4–20 mA standard analog signal |
| Input Impedance | >250 ohms |
| Accuracy | ±0.05% of span typical |
| Resolution | 16-bit ADC |
| Isolation | Channel-to-channel and channel-to-ground |
| Update Rate | Configurable scan intervals; typically sub-second |
| Power Supply | 24 V DC (supports redundant input) |
| Power Consumption | ≤ 5 W |
| Communication Protocol | HDLC Fieldbus |
| Mounting Type | DIN rail or modular baseplate |
| Operating Temperature | –20°C to +70°C (–4°F to +158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL, RoHS, IEC 61131-2 compliant |
FAQ
Q1: What is the main function of the CM400YK FBM09?
A1: It acquires analog signals from field instruments and converts them to digital values for process control.
Q2: How many analog input channels does this module support?
A2: The CM400YK FBM09 supports 8 isolated analog input channels.
Q3: What input signal range is compatible?
A3: It supports standard 4–20 mA analog signals.
Q4: Can this module operate with redundant power?
A4: Yes, it supports 24 V DC with redundant input for high availability.
Q5: Is it suitable for industrial environments?
A5: Yes, it operates in temperatures from –20°C to +70°C and high-humidity conditions.
Q6: How is the module installed?
A6: It mounts easily on DIN rails or modular baseplates.
