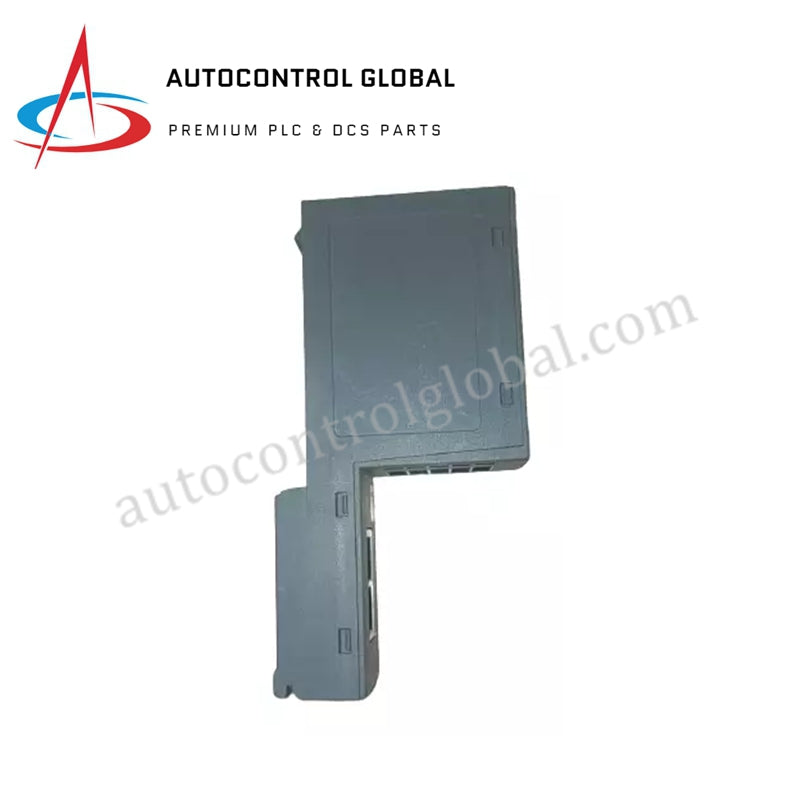

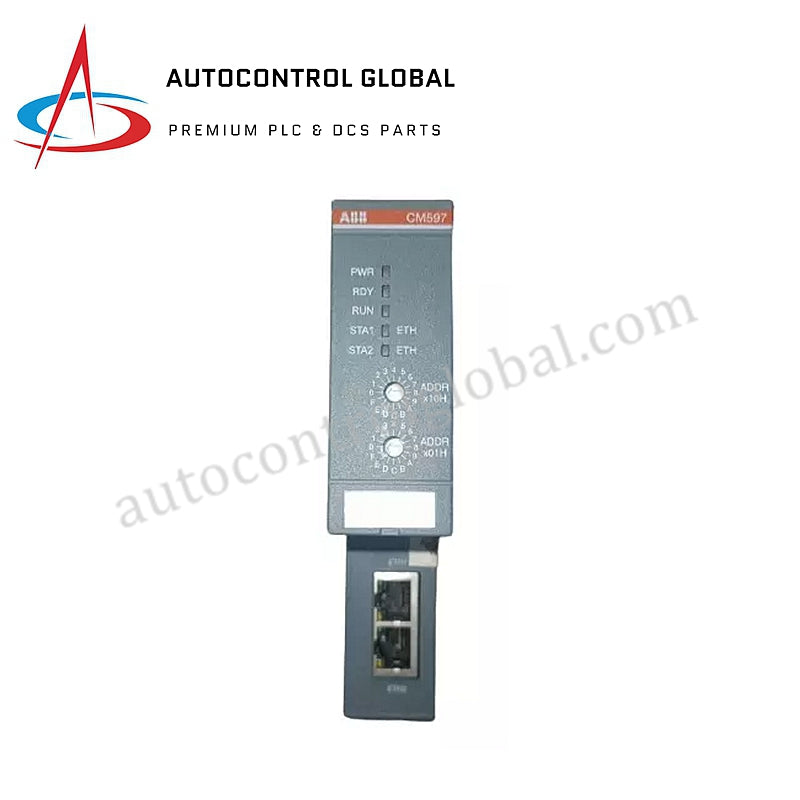

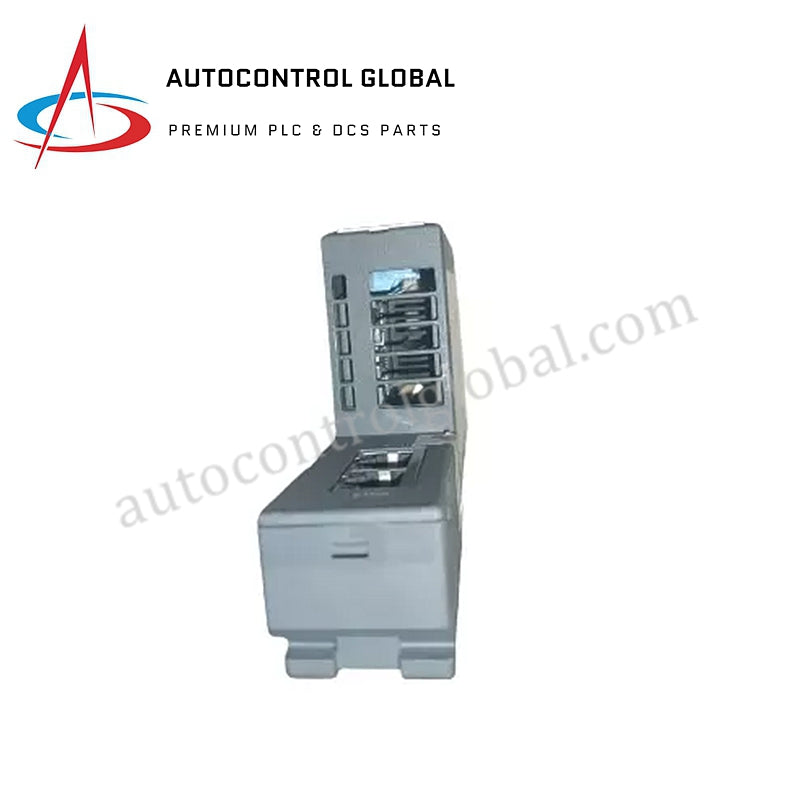

CM597-ETH | ABB Ethernet Communication Module
Manufacturer: ABB
-
Part Number: CM597-ETH
Condition：New with Original Package
Product Type: Ethernet Communication Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The CM597-ETH is an Ethernet communication module with integrated 2-port switch, offering TCP/IP and UDP/IP protocols, along with Modbus TCP and other standard communication protocols.
General Information
- Product Life Cycle Phase: Active
Key Features
- Field Bus: 2 x Ethernet
- Protocol: Ethernet TCP/IP, UDP/IP, Modbus TCP, ICMP (Ping), DNS, SMTP
- Connectors: 2 x RJ45 with integrated 2-port switch
- Processor: Hilscher netX100
- Transmission Rate: 10 Mbit/s or 100 Mbit/s
- Transmission Mode: Half or full-duplex, adjustable
- MAC Address: Configurable
Specifications
- Usable CPUs: PM57x, PM58x, PM59x
- Terminal Bases: All TB5xx
- Communication Interface: Dual-port memory, 16 kByte
- Power Supply: Powered via terminal base communication interface
- Current Consumption: 85 mA (typical)
- External RAM: 8 MByte
- External Flash Memory: 8 MByte
Indicators
- State Display: PWR, RDY, RUN, STA, ERR, 2 x LINK, 2 x ACT
- LED Indication: State via 5 LEDs
- Station Identification: Rotary switch (0...255)
Dimensions & Weight
- Weight: Approx. 170 g
