Product Description

Overview

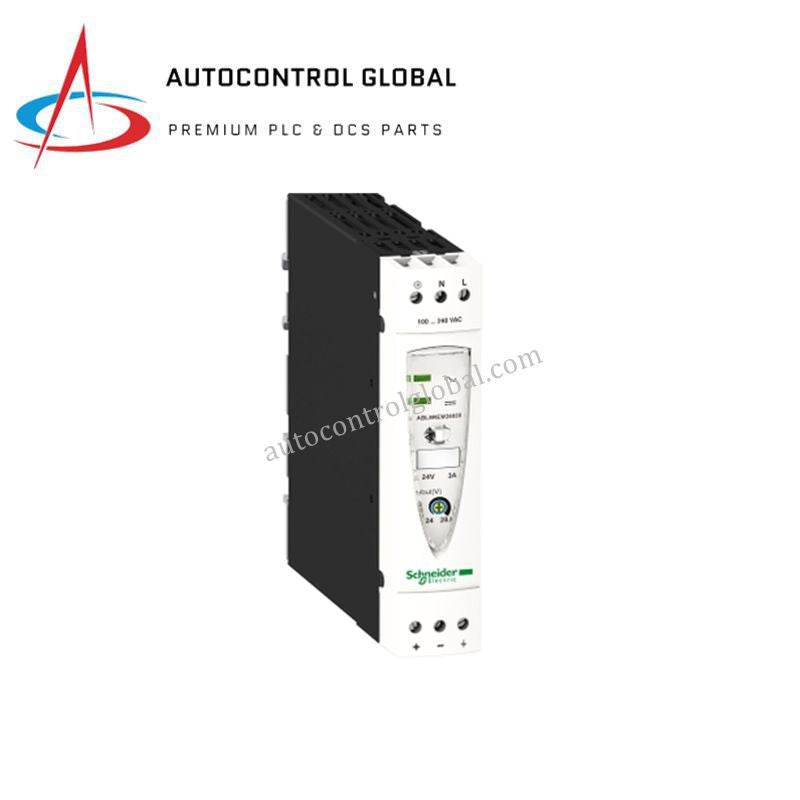

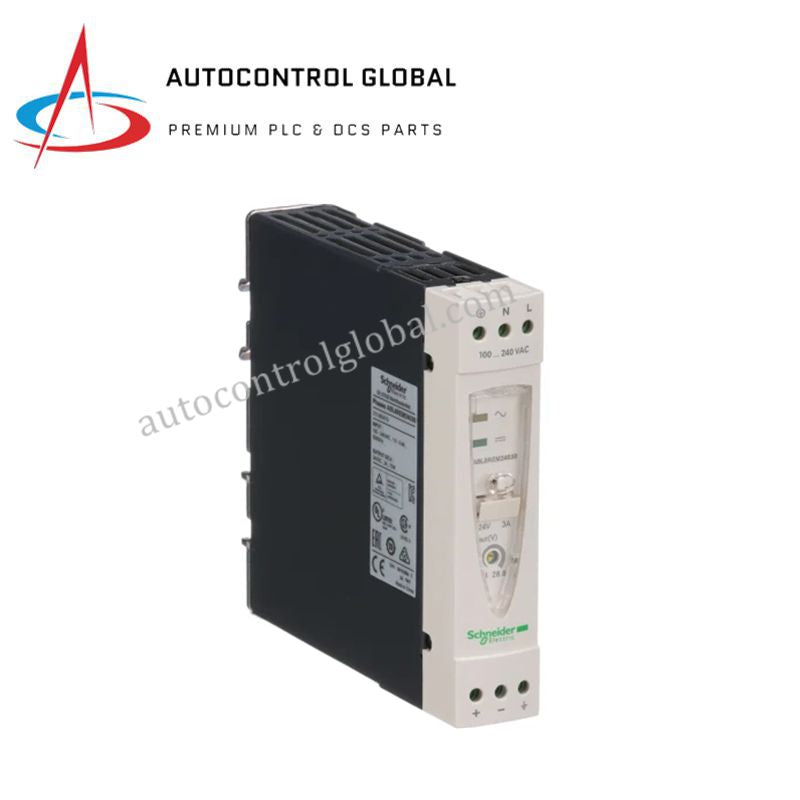

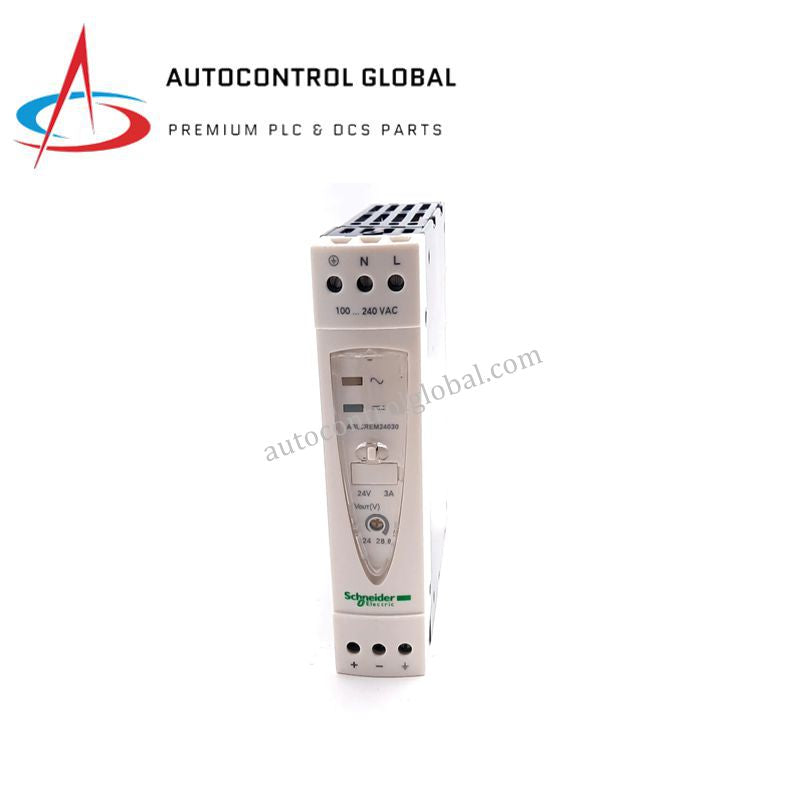

The Schneider Electric ABL8REM24030 is a compact regulated switch-mode power supply delivering 24 V DC output at 3 A. It is designed for industrial automation, process control, and energy systems, providing reliable power to PLCs, sensors, actuators, and other industrial devices. Moreover, its DIN rail mounting and 27 mm width enable easy installation in tight panel spaces. Despite being discontinued, its recommended replacement is the ABLS1A24031 model for continuous operations.

Technical Specifications

Parameter — Details
Product Type — Regulated switch-mode power supply
Nominal Input Voltage — 100–240 V AC (single or two-phase), 110–220 V DC
Input Voltage Limits — 85–264 V AC, 100–250 V DC
Network Frequency — 47–63 Hz
Inrush Current — 30 A
Power Factor (cos φ) — 0.65
Output Voltage — 24 V DC (adjustable 24–28.8 V)
Output Current — 3 A
Rated Power — 72 W
Output Protection — Short-circuit, overload, overvoltage, undervoltage
Efficiency — 85%
Operating Temperature — –20 to +45 °C (no derating), up to +60 °C with derating
Storage Temperature — –40 to +85 °C
Mounting Options — DIN rail or panel
Dimensions — Width: 27 mm, Depth: 120 mm, Height: 120 mm
Net Weight — 0.52 kg
Compliance — IEC 61131‑2, UL, CE, CSA
Commercial Status — Discontinued (end-of-commercialization: Dec 2020)
Replacement Model — ABLS1A24031 (24 V DC, 3.1 A)

FAQ

Q1: What is the rated output power of ABL8REM24030?
A1: It delivers 72 W continuous output at 24 V DC with a 3 A current.

Q2: Can it be mounted on DIN rails?
A2: Yes, it supports both DIN rail and panel mounting for flexible installation.

Q3: Does it have protection against short-circuit or overload?
A3: Yes, built-in protection with automatic reset safeguards connected devices.

Q4: Is the output voltage adjustable?
A4: Yes, output voltage can be adjusted from 24 to 28.8 V DC.

Q5: What is the replacement model for this discontinued unit?
A5: Schneider ABLS1A24031 is the recommended replacement model.
