CompactLogix 1769-OW8 Allen-Bradley Discrete Output Module

Description

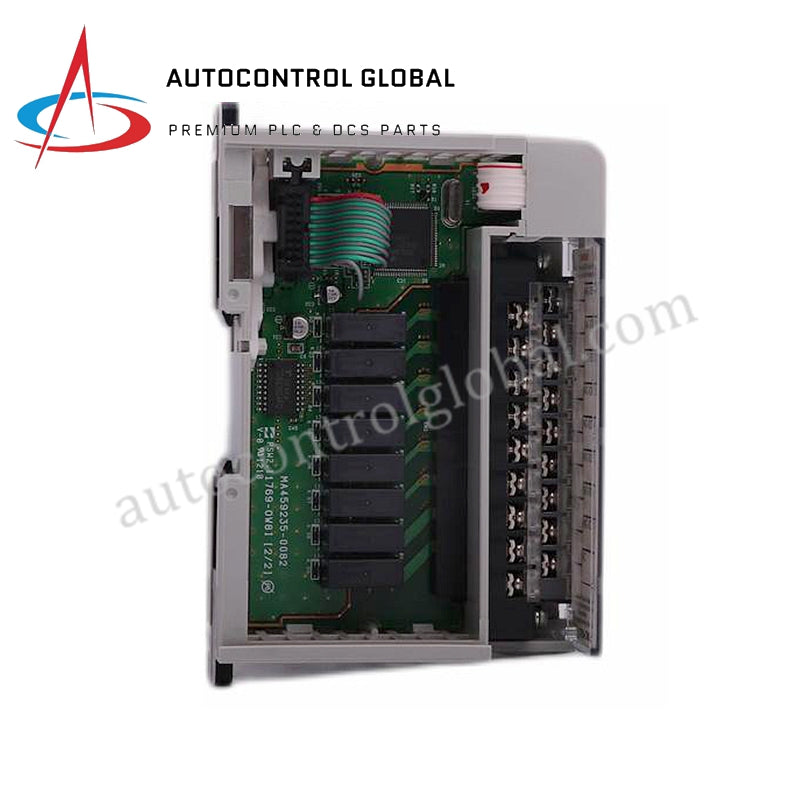

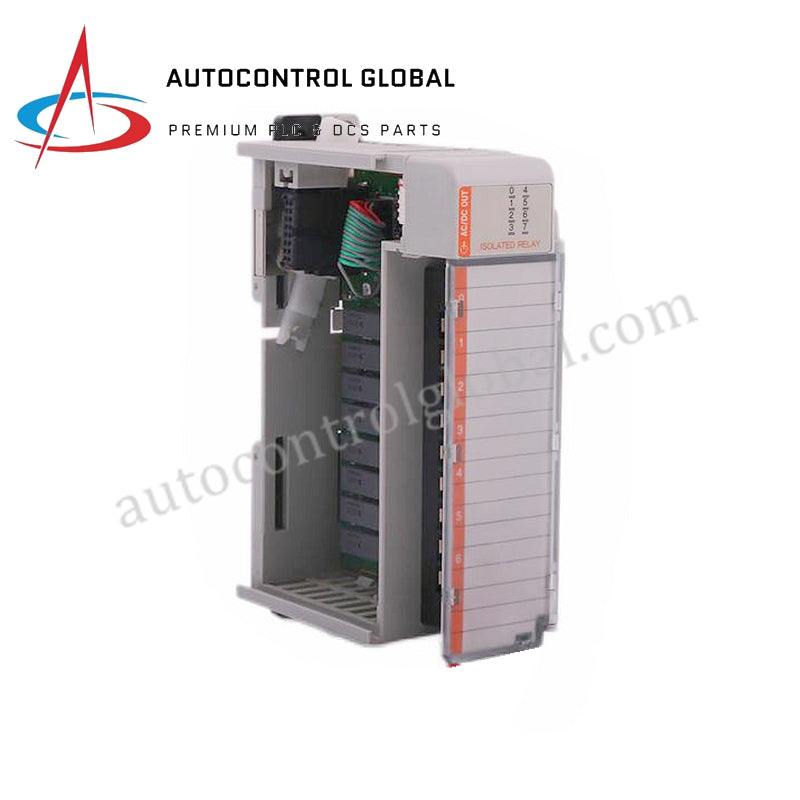

The Allen-Bradley 1769-OW8 is a CompactLogix discrete output module with eight relay outputs. It is designed for versatile AC/DC control applications and is compatible with MicroLogix 1500 and CompactLogix controllers.

Specifications

General

• Product line: CompactLogix

• Product type: Discrete Output Module

• Module type: Relay Output Module

• Number of outputs: 8

• Compatible controllers: MicroLogix 1500, CompactLogix

• Series: A and B

• Slot width: 1

Electrical

• Operating voltage range: 5 to 265 V AC, 5 to 125 V DC

• Input type: Relay Output (Normally Open)

• Signal delay, On: 10 ms

• Bus current draw @ 5.1 V: 125 mA

• Bus current draw @ 24 V: 100 mA

• Power dissipation: 2.83 Watts

Wiring

• Wire type: Copper, 90°C

• Solid wire size: 22 to 14 AWG

• Stranded wire size: 22 to 16 AWG

Physical

• Power supply distance rating: 8

• Communication cable: 8 Point

• Shipping weight: 2 lbs

• Shipping dimensions: 8 x 8 x 5 in
