Controller Communication Module ABB UBC717BE101 3BHE021887R0101
Manufacturer: ABB
-
Part Number: UBC717BE101 3BHE021887R0101
Condition：New with Original Package
Product Type: CPU Processors
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

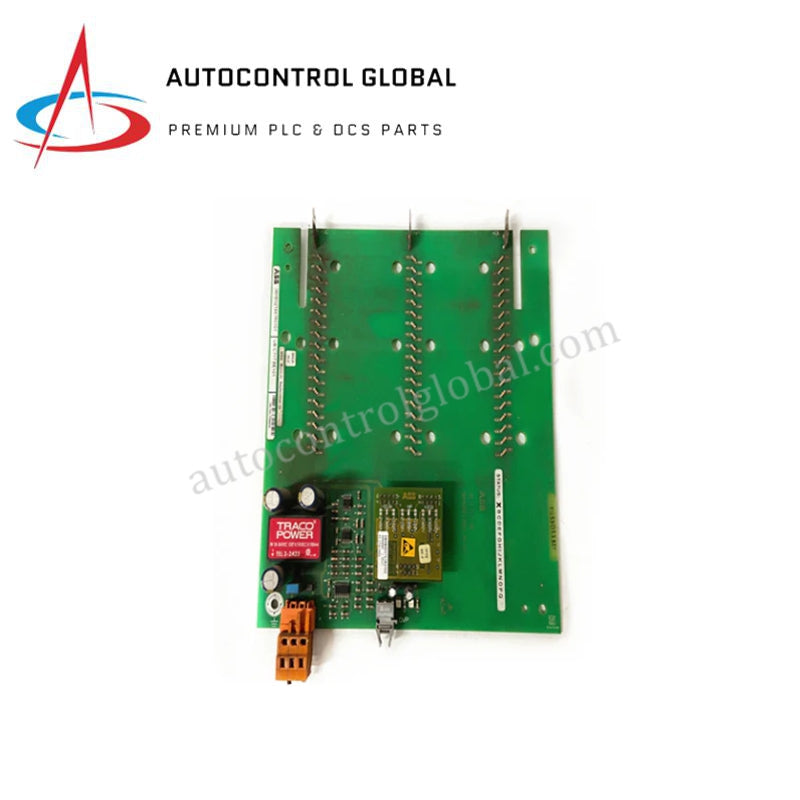

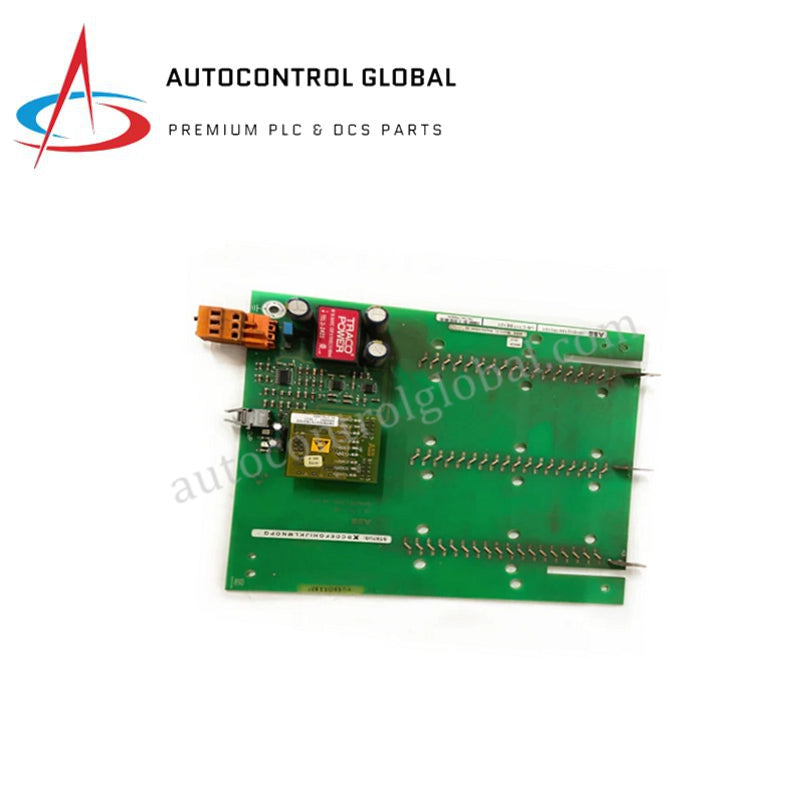

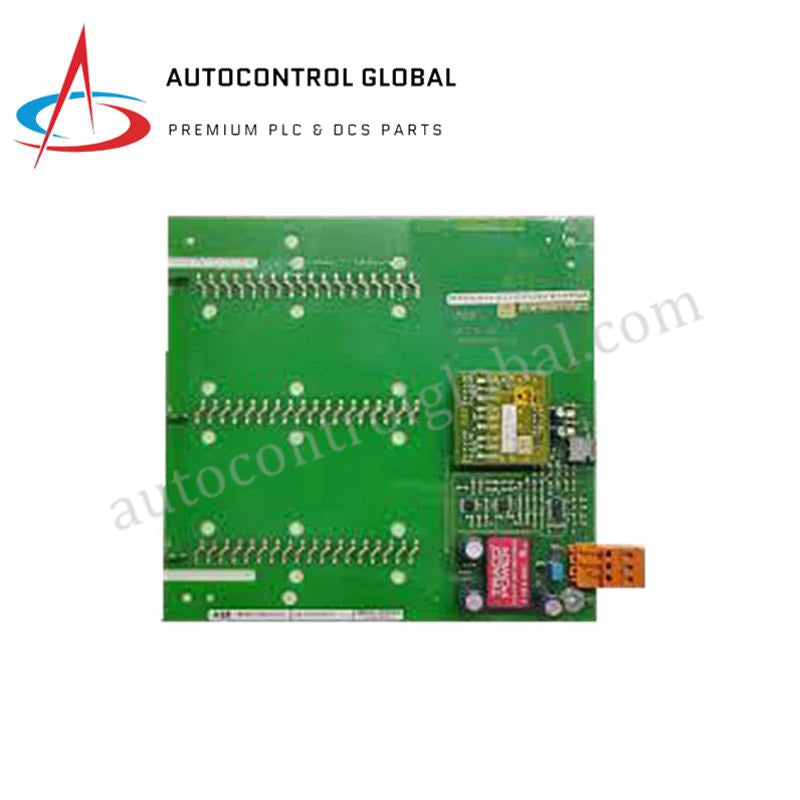

ABB UBC717BE101 Controller Module
The ABB UBC717BE101, also cataloged as the 3BHE021887R0101 Controller Module, operates as a dedicated hardware component for deterministic process control and subsystem communication within System 800xA DCS platforms.
Suffix Breakdown & Model Matrix
| Model Segment | Functionality |
|---|---|
| UBC717BE101 | Base platform identifier for controller and communication logic |
| 3BHE021887R0101 | Production identification and hardware revision code |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UBC717BE101 (3BHE021887R0101) |
| Brand | ABB |
| Origin | China |
| Weight | 0.65 kg |
| Dimensions | 155 x 125 x 85 mm |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | 12 W @ 24 VDC |
| MTBF | >500,000 hours |
ABB Industrial Control Characteristics
The UBC717BE101 module utilizes deterministic backplane bus communication to execute complex control algorithms within the AC 800M architecture. The hardware supports extensive I/O density scaling, allowing the module to interface with broad arrays of field devices while maintaining strict scan cycle timing. Technicians can leverage firmware flash compatibility to update communication stacks and control logic, ensuring seamless integration with existing System 800xA software revisions. Furthermore, the module implements high-speed processing for Ethernet and PROFIBUS protocols, maintaining signal integrity even when subjected to the high-EMI conditions typical of large-scale industrial control cabinets.
Frequently Asked Questions
Q: Does this module support hot-swapping during active system operation?
A: The UBC717BE101 supports hot-swap procedures when deployed in a redundant controller configuration, provided the system controller has been programmed to perform a controlled failover to the standby unit.
Q: How is the firmware updated for this controller?
A: Firmware is uploaded via the engineering workstation connected to the system communication bus; the module verifies the checksum of the binary file to ensure data integrity before writing to the onboard flash memory.
Field Installation Guidelines
- ESD Handling: Always utilize a grounded anti-static wrist strap before handling the circuit board to protect the onboard RISC processor and memory modules from electrostatic damage.
- Backplane Insertion: Align the module precisely with the cabinet guide rails. Apply firm, even pressure to the front faceplate to ensure the backplane connector pins seat correctly, then tighten the retaining screws to provide vibration resistance.
- Shielding: Terminate all communication cable shields at the designated cabinet grounding rail to suppress RFI/EMI interference. Ensure physical separation between signal communication lines and high-current AC power cables.
- Validation: Initiate the power-up sequence and observe the status LEDs on the faceplate. A successful boot sequence confirms that the processor has passed all internal diagnostic self-tests and established a network handshake with the primary controller.
