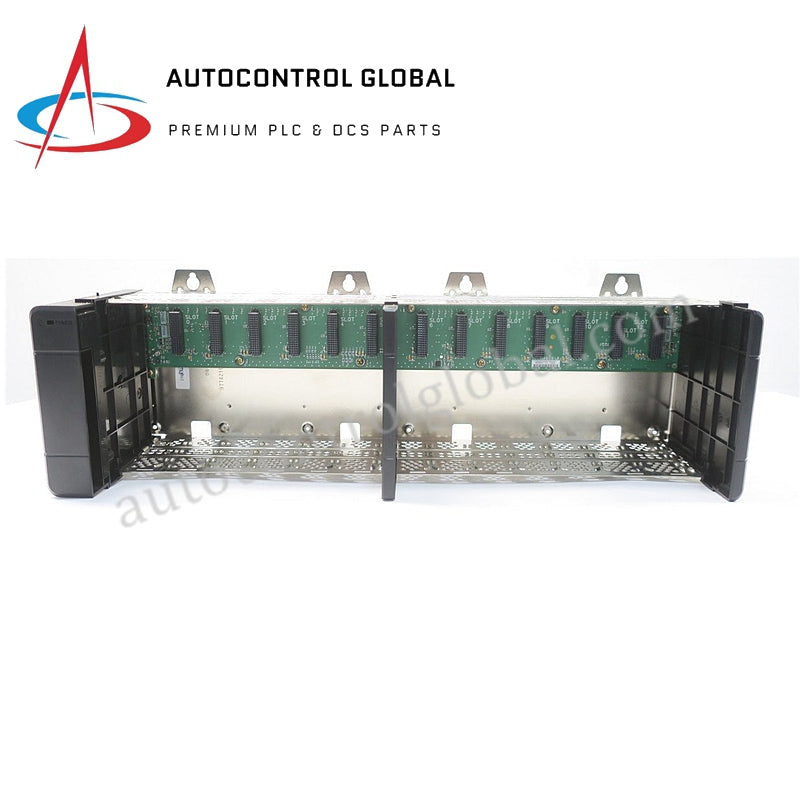

ControlLogix 1756-A13 Chassis Allen-Bradley

Description

• Part Number: 1756-A13

• Brand: Allen-Bradley

• Series: ControlLogix

• Module Type: Chassis

• Mounting: Panel Mount

• Orientation: Horizontal

• Enclosure: Open

Capacity & Electrical

• Slots: Thirteen (13)

• Backplane Current @ 1.2VDC: 1.5 A

• Backplane Current @ 3.3VDC: 4 A / 4 A

• Backplane Current @ 5.1VDC: 15 A / 6 A

• Backplane Current @ 24VDC: 2.8 A / 2.8 A

• Backplane Current (5VDC): 10 A

• Power Dissipation (Max): 5.4 W

Environmental

• Operating Temp (Series B): 0°C to +60°C (32°F to 140°F)

• Operating Temp (Series C): -25°C to +60°C (-13°F to 140°F)

• Storage Temperature: -40°C to +85°C (-40°F to 185°F)

• Relative Humidity: 5% to 95% (non-condensing)

Physical Specifications

• Cabinet Size (HxWxD): 24 x 30 x 8 in.

• Mounting Tabs: Eight (8)

• Weight: 4.2 lbs (1.9 kg)

Wiring

• Functional Earth Ground: 8.3 mm² (8 AWG) copper wire, rated 90°C (194°F) or higher

• Protective Earth Ground: 2.1 mm² (14 AWG) copper wire, rated 90°C (194°F) or higher
