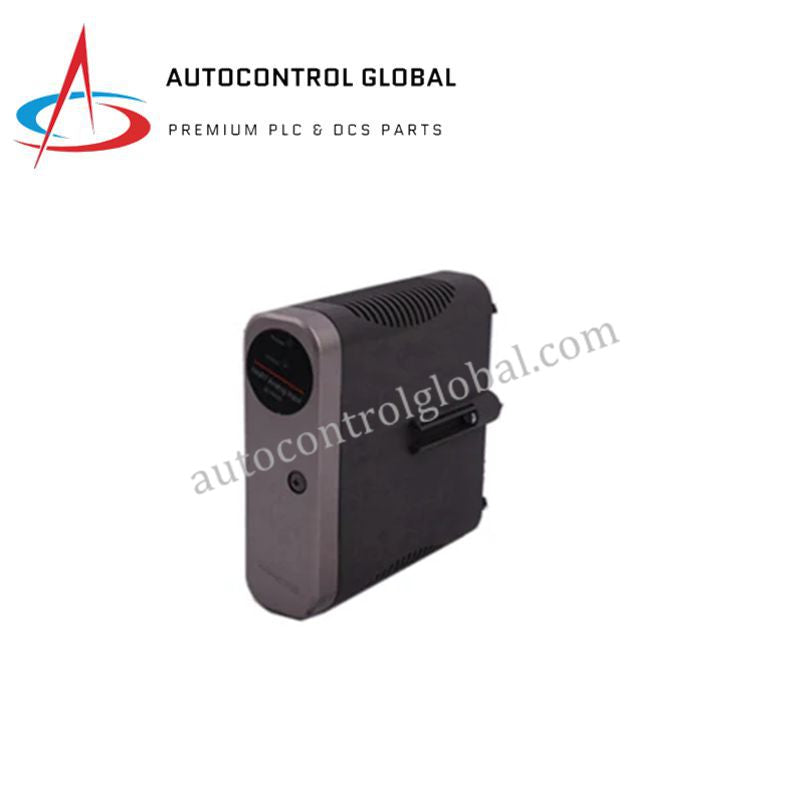

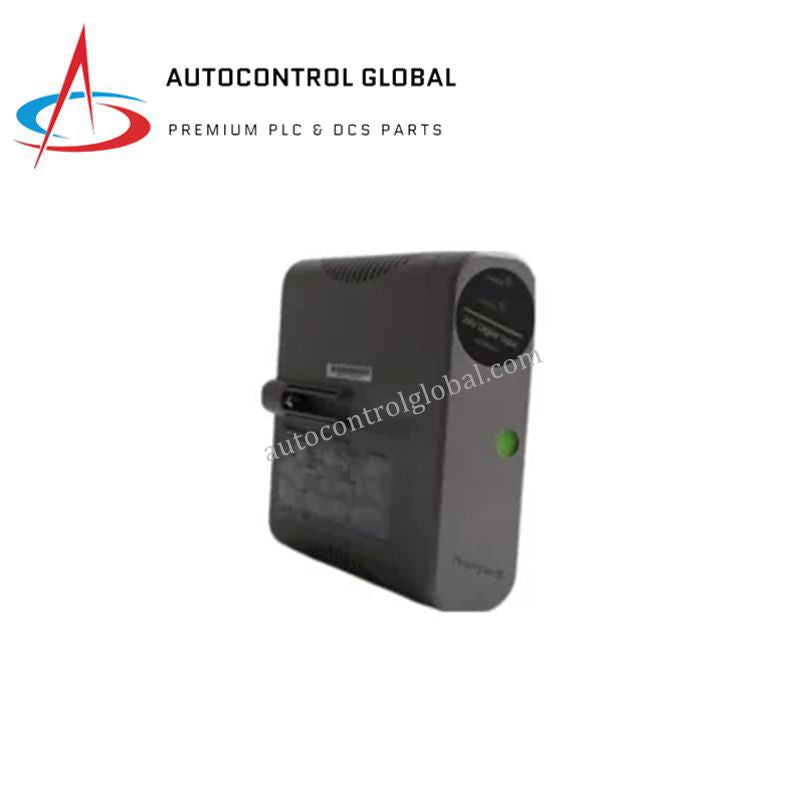

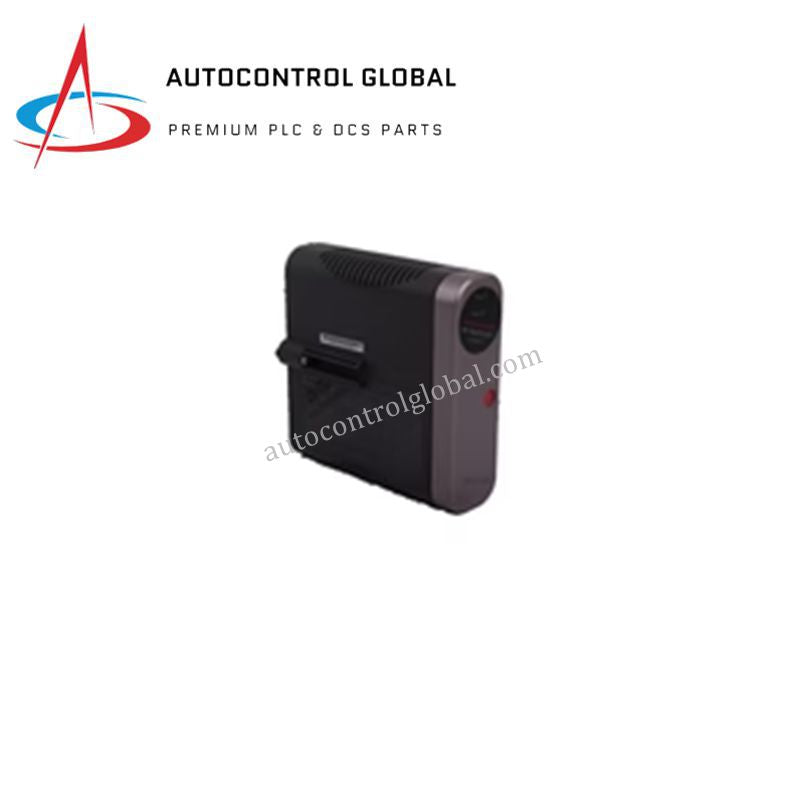

CSC-200 Honeywell | Modular Protection & Control for Substations
Manufacturer: Honeywell
-
Part Number: CSC-200
Condition：New with Original Package
Product Type: Modular Protection & Control for Substations
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell CSC-200 is a modular and programmable digital protection and control device for electrical power systems. It provides comprehensive protection, monitoring, and control for substations, transformers, feeders, and motors. Built on a unified hardware and software platform, the CSC-200 series ensures high reliability, adaptability, and precise control in industrial and utility applications. Its flexible communication interfaces and programmable logic allow for tailored protection schemes and seamless integration into modern power systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Series | CSC-200 |
| Processor | 32-bit high-speed microprocessor |
| A/D Conversion | 14-bit resolution |
| Communication Interfaces | Optical Ethernet, LonWorks fieldbus, Optical RS-485 |
| Protocols Supported | IEC 103, CSC-2000 proprietary protocols |
| Protection Functions | Overcurrent, distance, differential, voltage/frequency monitoring, non-electrical quantities |
| Control Capabilities | Breaker control, programmable logic for custom schemes |
| Diagnostics | Fault detection, SOE recording, virtual testing, remote simulation |
| Time Synchronization | GPS, IRIG-B, network time sync |
| Display | LCD with Chinese interface, 11 status LEDs |
| Operating Temperature | −10°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Humidity | Up to 90% RH, non-condensing |
| Atmospheric Pressure | 80 kPa to 110 kPa |
| Electrical Insulation | Dielectric strength: 2kV/500V, Insulation ≥100 MΩ, Surge withstand: 5kV/1kV |
| Mechanical Performance | Vibration, shock, collision tested to IEC standards |
| Mounting Options | Centralized panel or distributed cabinet |
| Software Tools | PC-based graphical logic editor and fault analysis software |
FAQ
Q1: What applications suit the CSC-200?
A1: It protects and monitors substations, transformers, feeders, and motors in industrial and utility systems.
Q2: Which communication interfaces are available?
A2: The CSC-200 supports Optical Ethernet, LonWorks fieldbus, and Optical RS-485.
Q3: Can it perform programmable logic control?
A3: Yes, the module allows custom programmable logic for advanced control schemes.
Q4: What protection functions does it provide?
A4: Overcurrent, distance, differential, voltage/frequency monitoring, and non-electrical quantity protection.
