Current Displacement PLC Module | EPRO CON021 PR6423/000-030-CN
Manufacturer: Emerson
-
Part Number: CON021+PR6423/000-030-CN
Condition：New with Original Package
Product Type: Proximity Sensors
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

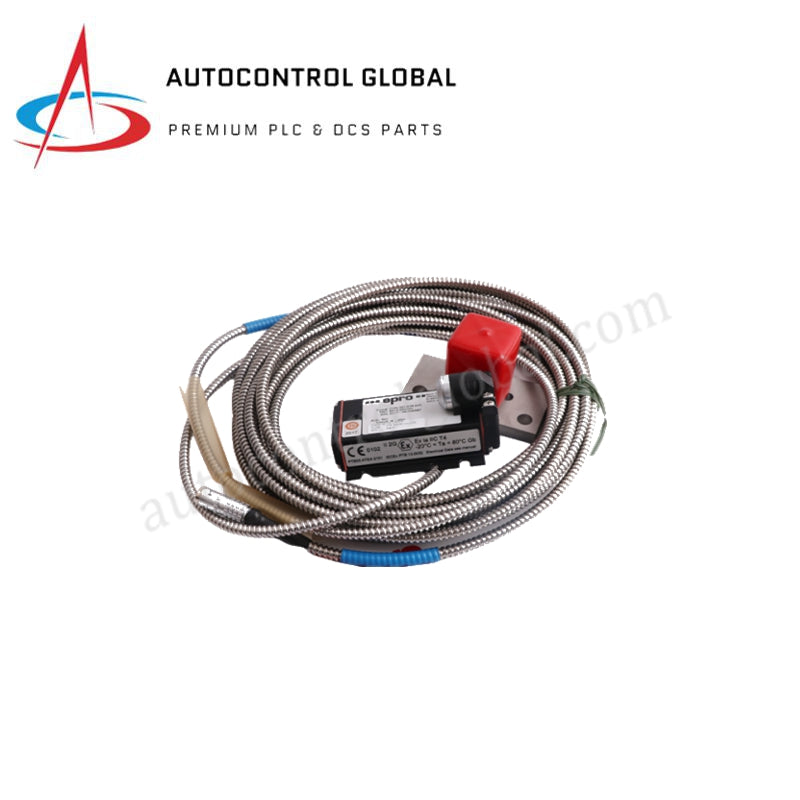

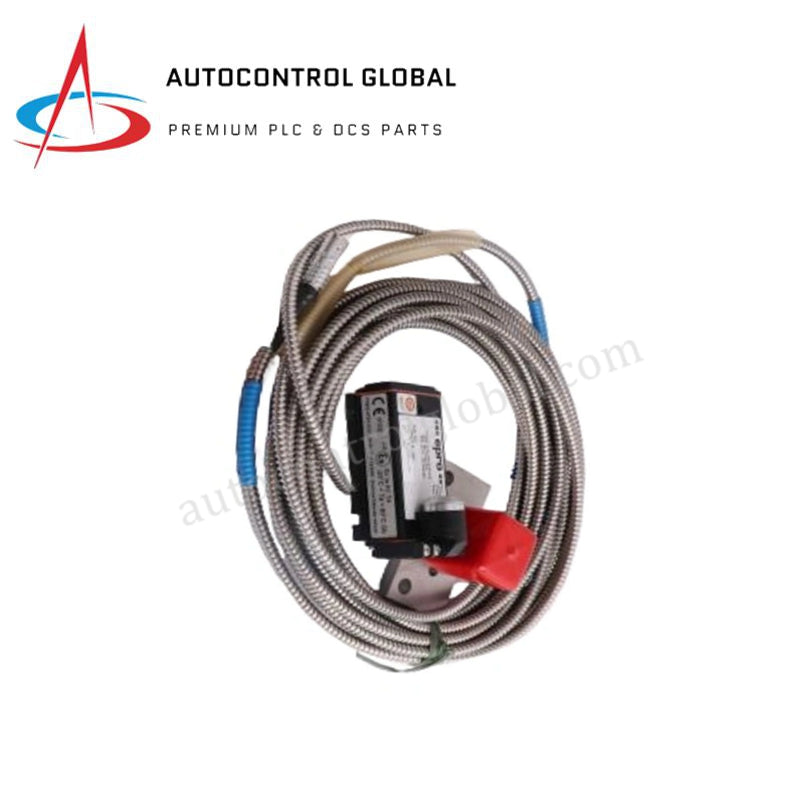

EPRO CON021+PR6423/000-030-CN PLC Processor Module
The EPRO CON021+PR6423/000-030-CN, also cataloged as the CON021+PR6423 PLC Processor Module, operates as a dedicated hardware component for radial and axial shaft displacement, position, eccentricity, and speed measurement within turbomachinery monitoring systems. Configured for non-contact measurement in hazardous industrial environments, the EPRO CON021+PR6423/000-030-CN (CON021+PR6423 PLC Processor Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CON021+PR6423/000-030-CN |
| Brand | EPRO (Emerson) |
| Origin | United States / China |
| Weight | 0.3 kg (Probe) / 120 g (Converter) |
| Dimensions | 4.1 cm x 15.9 cm x 10.8 cm (Probe dimensions) |
| Operating Temp | -30 to +100 deg C (Converter) / -35 to +180 deg C (Sensor + Cable) |
| Power Consumption | Driven by supply voltage range |
| Sensor Type | 5 mm eddy current probe |
| Frequency Range | 0-20,000 Hz (-3 dB) |
| Rise Time | <15 us |
| Measuring Range | 1-24 mm depending on sensor type (~2.0 mm linear range for /000-030 variant) |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm (+/- 5%) |
| Deviation from Linearity | +/- 0.015 mm |
| Supply Voltage | -23 V to -32 V DC (output -4 V to -20 V) / -21 V to -32 V DC (output -2 V to -18 V) |
| Target Material | Ferromagnetic steel (42CrMo4 / AISI 4140) |
| Protection Class | IP20 (Converter) / IP66 (Sensor) |
| Certifications | CE, ATEX, IECEx, CSA, CN local certification (Intrinsic Safety Ex ia IIC T6/T4) |
Turbomachinery Monitoring and TSI Characteristics
The transducer system utilizes advanced eddy-current probe scaling matrices tailored specifically for ferromagnetic steel targets. System loop diagnostics require rigid gap voltage validation (-10 VDC targets) to maintain the 0.5 mm initial air gap orientation within the linear measurement window. High-frequency response parameters across the 0 to 20,000 Hz spectrum enable the processing hardware to map complex rotor dynamics without signal attenuation. Active cross-talk suppression methodologies protect the high-sensitivity 8 V/mm voltage transmission from localized inductive noise, ensuring intrinsically safe executions in environments categorized under Ex ia IIC requirements.
Frequently Asked Questions
Q: What are the primary signal output ranges provided by the converter component?
A: The converter generates an analog voltage output of either -4 V to -20 VDC or -2 V to -18 VDC based on the direct configuration of the supply voltage rails.
Q: How does the system ensure mechanical survivability in extreme thermal conditions?
A: The sensor head and its integral cabling are rated to operate continuously between -35 deg C and +180 deg C, utilizing a stainless steel case and a PEEK tip to protect the internal coil assembly.
Field Installation Guidelines
