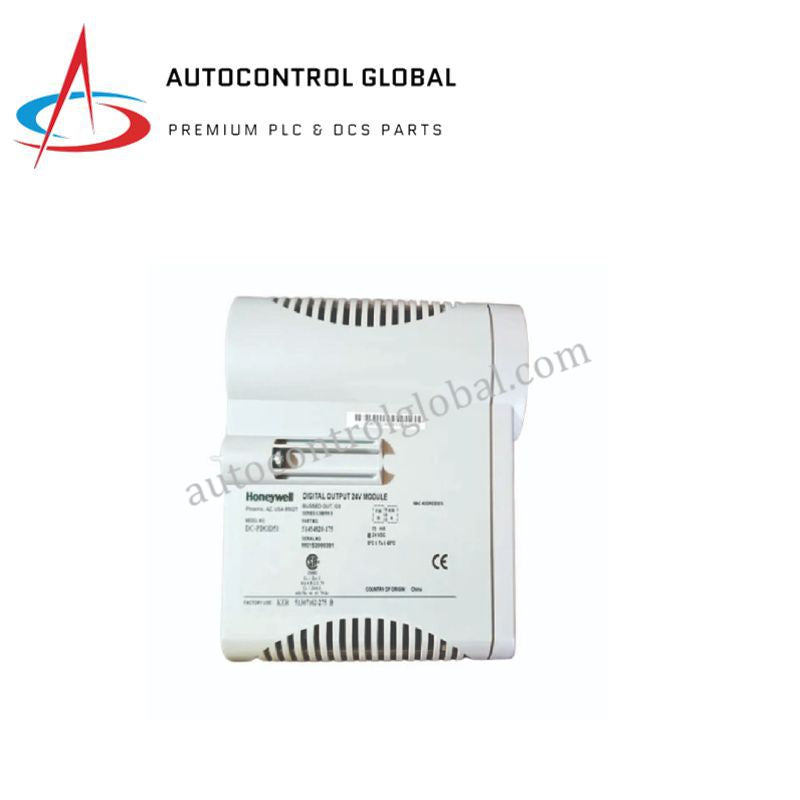

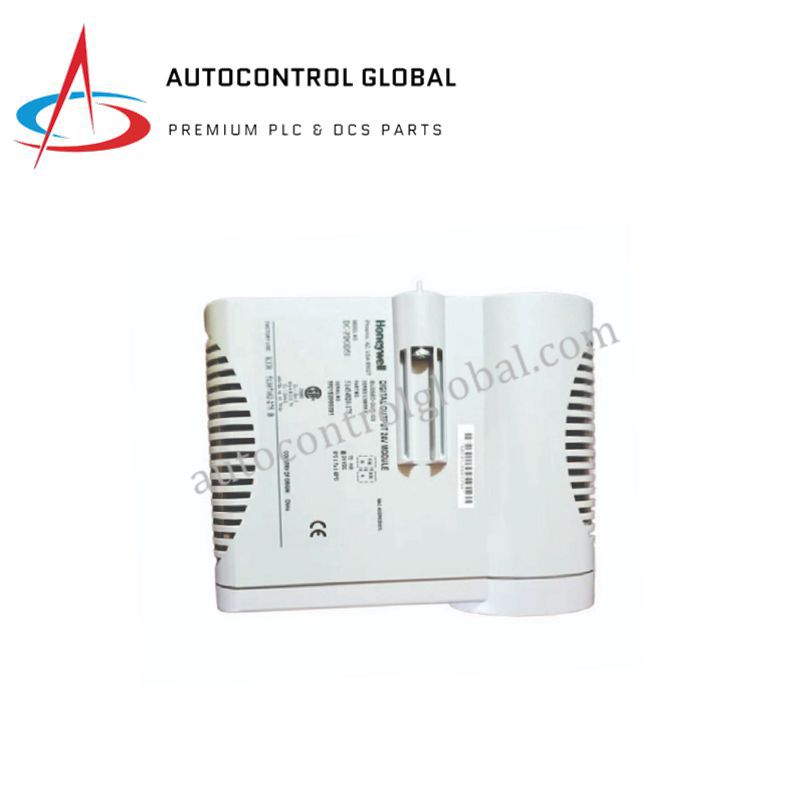

DC-PDOD51 Honeywell | SINK-Type Digital Output Module 24V DC
Manufacturer: Honeywell
-
Part Number: DC-PDOD51
Condition：New with Original Package
Product Type: SINK-Type Digital Output Module 24V DC
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell DC-PDOD51 (51309150-176) is a high-performance Digital Output Module for industrial automation systems.
It provides 32 SINK-type digital outputs, allowing reliable control of field devices like solenoids, relays, and actuators.
Each channel delivers 24V DC output with a maximum current of 0.5A, ensuring precise and stable device operation.
The module supports multiple output modes, including Latch, Pulse, and Pulse Width Modulation (PWM) for versatile control.
It features galvanic isolation between channels and system bus, protecting the system from electrical interference.
Built-in internal diagnostics and electronic overcurrent protection maintain signal integrity and safe operation.
The FAILOPT configurable safety state enables each channel to default to a safe condition during faults.
Designed for redundancy, it integrates seamlessly into Honeywell Experion PKS and ControlEdge systems.
The module operates reliably in temperatures ranging from −40°C to +70°C.
It is compact, panel- or DIN rail-mountable, and weighs approximately 0.1 kg, making installation straightforward.
Certified CE and RoHS compliant, it meets global industrial safety and environmental standards.
A 12-month warranty ensures confidence and long-term performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DC-PDOD51 |
| Part Number | 51309150-176 |
| Type | Digital Output Module |
| Output Channels | 32 SINK-type digital outputs |
| Output Voltage | 24V DC |
| Maximum Output Current | 0.5A per channel |
| Output Modes | Latch, Pulse, Pulse Width Modulation (PWM) |
| Isolation | Galvanic isolation between channels and system bus |
| Diagnostics | Internal diagnostics, electronic overcurrent protection |
| Safety Configuration | FAILOPT per channel |
| Redundancy Support | Yes |
| Operating Temperature | −40°C to +70°C |
| Mounting | DIN rail or panel-mounted |
| Weight | 0.1 kg |
| Compliance | CE marked, RoHS compliant |
FAQ
Q1: How many output channels does the DC-PDOD51 provide?
A1: It provides 32 SINK-type digital outputs, ideal for multiple field devices.
Q2: What is the maximum current per channel?
A2: Each channel supports up to 0.5A, suitable for most industrial actuators.
Q3: Which output modes are supported?
A3: The module supports Latch, Pulse, and Pulse Width Modulation (PWM) modes.
Q4: Can the module operate in harsh environments?
A4: Yes, it works in temperatures ranging from −40°C to +70°C and is CE/RoHS compliant.
Q5: How is it mounted?
A5: The DC-PDOD51 can be DIN rail or panel-mounted for flexible installation.
Q6: Does it support redundancy?
A6: Yes, it is designed for redundancy in Experion PKS and ControlEdge systems.
