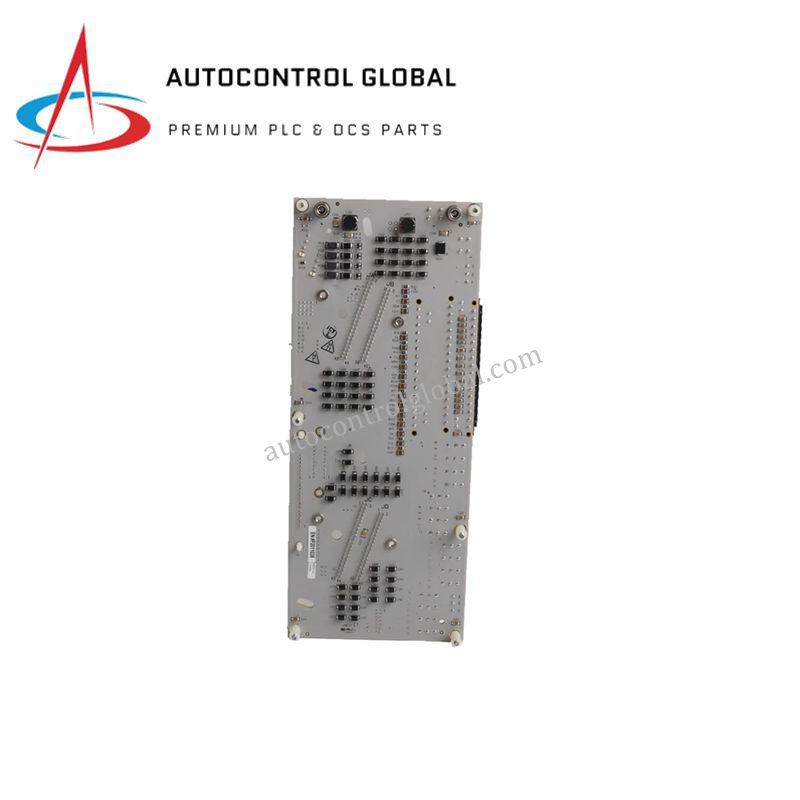

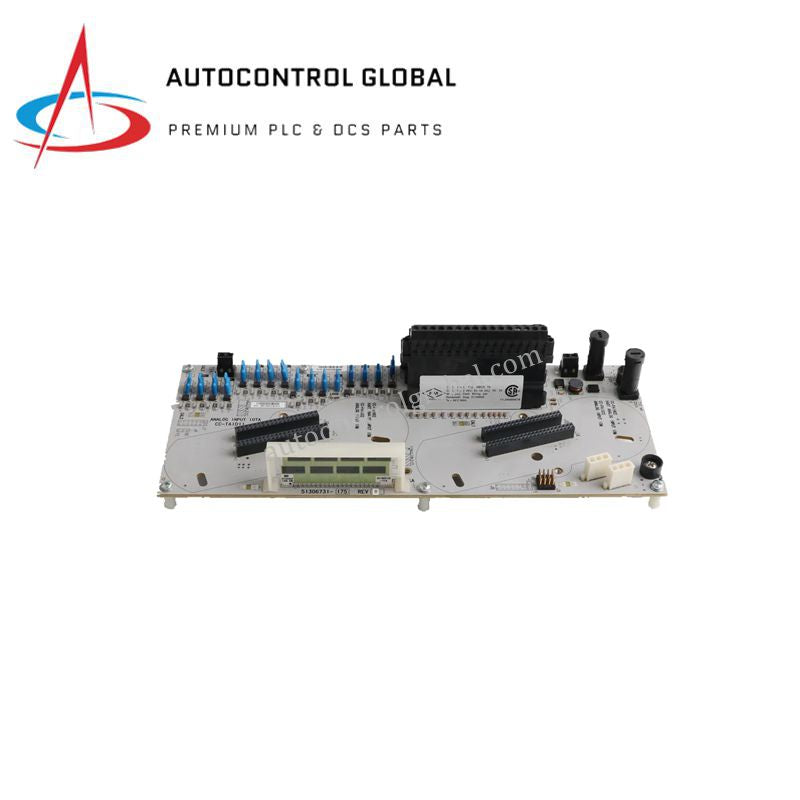

DC-TDIL51 Honeywell | High-Performance Digital Input Module
Manufacturer: Honeywell
-
Part Number: DC-TDIL51
Condition：New with Original Package
Product Type: High-Performance Digital Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell DC-TDIL51 is a high-performance Digital Input IOTA Module designed for ControlEdge™ and Experion PKS systems.
It features 32 optically isolated input channels to monitor field signals reliably in harsh industrial environments.
With a compact 85 × 55 × 30 mm design, it saves panel space while ensuring rugged durability.
The module supports DIN rail or panel mounting, providing flexible installation options.
DC-TDIL51 operates across −20°C to +60°C, with an IP65 rating for dust and water resistance.
Conformal coating protects against corrosion, while optical isolation ensures safe signal separation from the system bus.
This module consumes max 10 mA, supports 18–30 VDC inputs, and maintains a 5 ms response delay for fast digital monitoring.
It is CE marked, RoHS compliant, and meets industrial EMC and safety standards, with a 12-month warranty.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DC-TDIL51 |
| Part Number | 51307607-176 |
| Type | Digital Input IOTA Module |
| Input Channels | 32 optically isolated digital inputs |
| Input Voltage Range | 18–30 VDC |
| Input Delay Time | Approx. 5 ms |
| Isolation | Optical isolation between channels and system bus |
| Power Consumption | Max 10 mA |
| Operating Temperature | −20°C to +60°C |
| Protection Rating | IP65, conformal coated for corrosion resistance |
| Dimensions | 85 mm × 55 mm × 30 mm |
| Weight | 0.42 lbs (190 g) |
| Mounting | DIN rail or panel-mounted |
| Compliance | CE marked, RoHS compliant, meets industrial EMC and safety standards |
FAQ
Q1: How many input channels does the DC-TDIL51 support?
A1: It supports 32 optically isolated digital input channels.
Q2: What is the input voltage range for this module?
A2: The module operates safely within 18–30 VDC.
Q3: Can it be installed outdoors or in dusty environments?
A3: Yes, it has an IP65 rating and conformal coating for dust and water resistance.
Q4: What mounting options are available for the DC-TDIL51?
A4: It supports DIN rail or panel mounting for versatile installation.
Q5: How fast does the module respond to input signals?
A5: The input delay time is approximately 5 ms, suitable for real-time control applications.
