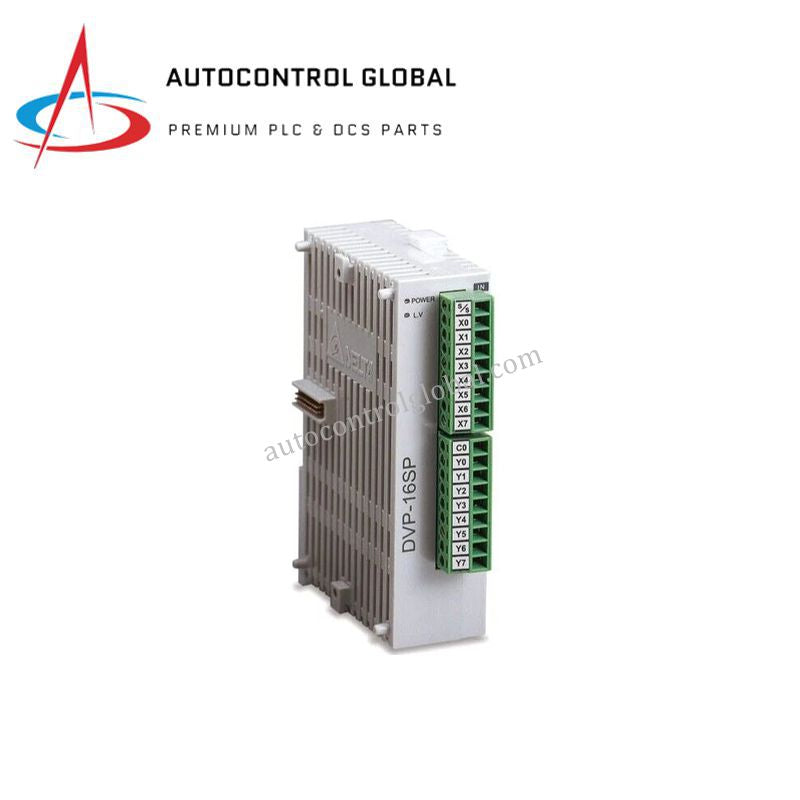

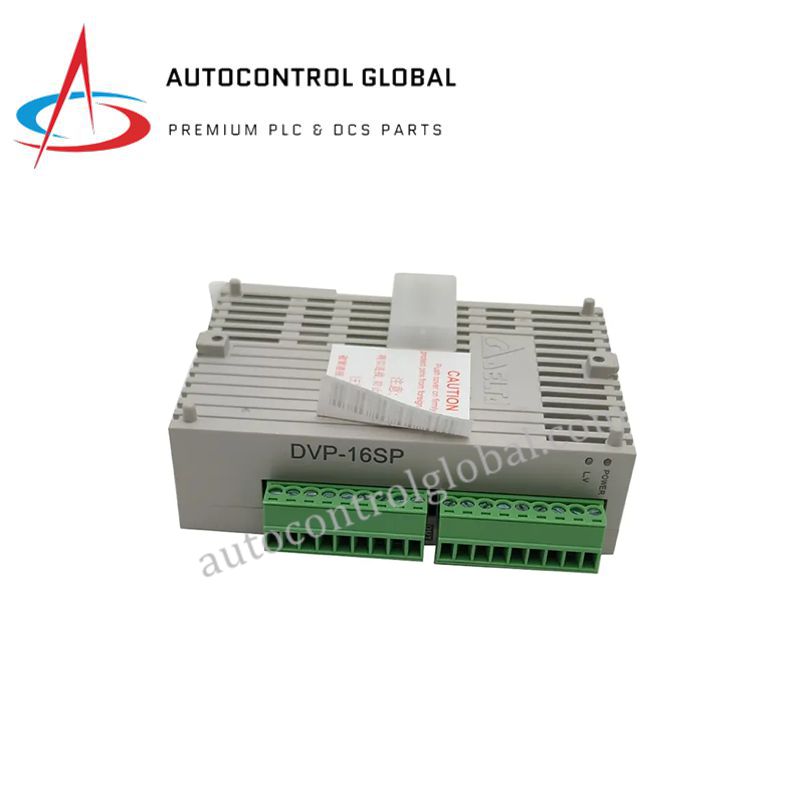

Delta DVP16SP11R | Digital I/O Module | 8 Inputs & 8 Relay Outputs

Product Description

The DVP16SP11R is a digital I/O extension module from Delta Electronics, designed for use in Emerson-integrated automation systems. It features a compact, slim form factor with 8 digital inputs and 8 relay outputs, making it ideal for a variety of control applications in industrial environments. This module is part of Delta's DVP-S series, known for its reliability and versatility.

The DVP16SP11R module allows for easy integration with Delta PLCs via a high-speed communication bus. Its relay outputs are perfect for controlling various devices, such as solenoids, lamps, and contactors. It supports 24 VDC input voltage, and the relay output is rated for 2 A at 30 VDC and 1 A at 250 VAC, making it suitable for a wide range of applications.

This module is designed for DIN rail mounting, which simplifies installation in control panels or machinery. With its robust construction, it operates effectively in environments with temperatures ranging from −20°C to +55°C, making it suitable for industrial automation, packaging, and process control applications.

Technical Specifications

• Model Number: DVP16SP11R

• Product Type: Digital I/O Extension Module

• Manufacturer: Delta Electronics

• Input Channels: 8 digital inputs

• Output Channels: 8 relay outputs (SPST-NO)

• Output Type: Relay

• Rated Output Current: 2 A at 30 VDC / 1 A at 250 VAC

• Input Voltage Range: 24 VDC

• Operating Temperature: −20°C to +55°C

• Mounting: DIN rail

• Dimensions: Approx. 90 mm × 60 mm × 40 mm

• Certifications: CE, RoHS

• Weight: 0.162 kg

• Shipping Weight: 2 kg

• Country of Origin: Taiwan

FAQ

Q1: How many inputs and outputs does the DVP16SP11R module have?
A1: The DVP16SP11R module has 8 digital inputs and 8 relay outputs (SPST-NO), providing versatile control capabilities.

Q2: What is the operating temperature range for the DVP16SP11R?
A2: The DVP16SP11R operates within a temperature range of −20°C to +55°C, suitable for most industrial environments.

Q3: How does the DVP16SP11R integrate with Delta PLCs?
A3: The DVP16SP11R connects easily to Delta PLCs via a high-speed communication bus, enabling seamless integration into the system.

Q4: What is the maximum rated output current for the relay outputs?
A4: The relay outputs are rated for 2 A at 30 VDC and 1 A at 250 VAC, making the module suitable for controlling solenoids, lamps, and contactors.

Q5: Is the DVP16SP11R module compatible with other Delta DVP series PLCs?
A5: Yes, the DVP16SP11R is compatible with Delta DVP-S series PLCs, including models like SS/SA/SX/SC/SV and others.
