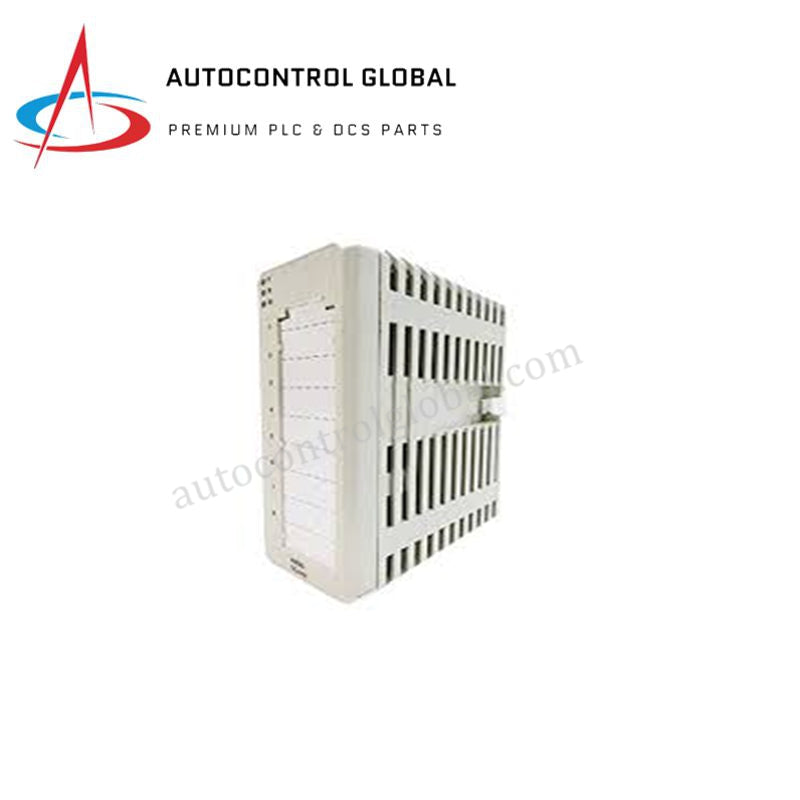

DI830 3BSE013210R1 ABB 24V DC Digital Input Module
Manufacturer: ABB
-
Part Number: DI830
Condition：New with Original Package
Product Type: Digital Input Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB DI830 S800 Digital Input Module
The DI830 (part number 3BSE013210R1) is a 16-channel 24 VDC digital input module manufactured by ABB for the S800 I/O system, operating within the System 800xA control platform. It captures digital signals from field devices such as switches, sensors, and push buttons. The module incorporates individual channel LEDs, optical isolation, and current-limiting protection to maintain accurate input processing in industrial environments.
Channel Isolation and Input Filtering
The 16 input channels are arranged into two galvanically isolated groups of 8 channels each, allowing flexible field power supply distribution and wiring topologies. Each channel operates at a nominal input voltage of 24 VDC with a 6 mA input current draw at 24 VDC across an operating range of 18 to 30 VDC.
To prevent signal bounce and high-frequency noise from generating false triggers, the module features configurable digital input filtering with time settings ranging from 0 to 100 milliseconds. Integrated Sequence of Event (SOE) timestamping and shutter filtering enable high-resolution event logging for diagnostics and trip analysis.
System Supervision and Diagnostics
The module executes continuous cyclic self-diagnostics to ensure high system availability. It monitors internal power supply conditions, event queue status, and system time synchronization.
Constructed for DIN-rail panel installation, each channel is equipped with a dedicated front-panel LED status indicator to give maintenance personnel immediate visual feedback on input states and channel activity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DI830 |
| Brand | ABB |
| Part Number | 3BSE013210R1 |
| Series | S800 I/O |
| System Compatibility | ABB System 800xA |
| Product Type | Digital Input Module |
| Input Channels | 16 digital inputs |
| Channel Grouping | 2 isolated groups of 8 channels |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 18 to 30 VDC |
| Input Current | 6 mA at 24 VDC |
| Configurable Input Filter | 0 to 100 ms |
| Diagnostic Functions | Power supply supervision, event queue monitoring, time sync status |
| Channel Isolation | Optical isolation |
| Status Display | Individual channel LED indicators |
| Mounting Type | DIN rail |
Frequently Asked Questions
Q: How are the 16 channels organized on the ABB DI830 digital input module? A: The 16 input channels are divided into two isolated groups of 8 channels each, supporting separate power feeding and field grouping.
Q: How does the DI830 handle contact bounce and noisy field signals? A: It includes configurable digital filtering from 0 to 100 ms to reject short transient pulses and signal noise.
Q: What diagnostic supervision functions does the DI830 perform? A: The module executes cyclic self-diagnostics that monitor power supply voltage level, event queue integrity, and time synchronization state.
