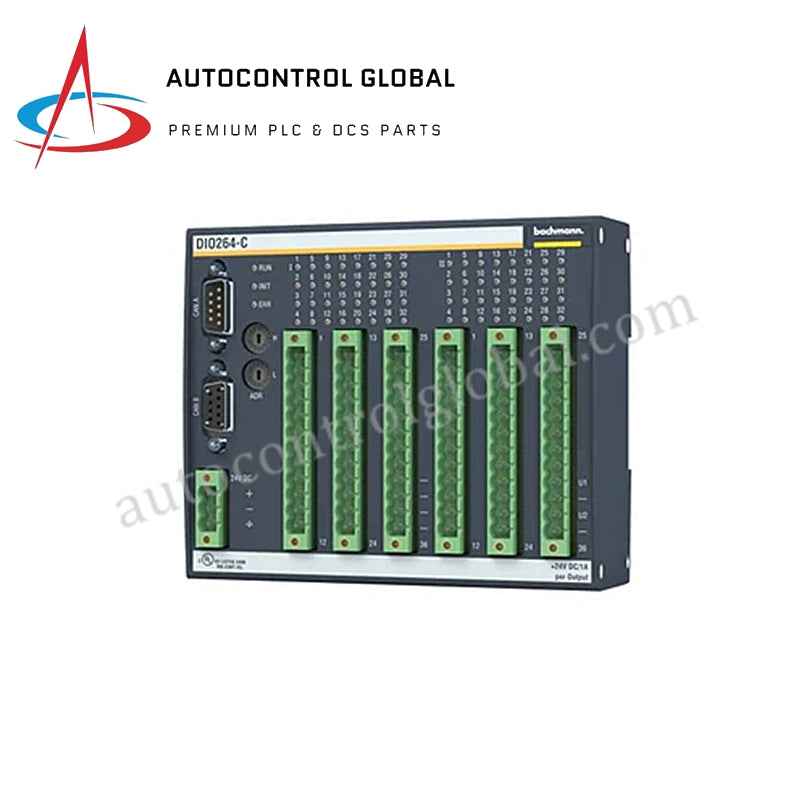

DIO264-C CAN Slave Digital Input/Output Module Bachmann
Manufacturer: Bachmann
-
Part Number: DIO264-C
Condition：New with Original Package
Product Type: CAN Slave Digital Input/Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The DIO264-C is a CAN slave digital I/O module by Bachmann, offering up to 64 inputs and 32 outputs for versatile and isolated signal control in distributed automation systems.
Digital Inputs
-
Quantity: Up to 64
-
Input Delay: < 3.5 ms
-
Internal Resistance: 6 kΩ
-
Status Display: Green LED
Digital Outputs
-
Quantity: Up to 32
-
Supply Voltage: 18–34 VDC
-
Output Blocks: Isolated (1–16, 17–32)
-
Nominal Output Current: 1 A
-
Max Current per Block: 12 A
-
Switching Frequency: Max. 500 Hz
-
Short-Circuit Protection: Yes
-
Status Display: Green LED
CAN Communication
-
Baud Rate: 10–1000 Kbaud
-
Connection: 2× 9-pin D-Sub
-
Module ID Range: 1–254
-
Galvanic Isolation: 500 V
-
Termination Resistance: 123 Ω (external)
