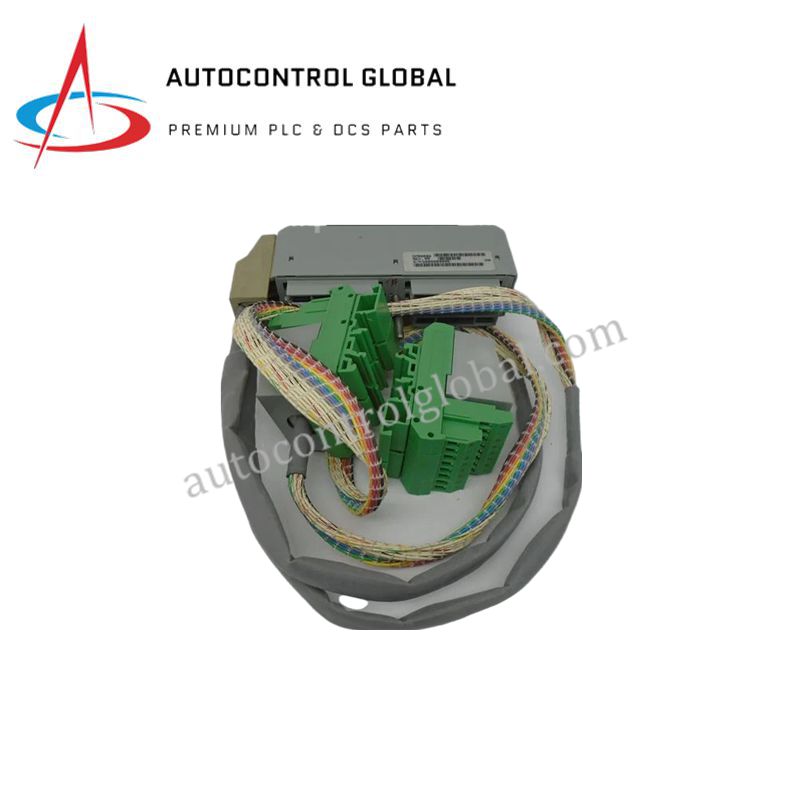

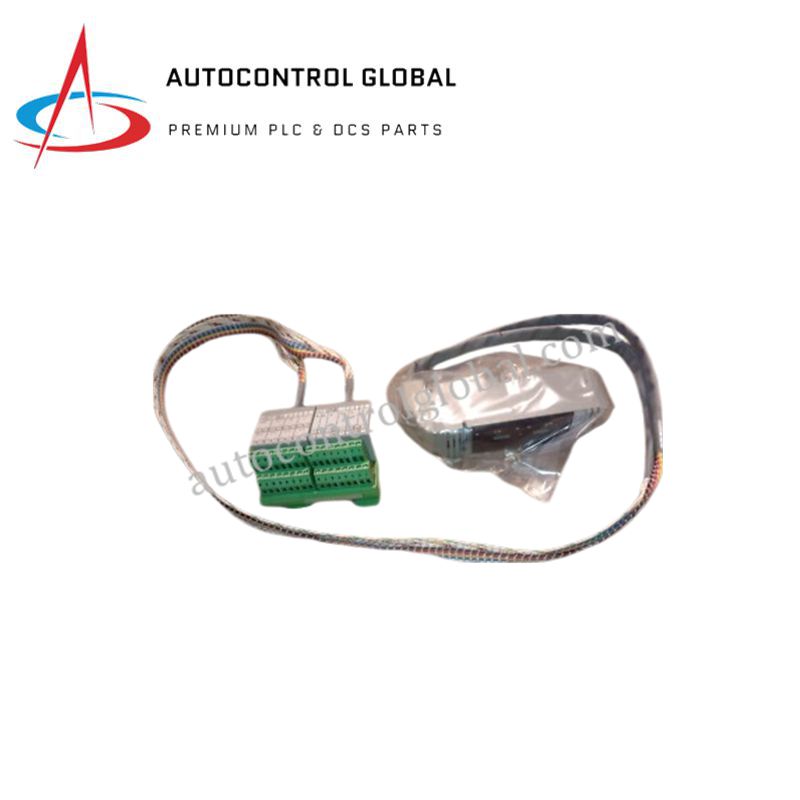

DM500SG FOXBORO | Industrial Control Module with Redundant Power Input
Manufacturer: Foxboro
-
Part Number: DM500SG
Condition：New with Original Package
Product Type: Industrial Control Module with Redundant Power Input
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO DM500SG | Control & Termination Assembly Module
Product Overview
The FOXBORO DM500SG is a modular control and termination assembly designed for use in the Foxboro I/A Series DCS. It provides a secure interface between field devices and Fieldbus Modules (FBMs) such as the FBM17A, ensuring accurate signal transmission, stable power delivery, and real-time control execution.
The DM500SG integrates data acquisition, signal processing, and communication within a compact footprint. Its redundant power input, hot-swappable design, and distributed architecture make it a reliable solution for demanding industries such as oil & gas, chemical processing, power generation, and pharmaceuticals.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | DM500SG |
| Function | Control and termination assembly module |
| Compatible FBMs | FBM17A and other Foxboro I/A Series modules |
| Processor Configuration | Single processor (supports dual-module setup for fault tolerance) |
| Memory | 16 MB SDRAM, 32 MB Flash |
| Input Voltage | 24 V DC (supports redundant input) |
| Power Consumption | ≤ 8.5 W |
| Communication Protocols | HDLC Fieldbus, Modbus, RS-485 |
| Mounting Type | DIN rail or modular baseplate |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Environmental Protection | IP65/IP67 – dust, vibration, and moisture resistant |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
| Category | Cable and Wire – Industrial Computer Cable |
| Weight | 0.95 lbs |
FAQ
Q: What is the primary function of the FOXBORO DM500SG?
A: The DM500SG serves as a control and termination assembly, connecting field devices to FBMs like the FBM17A.
Q: Does the DM500SG support redundant configurations?
A: Yes, it supports redundant 24 V DC power inputs and fault-tolerant setups for high reliability.
Q: Can the DM500SG be installed while the system is running?
A: Yes, the module supports hot-swappable installation, minimizing downtime during maintenance.
Q: What is the environmental protection rating of the DM500SG?
A: It has an IP65/IP67 rating, providing strong resistance against dust, vibration, and moisture.
Q: How much does the DM500SG weigh?
A: The unit weighs 0.95 lbs, making it lightweight yet durable for industrial use.
