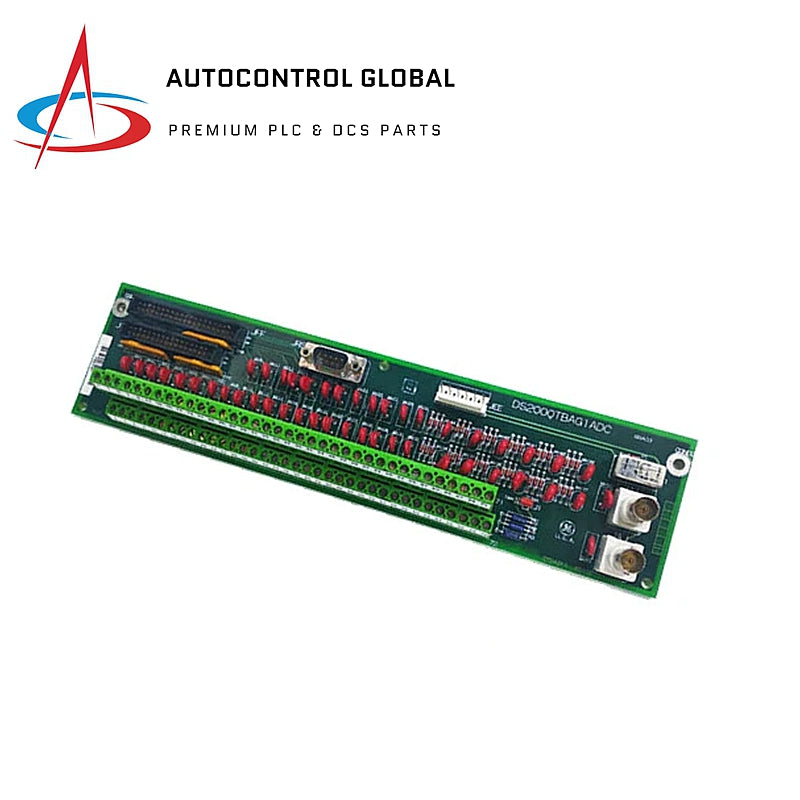

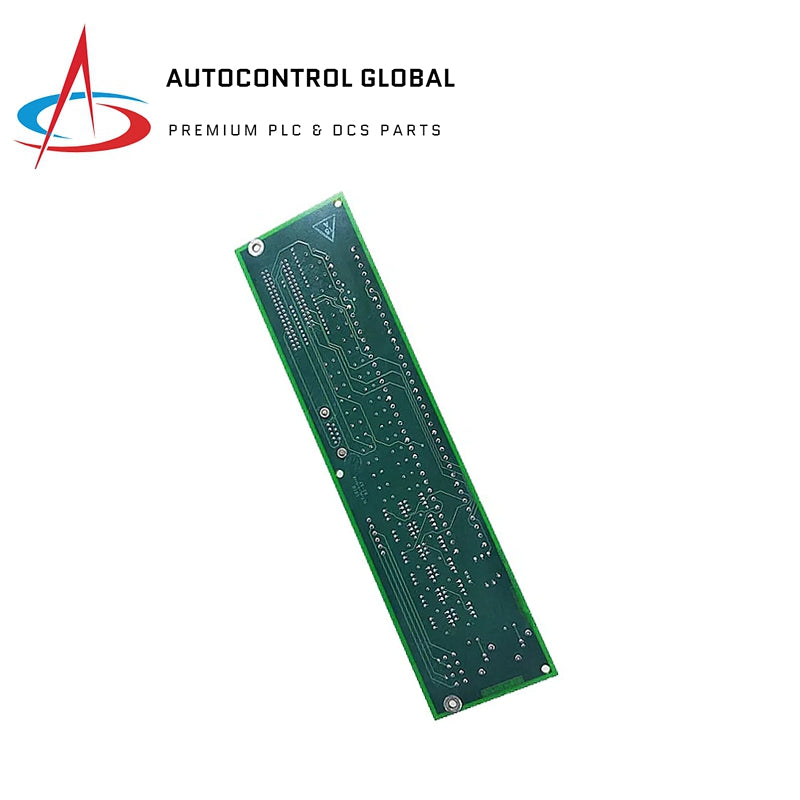

DS200QTBAG1ADC | Terminal Board GE Fanuc

Overview

The DS200QTBAG1ADC is a Terminal Board designed by General Electric for the Mark V Series of Speedtronic control systems. This board plays a critical role in facilitating communication and connection within GE-compatible turbine control and management systems.

Features

• Application: Developed specifically for GE’s Mark V Series, used in turbine control systems.
• Functionality: Facilitates signal connections for control systems and fuel flow signals.
• Signal Handling: Supports 6 magnetic pulse rate inputs and 8 servo value outputs.
• Excitation: Provides 6 excitation sources for LVDTs (Linear Variable Differential Transformers).
• Connector and Terminals:

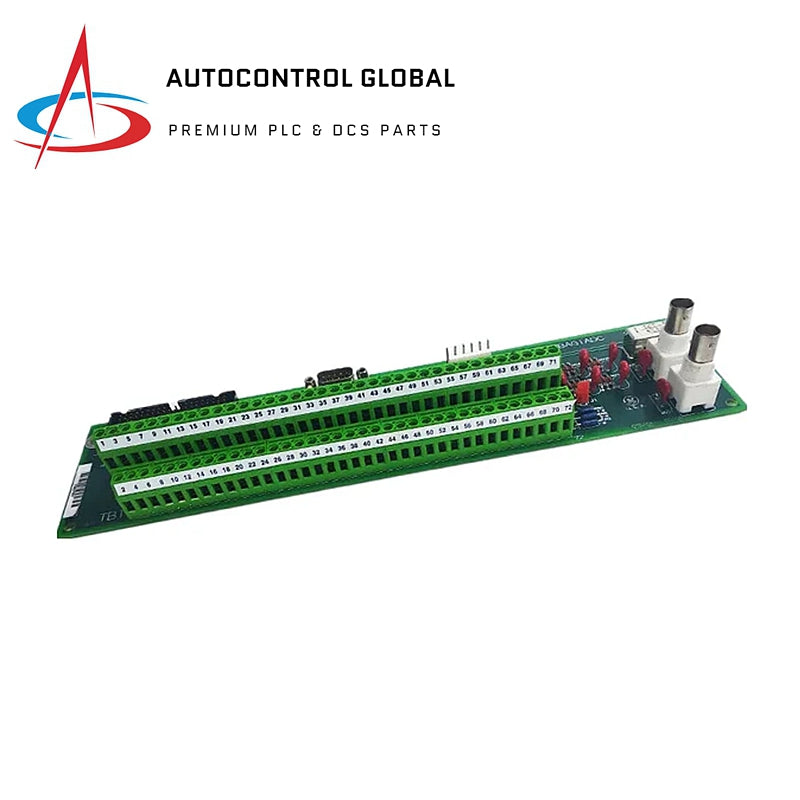

  • Two terminal blocks, each capable of handling 72 signal wires.
  • 40-pin connector (ID: JFF) for system communication.
  • 1 serial connector for additional system connections.
• Jumpers: Configurable jumper (J1) for signal selection, with a default position in the 20mA setting.
• Legacy Compatibility: Part of the final product range utilizing GE's Speedtronic control system technology.

Technical Specifications

• Model: DS200QTBAG1ADC
• OEM: GE Energy
• Signal Inputs:
  • 6 magnetic pulse rate inputs
• Signal Outputs:
  • 8 servo value outputs
• Excitation Sources:
  • 6 excitation sources for LVDTs
• Connectors:
  • 2 terminal blocks (72 signal wires each)
  • 1 40-pin connector (JFF)
  • 1 serial connector
• Jumper Configuration:
  • Jumper J1 modifies input signal selection (default: 20mA position)
• Functionality: Used for turbine control and signal processing in the Mark V Series

Environmental & Mechanical Requirements

• Series: Mark V Speedtronic
• Coating Style: G1 series PCB coating
