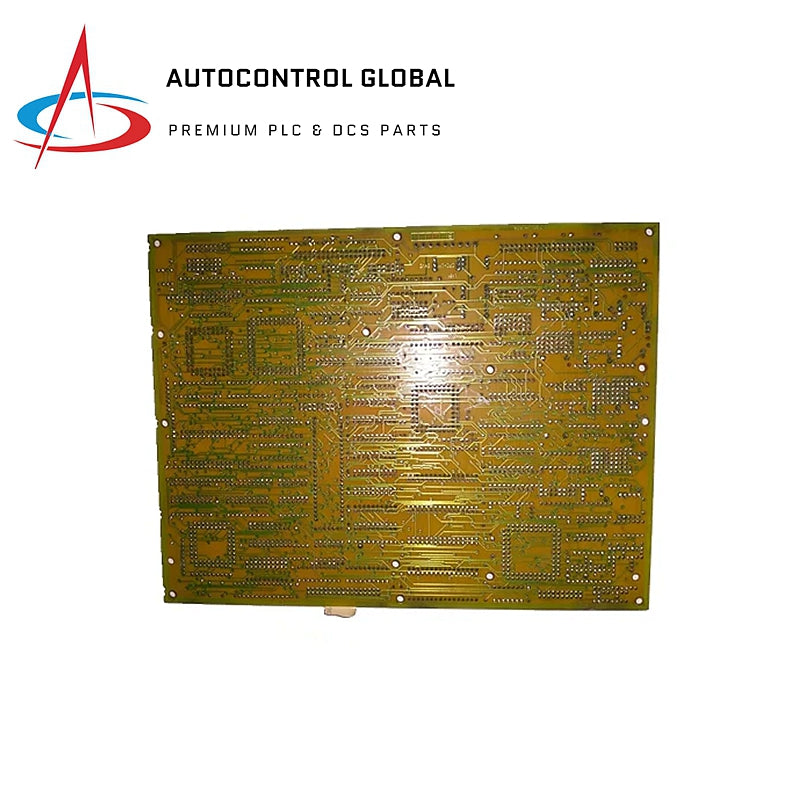

DS200SDCCG1AEC | GE Fanuc | Drive Control Board

Overview

The GE Fanuc DS200SDCCG1AEC is a Drive Control Card from the Mark V series designed for reliable control in industrial applications. This card features three microprocessors and provides accessible RAM for efficient data processing.

Features

• Microprocessor Design:

  • Three microprocessors enable simultaneous access to RAM

• Adjustable Hardware:

  • Hardware settings are customizable for specific applications

• LED Indicators:

  • Ten LEDs indicate board status
  • All LEDs blinking: board operational
  • Slow blinking: error code (1 to 399)
  • Rapid blinking: error code (400 to 1023)

• Test Points:

  • Metal posts for probing signal pathways
  • Testing must be performed by trained personnel

• Diagnostic Tools:

  • Accessible through the control panel
  • Provides detailed performance descriptions of drive components

Technical Specifications

• Product Type: Drive Control Card
• Series: Mark V
• Microprocessors: Three
• LED Indicators: Ten
