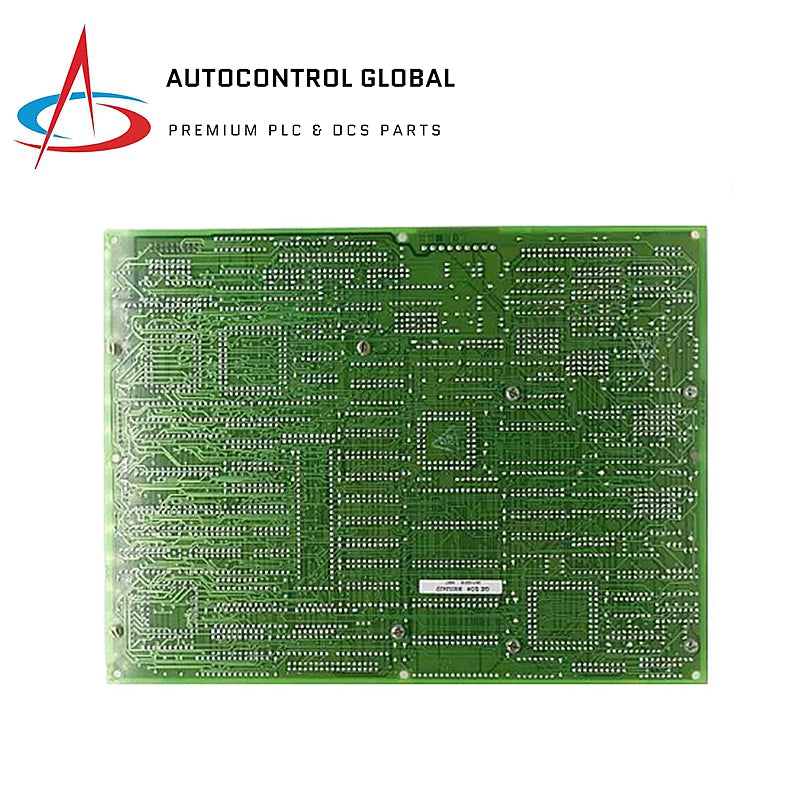

DS200SDCCG1AHD | General Electric | Drive Control Card

Overview

The DS200SDCCG1AHD Drive Control Card, manufactured by General Electric, is specifically designed for the Mark V Turbine Control System Series. This board plays a crucial role in managing and controlling drive systems for various turbine applications, including wind, steam, and gas turbines.

Features

• Manufacturer: General Electric (GE)
• Product Series: Mark V
• Functional Description: Drive Control Card
• Microprocessor Configuration: Equipped with three microprocessors for efficient processing.
• Dual Functionality: One microprocessor handles drive control, while the other two focus on motor control.

Hardware Specifications

Processing Capabilities

• Microprocessors: Three microprocessors with shared RAM access.
  • One microprocessor for drive control activities.
  • Two microprocessors for motor control, with one dedicated to math-intensive processing.

Voltage Management

• Voltage Regulation: Standardized Mark V Series components for voltage suppression, including:
  • Capacitors
  • Resistors
  • Transistors
  • Diodes
  • Integrated circuits

Configuration and Setup

Connection Requirements

• Serial Connector: Cable the board to a serial connector available on the optional LAN communications card.
• Laptop Connection: Attach the serial cable to a laptop and configure the serial port appropriately.

Software Requirements

• Configuration Software: Download and install the configuration software on the laptop.
• File Management:
  • Download the configuration file for the board.
  • Edit the file using configuration tools and upload it back to the board.
  • Optionally, upload the same configuration file to multiple boards to streamline the process.

Safety Precautions

• Power Off: Always power off the drive before disconnecting the serial cable to prevent contact with high-energy currents.
