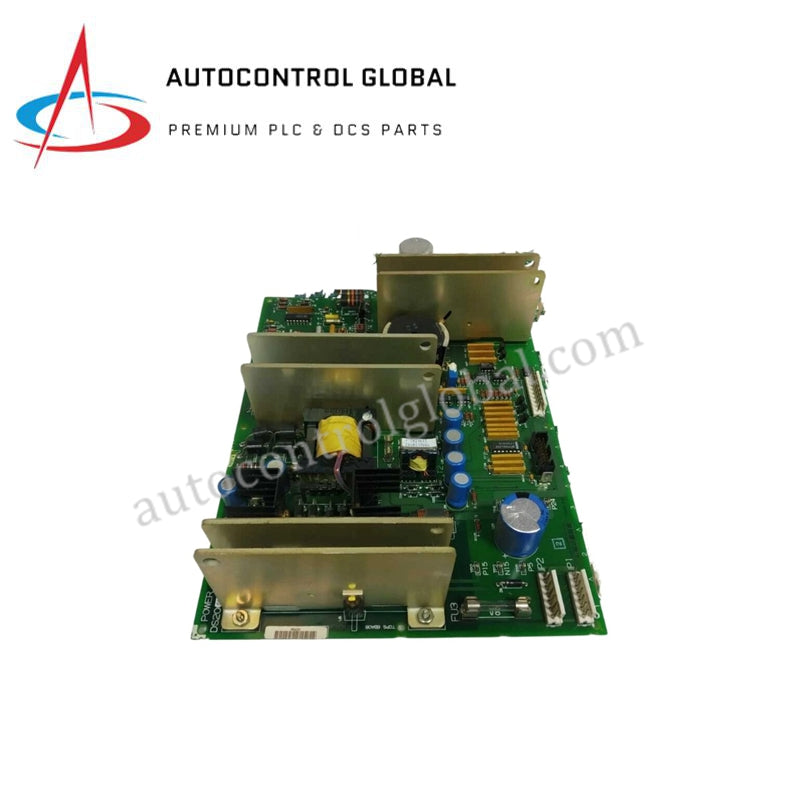

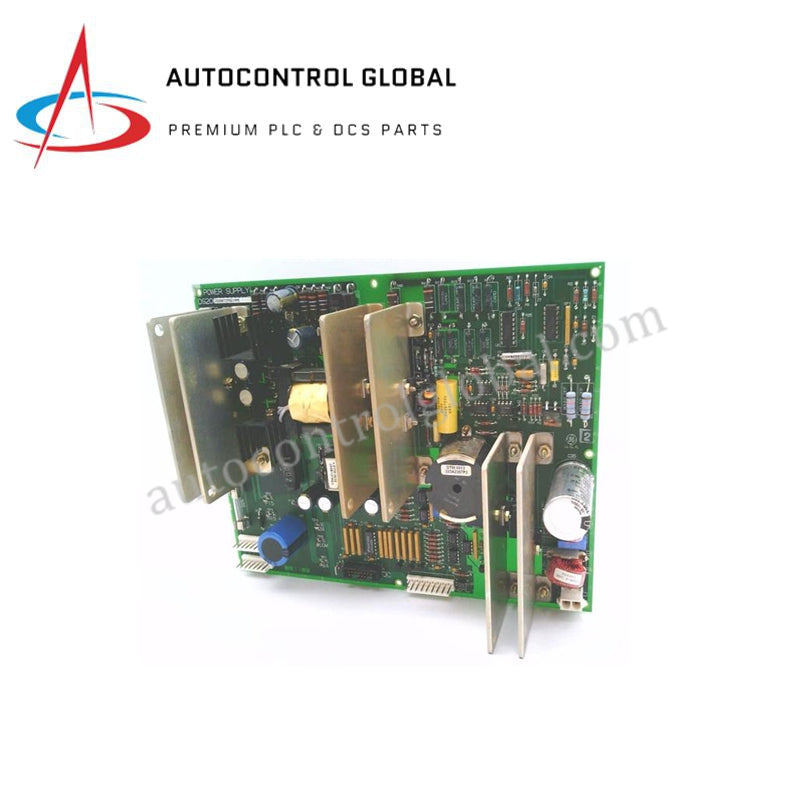

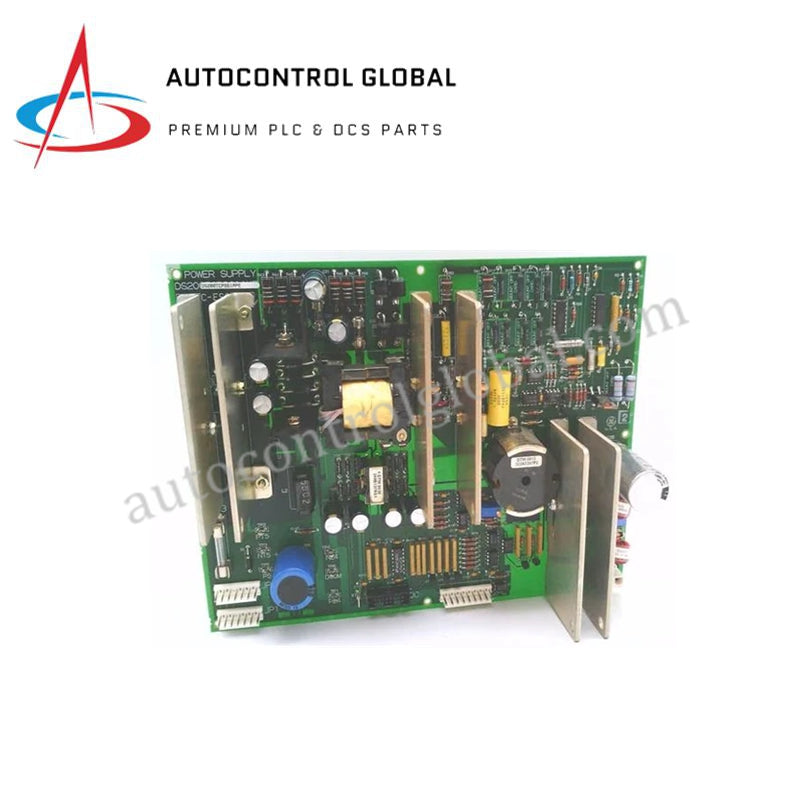

DS200TCPSG1APE General Electric Power Supply Board
Manufacturer: GE Fanuc
-
Part Number: DS200TCPSG1APE
Condition：New with Original Package
Product Type: Power Supplies
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
General Electric DS200TCPSG1APE Speedtronic Mark V DC Power Supply Input Board
The General Electric DS200TCPSG1APE, also cataloged as the DS200TCPS DC Power Supply Input Board, operates as a dedicated hardware component for power distribution and regulation within Speedtronic Mark V control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCPSG1APE |
| Brand | General Electric |
| Origin | United States |
| Weight | 0.8 kg |
| Dimensions | Standard Mark V Board Dimensions |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | No-load loss less than 15 W |
| Input Voltage Ranges | -48 VDC (-54 to -36 VDC), +24 VDC (+20 to +30 VDC), +220 VDC (+198 to +242 VDC) |
| Output Voltages | +5 VDC / 10 A, +/-15 VDC / 3 A, +24 VDC / 5 A |
| Efficiency | Greater than or equal to 92% at full load |
| Protection Functions | Input overvoltage/undervoltage, output overcurrent/short-circuit, thermal shutdown at 85 deg C +/- 5 deg C |
| Onboard Protection | 3 onboard fuses |
| Redundancy | N+1 architecture with fault switchover time less than 2 ms |
| Connectors | One 16-pin terminal, one 9-pin terminal |
| Diagnostics | 2-line display, configuration keys, RS-485 serial download port |
Backplane Bus Architecture and Power Delivery
The General Electric DS200TCPSG1APE manages high-efficiency DC power conversion across the internal rack backplane bus to ensure uninterrupted operational throughput for turbine control electronics. It conditions variable DC field inputs into low-ripple regulated rails (+5 VDC, +/-15 VDC, and +24 VDC) that feed primary processing cards and remote I/O modules. The board executes an N+1 redundant parallel architecture, enabling deterministic switchover within 2 ms during primary supply power interruptions. Internal logic works directly with onboard protective fused paths and thermal monitoring circuits, triggering system shutdown routines when ambient internal operational heat exceeds 85 deg C +/- 5 deg C.
Frequently Asked Questions
Q: How does the unit maintain power integrity across connected Mark V controller cards during voltage fluctuations?
A: The onboard switching regulators accept input swings across three distinct DC ranges (-48 VDC, +24 VDC, and +220 VDC) and maintain tight output regulation at full efficiency. An array of input filtering capacitors and three dedicated protection fuses isolate downstream processing hardware from electrical transients.
Q: What physical interfaces are available for local diagnosis and firmware updating on this board?
A: The board features a integrated 2-line alphanumeric display with configuration keys for real-time voltage monitoring, along with an onboard RS-485 serial download port dedicated to local firmware synchronization and error code logging.
Field Installation Guidelines
- System Power Isolation: Ensure all high-voltage DC feeds (-48 VDC, +24 VDC, or +220 VDC) supplying the Mark V cabinet are fully de-energized and locked out before attempting insertion or extraction of the module.
- Electrostatic Discharge Precautions: Attach an ESD grounding wrist strap directly to an unpainted metal surface of the grounded cabinet chassis before removing the replacement board from its anti-static shielding bag.
- Terminal Wiring Termination: Fasten field supply wiring securely into the 16-pin and 9-pin terminal blocks. Torque all screw terminals to manufacturer specifications to eliminate high-resistance electrical connections and thermal hot spots.
- Fuse and Jumper Verification: Confirm that all 3 onboard fuses are intact and properly seated in their holders prior to sliding the card assembly into its designated rack slot.
- Grounding Integrity: Ensure the board edge mounting screws make solid metal-to-metal contact with the cabinet frame structure to provide a low-impedance ground path for surge suppression components.
