DS215SLCCG1AZZ01B General Electric LAN Card | In Stock
Manufacturer: GE Fanuc
-
Part Number: DS215SLCCG1AZZ01B
Condition：New with Original Package
Product Type: Communication Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

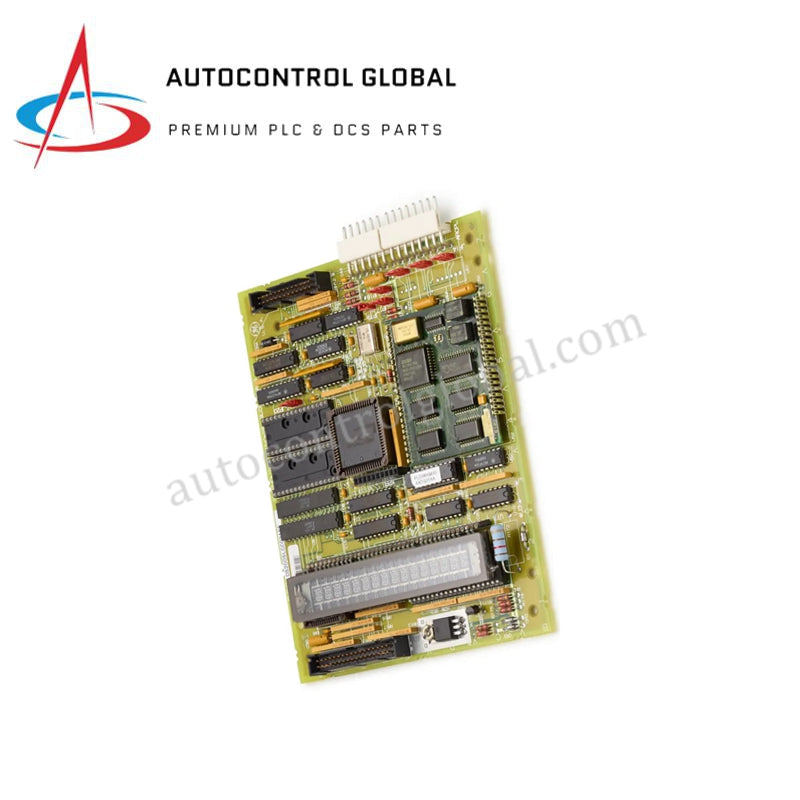

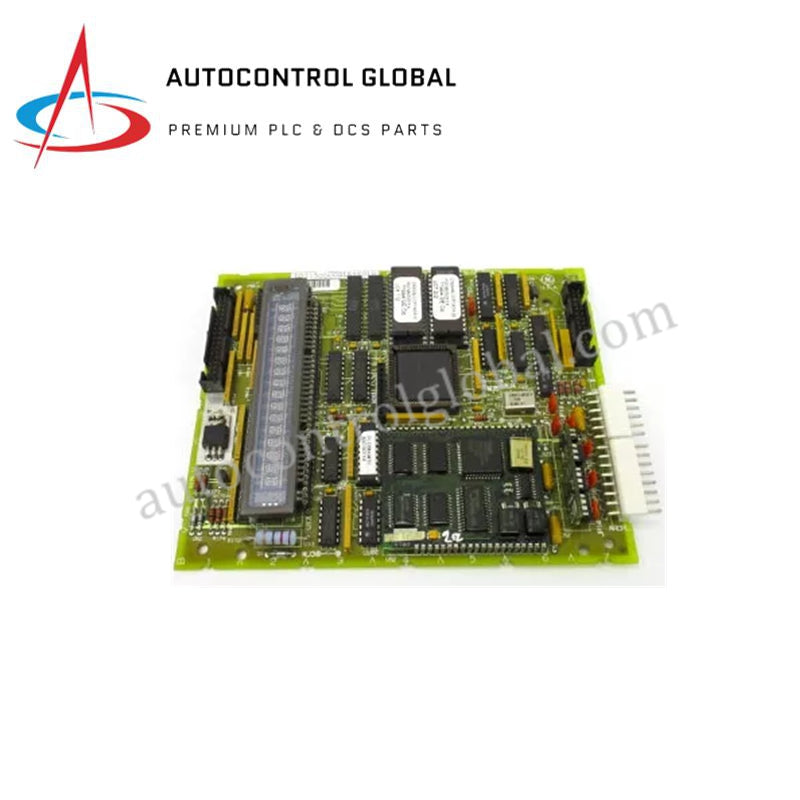

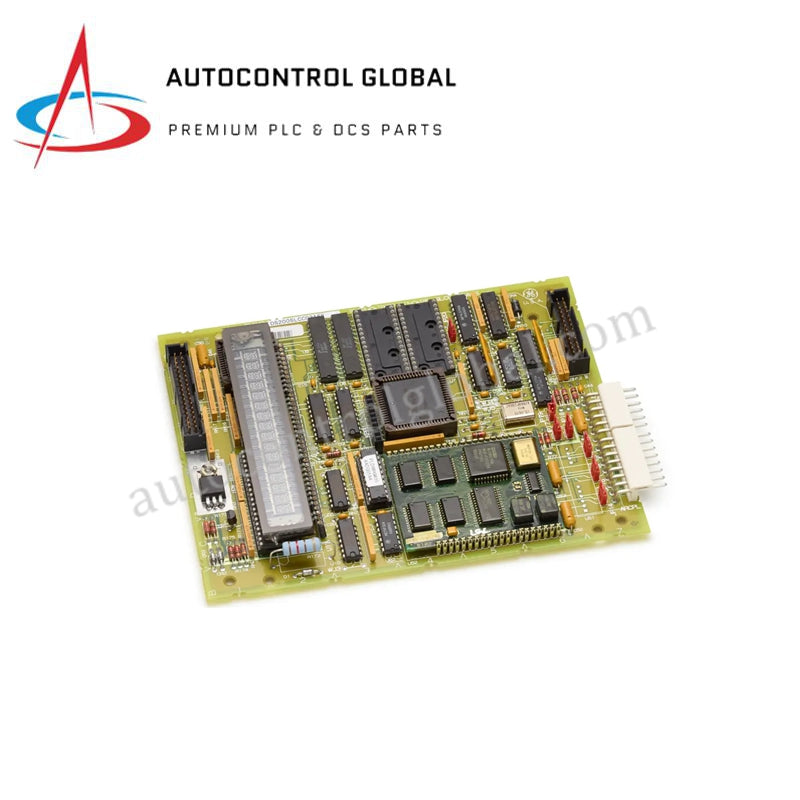

General Electric DS215SLCCG1AZZ01B Speedtronic Mark V/VI LAN Communication Board
The General Electric DS215SLCCG1AZZ01B, also cataloged as the DS215SLCC LAN Communication Card, operates as a dedicated hardware component for high-speed, fault-tolerant data exchange within Speedtronic Mark V and Mark VI control system networks.
Suffix Breakdown & Model Matrix
| Suffix / Variant | Revision Level Description | Hardware Configuration |
|---|---|---|
| DS215SLCC | Base Part Number | Standard LAN Communication Card Architecture |
| G1 | Group 1 Classification | Standard functional circuit layout for Speedtronic racks |
| AZZ | Factory Option / Functional Revision | Integrated dual Ethernet interfaces and memory buffer hardware |
| 01B | Hardware Revision Level | Conformal coated PCB layout for moisture and vibration resistance |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS215SLCCG1AZZ01B |
| Brand | General Electric |
| Origin | United States |
| Weight | 0.82 kg |
| Dimensions | 320 x 180 x 2.5 mm |
| Operating Temp | -25 to +65 deg C |
| Power Consumption | 6.8 W |
| Network Interfaces | 2x 10/100 Base-T Ethernet (RJ45) |
| Protocols Supported | Modbus TCP/IP, Ethernet Global Data (EGD), SRTP |
| Onboard Memory | 512 KB SRAM, 1 MB Flash |
| Energy Buffer | 220 uF hold-up capacitor (10 ms hold-up time) |
| Connector Type | 96-pin DIN gold-plated backplane connector |
| Operating System | QNX embedded environment |
Backplane Bus Communication and Network Throughput
The General Electric DS215SLCCG1AZZ01B manages high-speed LAN communications across the 96-pin DIN backplane bus communication velocity architecture. Operating on an embedded QNX environment, the module offloads network processing from the main controller rack by executing Modbus TCP/IP, SRTP, and Ethernet Global Data (EGD) protocols at 10/100 Mbps auto-negotiating speeds. A 220 uF hold-up capacitor provides an energy buffer ensuring 10 ms of operational stability during momentary voltage sags. Dual RJ45 ports establish deterministic, fault-tolerant paths across network rings to maintain real-time telemetry transfer without interrupting core control logic.
Frequently Asked Questions
Q: How does the module handle network protocol execution without impacting primary turbine control loops?
A: The card features its own embedded microprocessor running QNX, backed by 512 KB SRAM and 1 MB Flash memory. Protocol processing for Modbus TCP/IP, EGD, and SRTP occurs entirely onboard, transferring pre-processed packet arrays to the main rack backplane to preserve system cycle times.
Q: What physical indicators confirm proper backplane synchronization and Ethernet network activity?
A: Diagnostic onboard LEDs display real-time Ethernet link state, data transmission activity, built-in loopback test results, and hardware fault status. A steady link LED combined with activity pulsing indicates active EGD or Modbus TCP/IP data exchange with external supervisory networks.
Field Installation Guidelines
- ESD Protection: Wear a grounded ESD wrist strap clipped to an unpainted section of the cabinet chassis before opening anti-static packaging or touching card edge components.
- Power De-energization: Fully isolate power to the Mark V/VI rack prior to card installation or removal. Do not attempt hot-swapping; inserting the module into an energized backplane can damage the 96-pin gold-plated connector.
- Mechanical Insertion: Align the board edges with the card cage guide rails and push the module smoothly into place until the 96-pin DIN connector seats into the backplane socket. Secure all front panel retaining screws.
- Network Cabling Rules: Route industrial shielded twisted-pair (STP) Ethernet cables away from high-voltage field wiring or motor leads to mitigate electromagnetic interference on 10/100 Base-T links.
- Firmware Verification: Ensure the firmware version flashed to the onboard 1 MB memory matches the software revision running across the target Mark V or Mark VI controller rack to prevent bus initialization errors.
