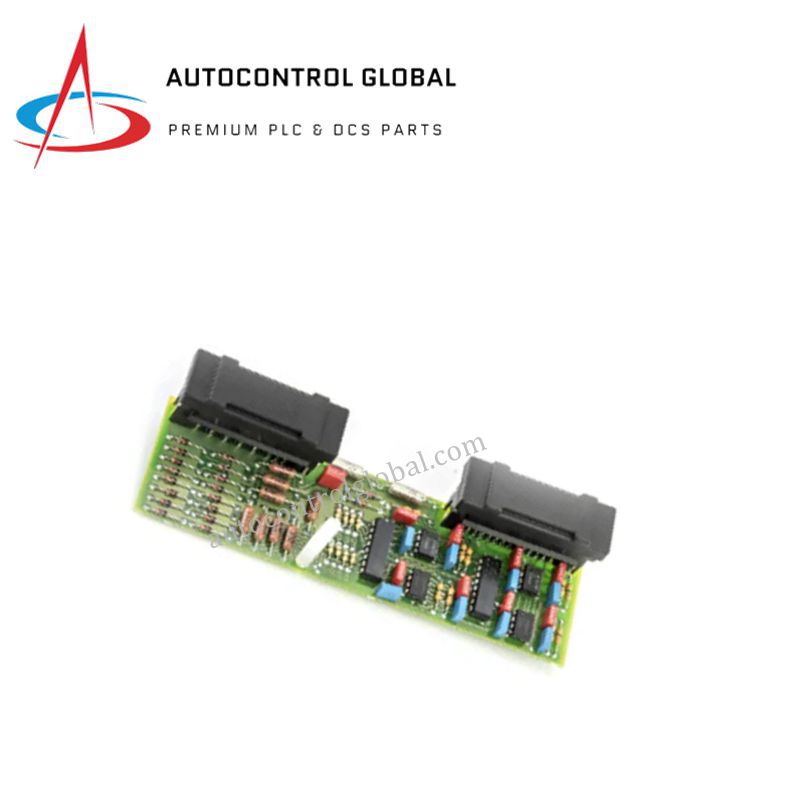

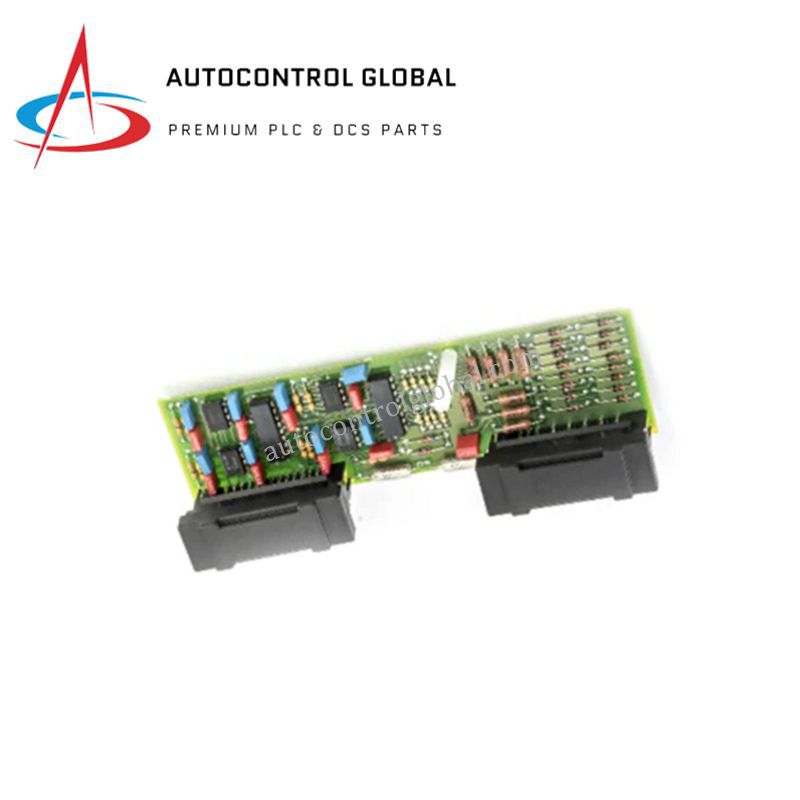

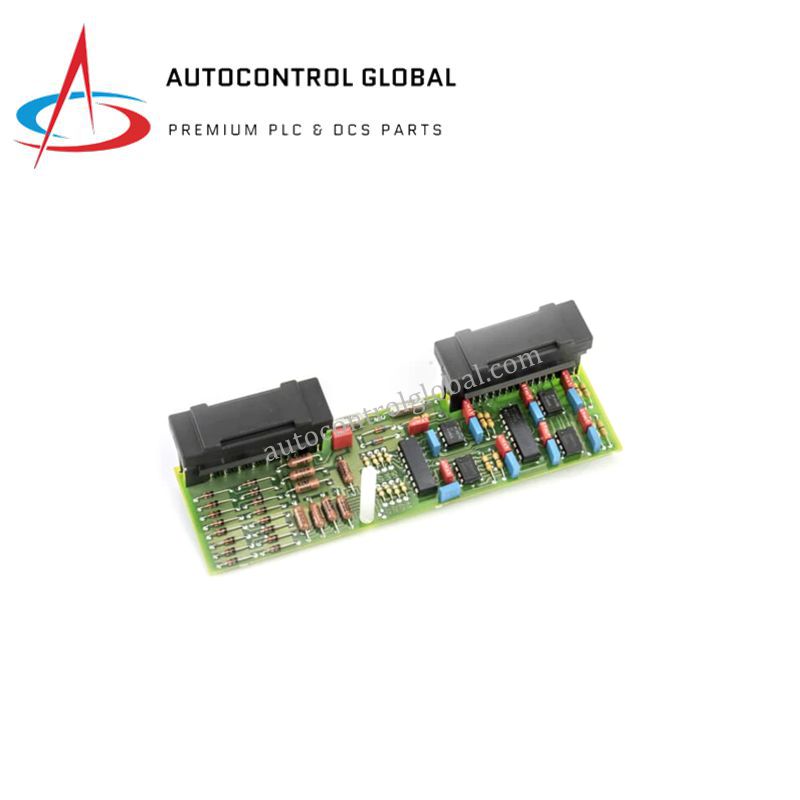

DSAI301 ABB | High-Precision Analog Input Module 8 Channels
Manufacturer: ABB
-
Part Number: DSAI301 57120001-CB/2
Condition：New with Original Package
Product Type: High-Precision Analog Input Module 8 Channels
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB DSAI301 is a high-precision 8-channel analog input unit designed for ABB Advant Master Process Control Systems. It supports bipolar, single-ended input signals ranging from ±10 V or ±20 mA, ensuring accurate real-time monitoring of industrial parameters like temperature, pressure, and flow.
With an exceptional 0.05% accuracy, the DSAI301 is ideal for demanding process control applications that require precise analog data acquisition. Its compact form factor and robust design make it suitable for distributed control systems in industrial automation.
This module is RoHS-exempt under Article 2(4) of the EU Directive 2011/65/EU, allowing deployment in specialized or legacy systems without regulatory limitations.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DSAI301 |
| Part Number | 57120001-CB/2 |
| System Compatibility | ABB Advant Master Process Control System |
| Input Channels | 8 analog inputs |
| Input Type | Bipolar, single-ended |
| Input Ranges | ±10 V, ±20 mA |
| Accuracy | 0.05% |
| Dimensions (L × W × H) | 135.9 mm × 45 mm × 28.8 mm |
| Net Weight | 0.085 kg |
| RoHS Compliance | Exempt under Directive 2011/65/EU Article 2(4)(c,e,f,j) |
| Country of Origin | Sweden |
| Application Areas | Industrial automation, process control, analog signal monitoring |
FAQ
Q1: How many channels does the DSAI301 support?
A1: The DSAI301 provides 8 analog input channels.
Q2: What types of input signals are compatible?
A2: It supports bipolar, single-ended signals of ±10 V or ±20 mA.
Q3: What is the accuracy of this analog input unit?
A3: The DSAI301 offers 0.05% accuracy, suitable for precise industrial measurements.
Q4: Which control system is compatible with this module?
A4: Fully compatible with the ABB Advant Master Process Control System.
Q5: Is this module RoHS-compliant?
A5: It is RoHS-exempt under Article 2(4), making it ideal for legacy systems.
