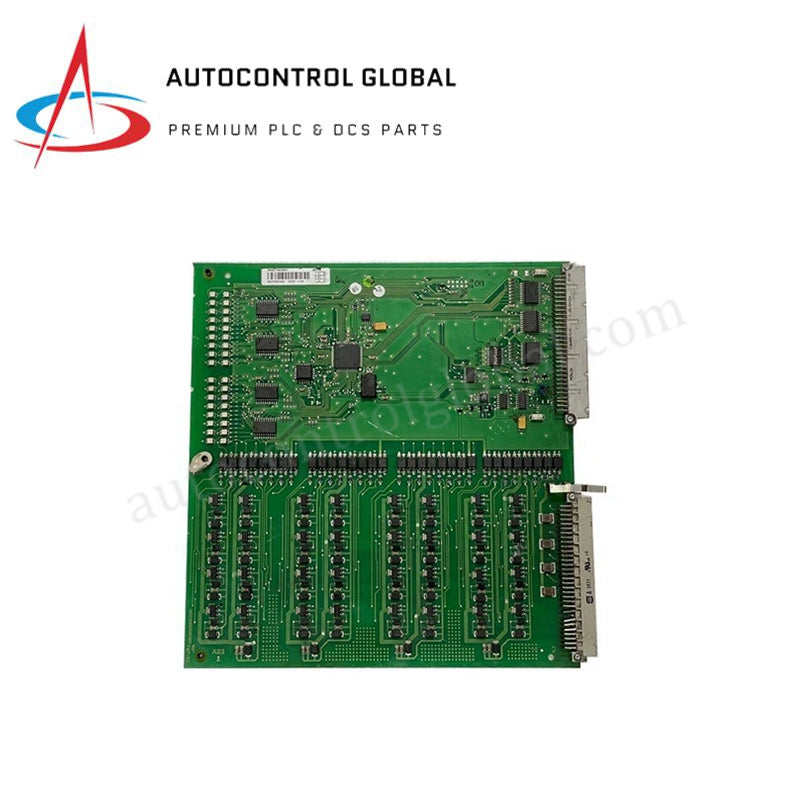

DSDO115A ABB 3BSE018298R1 Advant S100 Digital Output Module
Manufacturer: ABB
-
Part Number: DSDO115A
Condition：New with Original Package
Product Type: Digital Output Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB DSDO115A Digital Output Module
The ABB DSDO115A (Part Number: 3BSE018298R1) is a 32-channel digital output module developed for ABB Advant S100 I/O systems. Operating on a 24 VDC nominal output voltage, it drives actuators, external relays, and solenoids in distributed control architectures. Each current-sinking output channel handles up to 0.5 A with a processing response time of 550 us and a maximum output switching frequency of 100 Hz.
Protection and Electrical Isolation
The module incorporates channel-level short-circuit and overload protection to shield internal circuitry from field wiring faults. Galvanic isolation separates field-side signals from logic circuits to prevent ground loops and electrical interference in noise-prone industrial control panels.
Physical and Environmental Specifications
The module measures 324 mm in length, 22.5 mm in height, and 234 mm in width, with a net weight of 0.32 kg. Designed for standard control enclosure mounting, it operates within an ambient temperature range of 0 deg C to +50 deg C and handles relative humidity up to 90% (non-condensing).
| Parameter | Specification |
|---|---|
| Model | DSDO115A |
| Brand | ABB |
| Part Number | 3BSE018298R1 |
| Product Type | Digital Output Module |
| System Compatibility | Advant S100 I/O |
| Number of Channels | 32 current-sinking channels |
| Output Voltage | 24 VDC |
| Max Output Current | 0.5 A per channel |
| Processing Speed | 550 us |
| Output Frequency | 100 Hz |
| Protection Features | Short-circuit and overload protection, galvanic isolation |
| Operating Temperature | 0 deg C to +50 deg C |
| Relative Humidity | <= 90 % (non-condensing) |
| Dimensions (L x H x W) | 324 mm x 22.5 mm x 234 mm |
| Net Weight | 0.32 kg |
| Country of Origin | Sweden |
Frequently Asked Questions
Q: What type of digital outputs does the ABB DSDO115A provide? A: The module provides 32 current-sinking digital output channels, each rated for 24 VDC and up to 0.5 A current.
Q: What is the processing response speed of the DSDO115A module? A: It features a processing speed of 550 us with a maximum output switching frequency of 100 Hz.
Q: Which I/O platform is compatible with the ABB DSDO115A? A: It is designed specifically for integration into ABB Advant S100 I/O systems.
