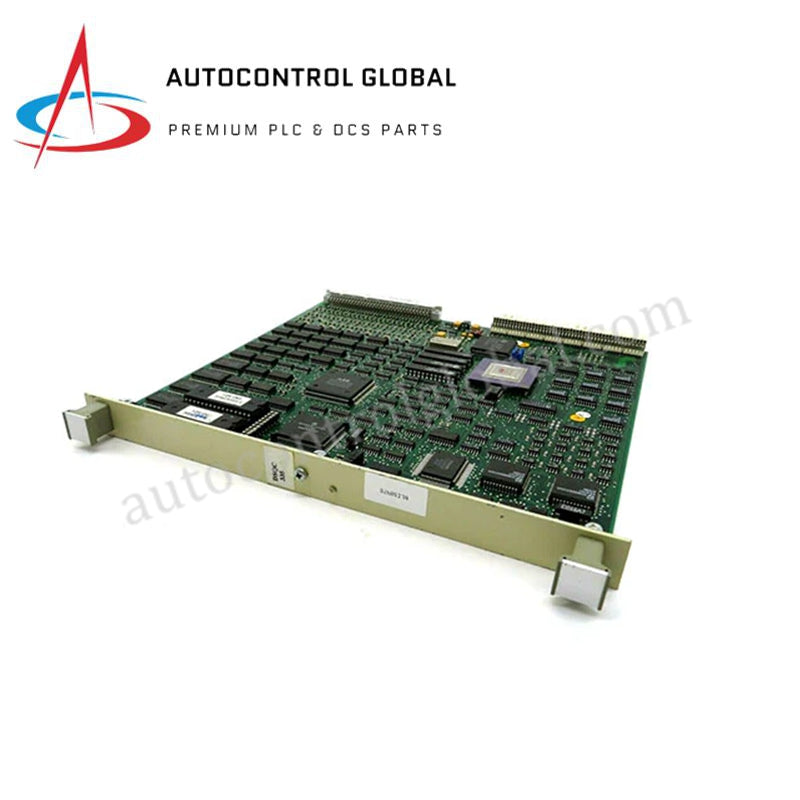

DSDP140A ABB AC 800M Pulse Counting Module
Manufacturer: ABB
-
Part Number: DSDP140A
Condition：New with Original Package
Product Type: Pulse Counter Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB DSDP140A Pulse Counting Module
Configured for high-speed encoder pulse counting and mixed signal control in AC 800M automation platforms, the ABB DSDP140A (DSDP140A Digital & Analog Pulse Input/Output Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSDP140A |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.44 kg |
| Dimensions | 209.7 x 18 x 225 mm |
| Operating Temp | -20 to +70 deg C (Extended: -40 to +85 deg C) |
| Power Consumption | 2.1 W standby, 3.5 W full load (via 24 VDC backplane) |
| Encoder Channels | 3 position loop input channels (±15 mA current range) |
| Pulse Frequency | Up to 80 kHz max |
| Discrete Inputs | 2 DI, 24 VDC sinking |
| Discrete Outputs | 4 DO, 24 VDC sourcing |
| Analog Output | 1 AO, 11-bit + sign, configurable 0-10 VDC or 0-±20 mA |
| Isolation | 500 VAC channel-to-channel and channel-to-backplane |
| Connectors | Dense DIN connector and RS-485 terminal block |
Backplane Bus Communication Velocity & I/O Density Scaling
The ABB DSDP140A processes high-frequency position loop feedback directly at the hardware layer, offloading counter calculations from the central CPU. Integrating three encoder channels operating up to 80 kHz alongside discrete and analog channels optimizes I/O density scaling inside the AC 800M rack enclosure. High-speed logic bus arbitration maintains rapid backplane bus communication velocity, sending updated 11-bit positional and status values to PM850, PM860, PM861, or PM865 processors. Internal memory management ensures full firmware flash compatibility, maintaining deterministic scan cycles and mitigating data buffer overruns during high-frequency pulse inputs.
Frequently Asked Questions
Q: How does the 500 VAC isolation on the DSDP140A affect field wiring safety?
A: Galvanic isolation rated at 500 VAC protects the internal logic circuitry and backplane bus from ground loops and electrical transients that may enter via the encoder input or field power cables.
Q: What CPUs are directly compatible with the DSDP140A in an AC 800M rack configuration?
A: The card interfaces directly via the standard backplane with ABB AC 800M controllers, including PM850, PM860, PM861, and PM865 CPU units.
Q: How does the module handle signal configuration for the analog output channel?
A: The single analog output channel can be configured via software parameterization to operate in either voltage mode (0-10 VDC) or bipolar current mode (0-±20 mA) with 11-bit plus sign resolution.
Field Installation Guidelines
- Align the module card edge with the guide rails of the AC 800M I/O rack and push firmly until the dense DIN connector seats into the backplane socket.
- Connect field wiring to the RS-485 terminal blocks using twisted-shielded pair cable for encoder input signals to prevent electromagnetic interference.
- Ground signal cable shields at a single point on the enclosure grounding bar to prevent ground currents across the 500 VAC isolation barrier.
- Verify external power supply stability within the specified 21.6 to 26.4 VDC operating window before powering up the backplane.
- Maintain vertical clearance around the module chassis to ensure adequate air circulation and prevent thermal buildup beyond 70 deg C during full load operation.
