DSMB144 ABB | Advant Master Control System Memory Module
Manufacturer: ABB
-
Part Number: DSMB144
Condition：New with Original Package
Product Type: Advant Master Control System Memory Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description

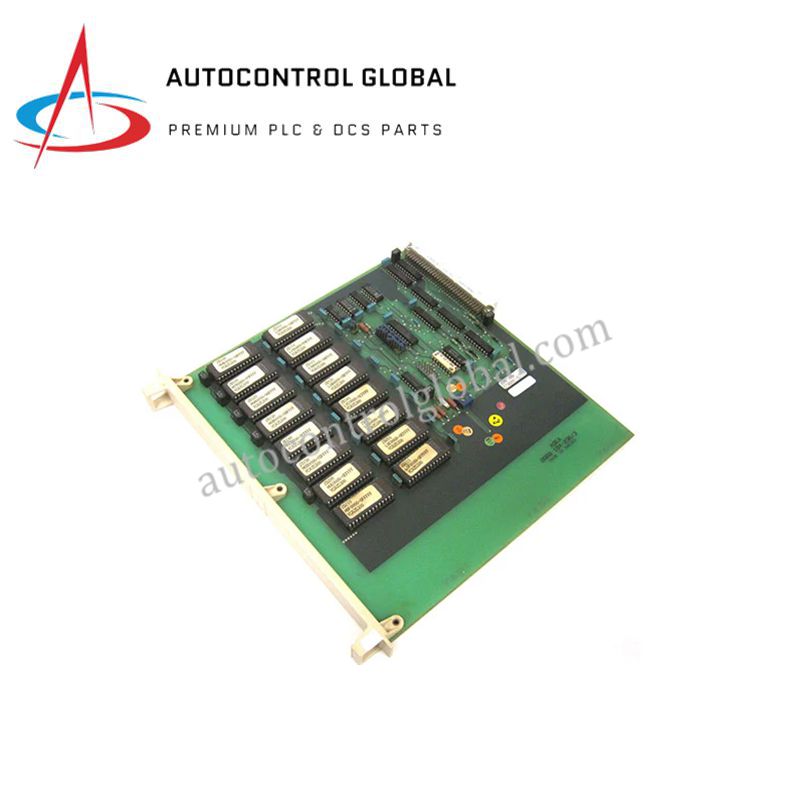

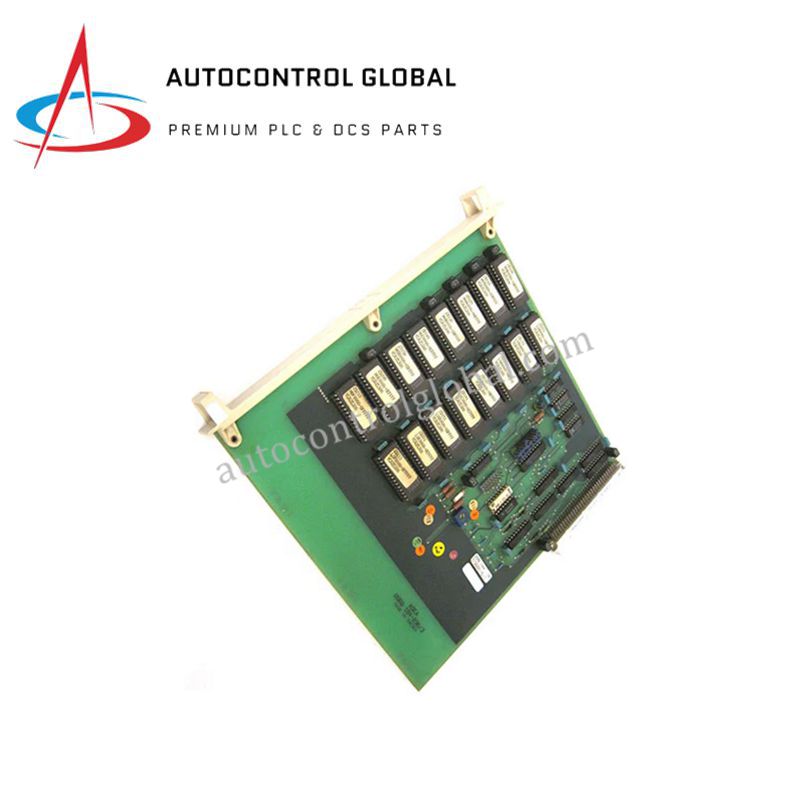

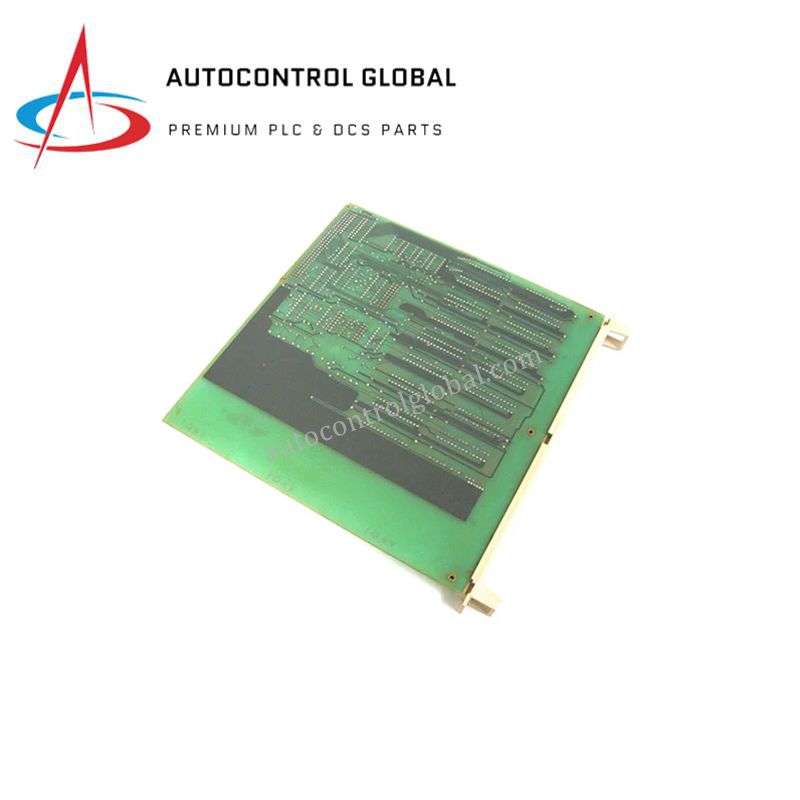

The ABB DSMB144 is a memory board designed for ABB Advant Master Process Control Systems, including MasterPiece 200 and 200/1 series. It contains 16 EPROMs of 32 KB each, providing non-volatile storage for control programs, configuration data, and system parameters.
This module ensures reliable memory retention and system integrity in industrial automation environments. Its robust design supports legacy and specialized applications, exempt from the EU RoHS Directive 2011/65/EU under Articles 2(4)(c), (e), (f), and (j).
The DSMB144 is ideal for industrial control systems, data retention, and memory-critical applications, offering a compact, reliable solution for process automation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | DSMB144 |
| Part Number | 57360001-EL |
| Product Type | Memory Board |
| Memory Configuration | 16 EPROMs × 32 KB each |
| PROMs Included | None |
| System Compatibility | ABB Advant Master, MasterPiece 200/200/1 |
| Dimensions (L × W × H) | 220 mm × 160 mm × 80 mm |
| Weight | 0.8 kg |
| RoHS Compliance | Exempt under Directive 2011/65/EU Article 2(4)(c), (e), (f), and (j) |
| Application Areas | Industrial automation, control system memory storage |
FAQ
Q1: What is the function of the DSMB144?
A1: The DSMB144 stores control programs, system parameters, and configuration data reliably.
Q2: Which systems are compatible with DSMB144?
A2: It works with ABB Advant Master and MasterPiece 200/200/1 series.
Q3: How many EPROMs are included?
A3: The board contains 16 EPROMs of 32 KB each.
Q4: What are the board dimensions and weight?
A4: The DSMB144 measures 220 × 160 × 80 mm and weighs approx. 0.8 kg.
Q5: Is this RoHS compliant?
A5: The module is exempt from RoHS under EU Directive 2011/65/EU Articles 2(4)(c), (e), (f), and (j).
