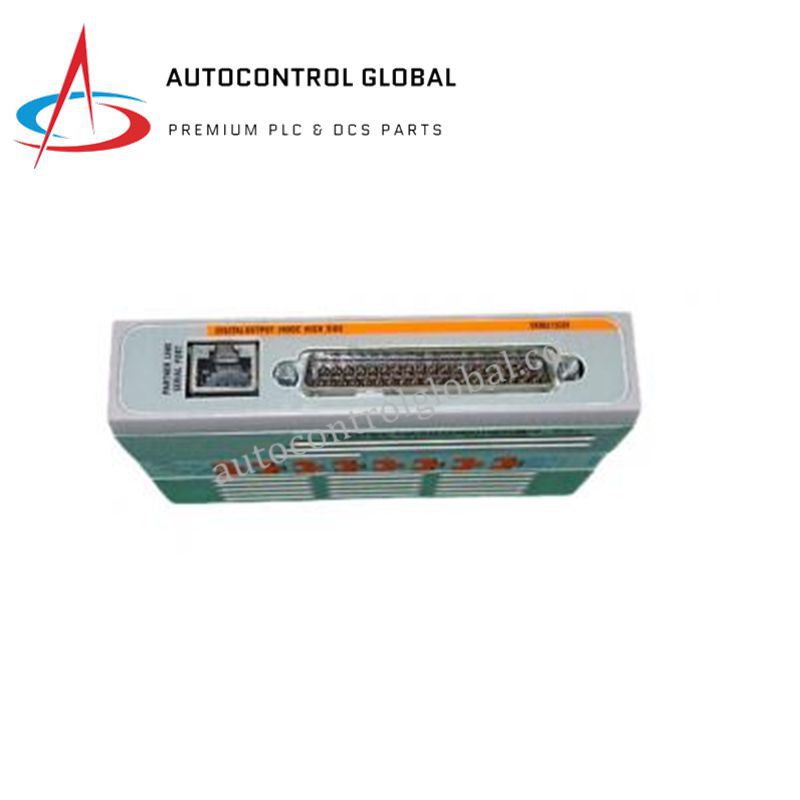

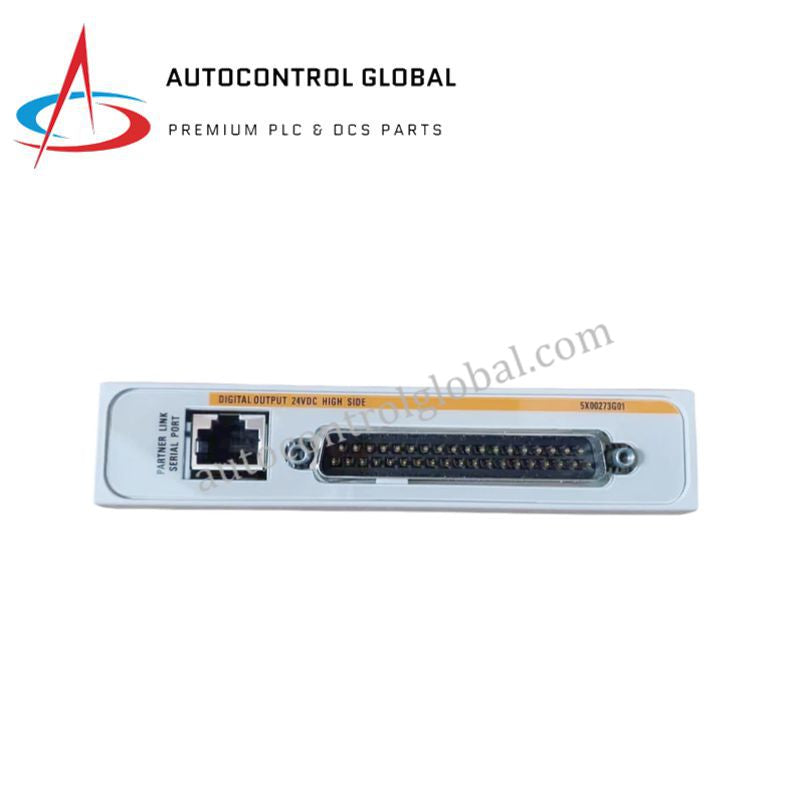

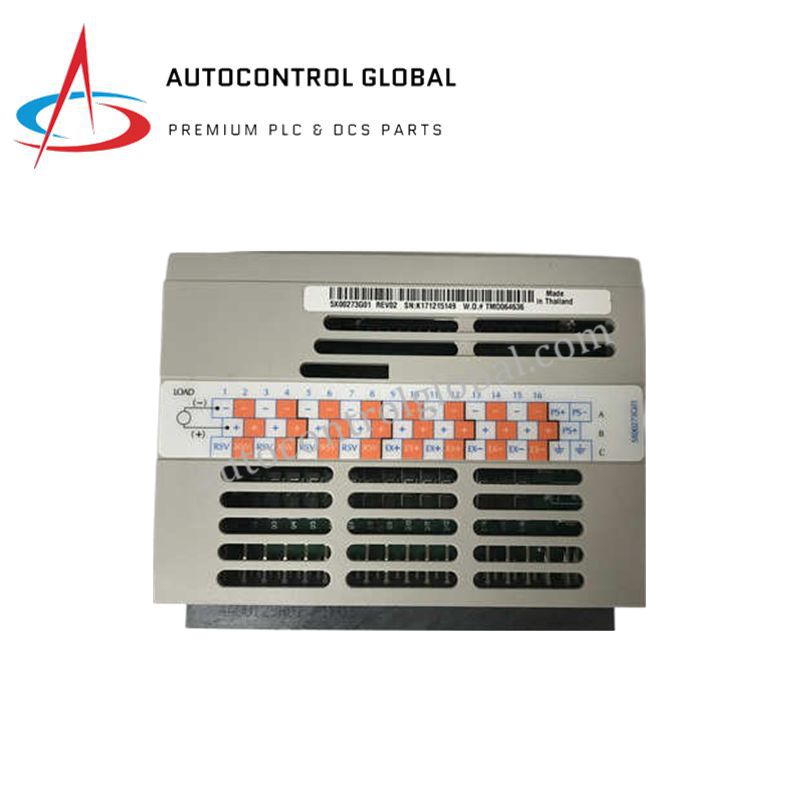

Emerson 5X00273G01 | Ovation Control System I/O Module
Manufacturer: Emerson
-
Part Number: 5X00273G01
Condition：New with Original Package
Product Type: Control System I/O Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Emerson Ovation 5X00273G01 is a Switching Input/Output Module engineered for digital signal control within the Ovation DCS platform. It manages binary inputs and outputs, enabling precise monitoring of relay contacts, switch states, and alarms while ensuring reliable field device actuation.
With RS-485 communication and support for both Modbus RTU and custom protocols, the 5X00273G01 integrates seamlessly with third-party systems. Built-in protection features such as reverse connection and overvoltage safeguards enhance durability in demanding applications. Its hot-swappable design ensures uninterrupted operation during maintenance.
This module is widely deployed in power generation, oil and gas, chemical processing, and water treatment industries, where reliable digital control is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 5X00273G01 |
| Manufacturer | Emerson |
| Series | Ovation |
| Type | Switching Input/Output (Digital I/O) Module |
| Signal Type | Digital ON/OFF input and output |
| Communication | RS-485 serial bus |
| Supported Protocols | Modbus RTU, custom serial protocols |
| Input Voltage | 24 V DC nominal |
| Output Voltage | 24 V DC high-side switching |
| Output Current | 20 mA (nominal), 2A per channel, relay load rating 10A @ 24V DC |
| Relay Contacts | SPDT (Single Pole Double Throw) |
| Protection Features | Reverse connection protection, overvoltage protection |
| Mounting Type | Rack-mounted or panel-mounted |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 4.3 × 2.1 × 0.8 in (109 × 53 × 20 mm) |
| Weight | 0.3 kg |
| Hot-Swappable | Yes – supports replacement without shutdown |
| Certifications | CE, UL, RoHS compliant |
FAQ
Q1: Is the Emerson 5X00273G01 module original and brand new?
A1: Yes, the 5X00273G01 is factory-original, with a 12-month warranty and Radwell coverage.
Q2: What type of signals does this module handle?
A2: It supports digital ON/OFF inputs and outputs, ideal for switches, relays, and alarms.
Q3: Can it integrate with third-party systems?
A3: Yes, it supports RS-485 with Modbus RTU and custom serial protocols, ensuring compatibility.
Q4: How much current can the outputs handle?
A4: The 5X00273G01 supports up to 2A per channel with 10A relay load rating at 24 VDC.
Q5: Does this module support hot-swapping?
A5: Yes, it is hot-swappable, allowing replacement without system downtime.
Q6: What environments is this module best suited for?
A6: It is commonly used in power generation, oil & gas, chemical processing, and water treatment.
