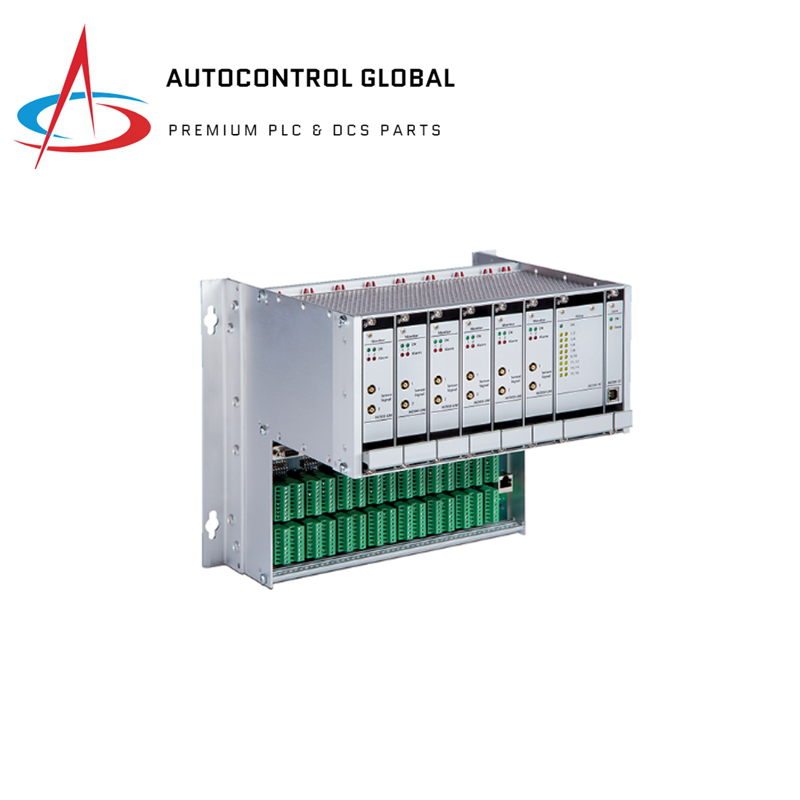

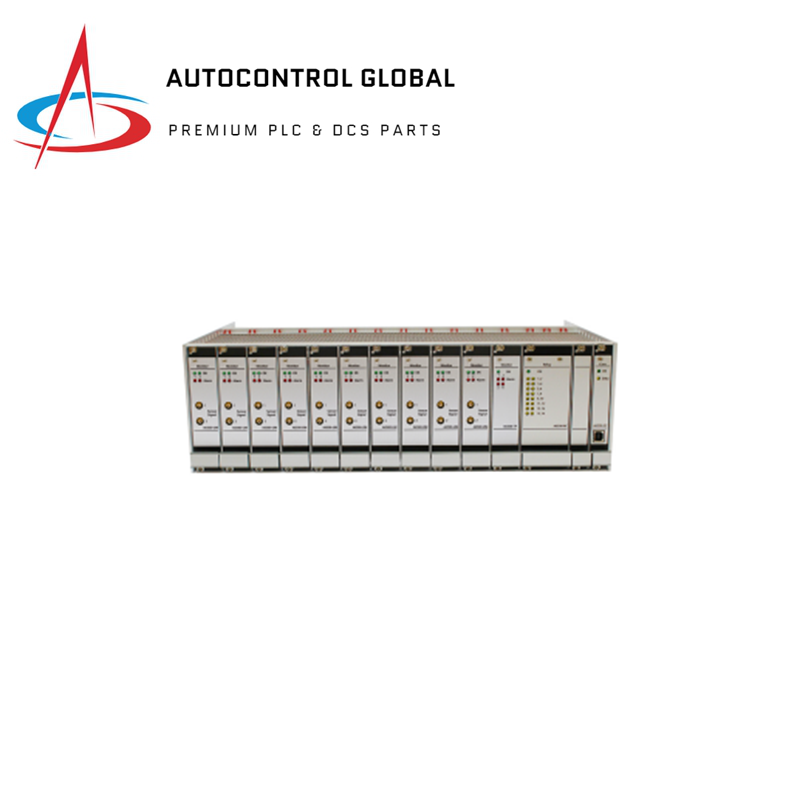

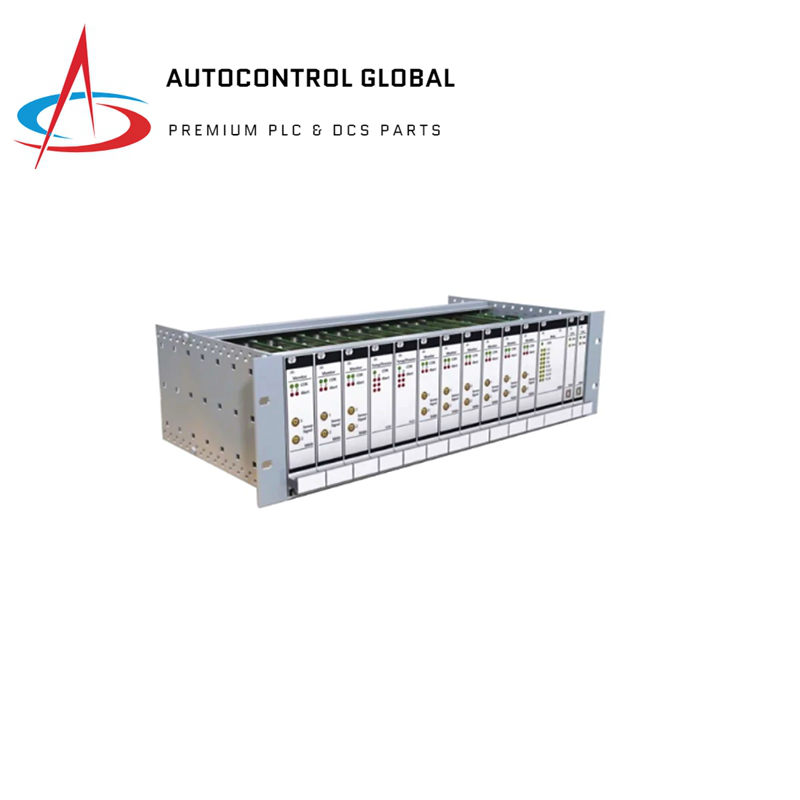

Emerson AMS 6500 ATG Online Protection System

Description

The AMS 6500 ATG protection system is an advanced protection and prediction system designed to replace outdated protection systems efficiently. It enables cost-effective online predictive monitoring for critical rotating machinery assets, including steam turbine generators, gas turbines, boiler feed pumps, offshore compressors, pipeline turbo compressors, chemical industry compressors, turbo exhausters, blowers, and boosters.

Specifications

• Analog Channels: Up to 44 (2 full ATG racks)
• Tachometer Channels: Same as analog channels
• Sampling Rate: 48 kHz
• ADC Resolution/Fmax: 24 bit / 18.75 kHz
• Lines of Resolution (via Modbus): 400
• Waveform Samples (via Modbus): 1024
• Input Type: Refer to A6500-UM specifications
• Channel Scan: 2 up to 44 channels simultaneously
• High Frequency Detection: PeakVue, PeakVue Waveform (OPC-UA, Modbus TCP)
• Communication with AMS Machine Works: Ethernet (Data Transfer Service to database)

Features

• Embedded Predictive Diagnostics: Includes PeakVue™ technology, order analysis, band analysis, and energy in bands.
• Advanced Analysis Tools: Communicates with AMS Machine Works asset performance management software platform.
• Versatile Communication Interfaces: Interfaces with other applications via OPC UA, Modbus TCP/IP, or Modbus RTU.
• User-Friendly Configuration: Machine Studio Configuration Software offers a familiar, intuitive user interface.
• Mobile Access: The ATG View Mobile Application provides asset health information anywhere on the plant network.
• Warranty: 42-month warranty.
• Environmental Resistance: Airborne contaminants resistance class G3 according to ISA-S71.04.
• Time Synchronization: SNTP (Simple Network Time Protocol) synchronization.
