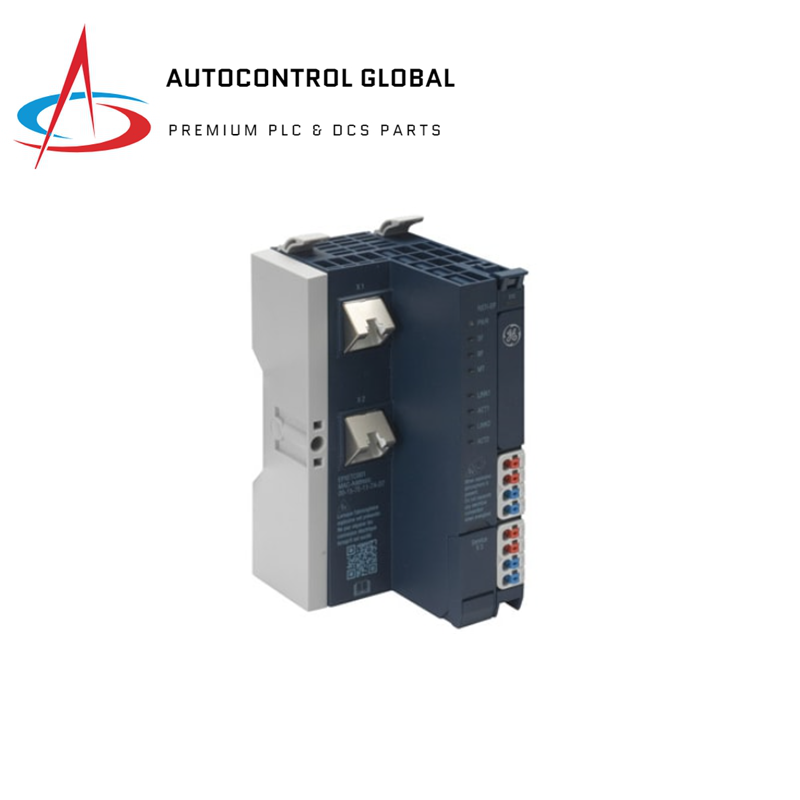

Emerson EPXPNS001 RSTi-EP PROFINET Network Adapter

Specifications

• Part Number: EPXPNS001
• Network Adapter / Use: Modbus
• Number of Modules: up to 64 active
• Connection: 2x RJ-45

Features

• Extended operating temperature range
• Enhanced diagnostics
• High-speed system bus reads up to 256 DI/DOs in 20 ms
• DIN rail mounted
• Built-in Web Server for diagnostic information and firmware update through Ethernet and micro USB port
• Supports Media Redundancy Protocol (MRP) Client mode operation
• Support for daisy-chain/line, star, or ring (MRP) technologies
• Two switched Ethernet ports; 8-conductor RJ-45 shielded twisted pair 10/100 Mbps copper interfaces
• Fast start-up < 500 ms with a maximum of 10 modules
