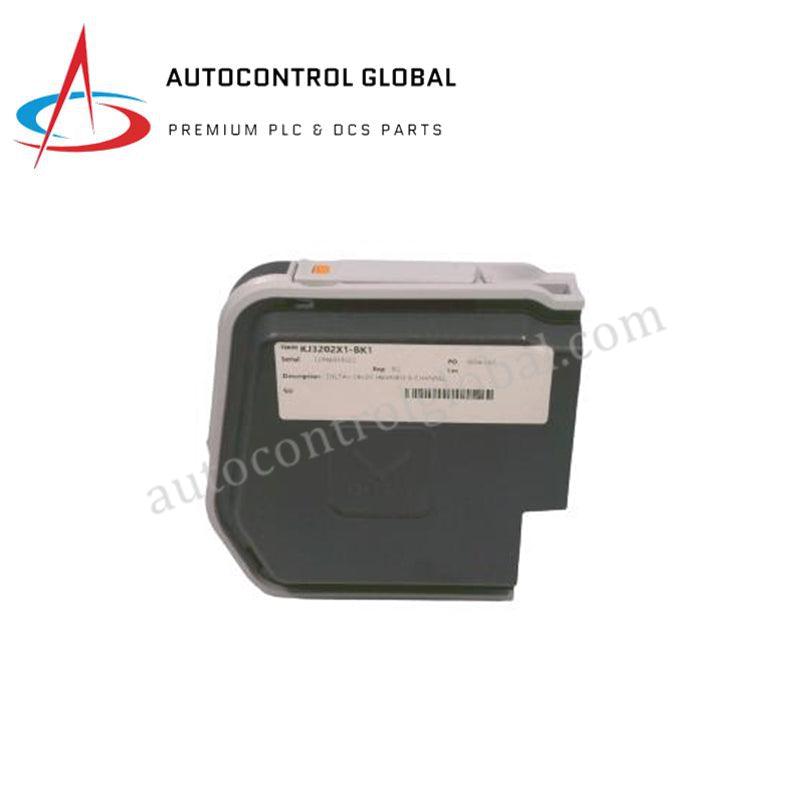

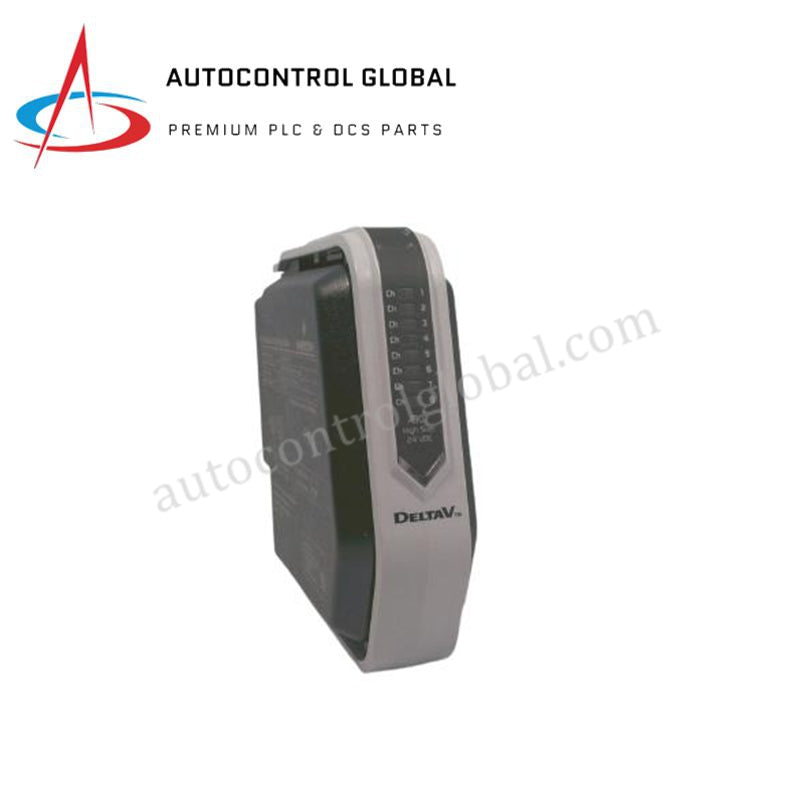

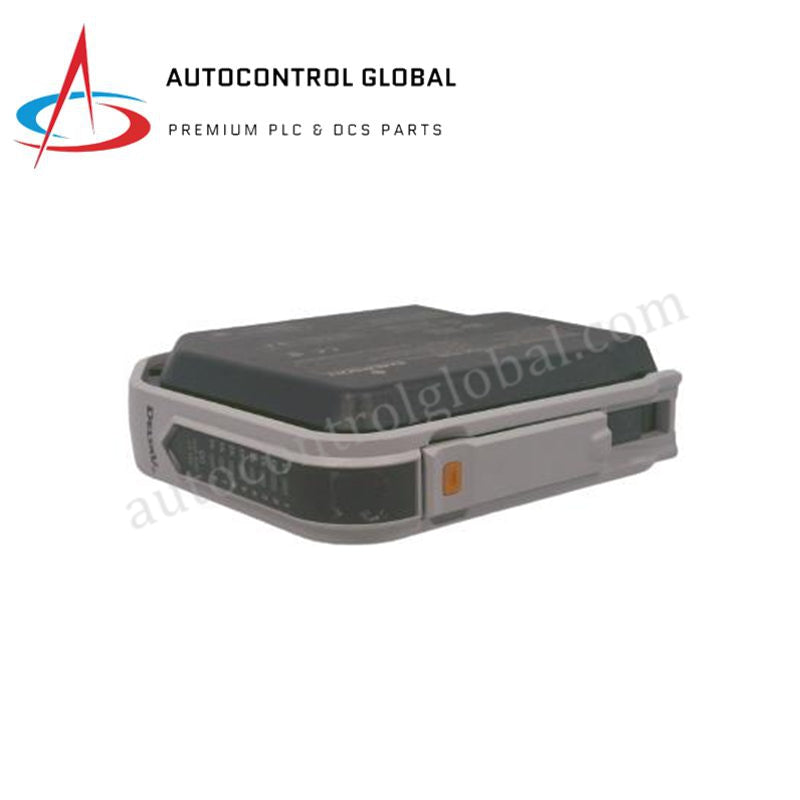

Emerson KJ3202X1-BK1 DeltaV Digital Output Module
Manufacturer: Emerson
-
Part Number: KJ3202X1-BK1
Condition：New with Original Package
Product Type: Digital Output Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Emerson KJ3202X1-BK1 S-Series Digital Output Module
Configured for high-side digital switching in DeltaV S-Series systems, the Emerson KJ3202X1-BK1 (KJ3202X1-BK1 Digital Output Module) provides direct physical execution of 24 VDC signal distribution to field-mounted solenoids, relay coils, and indicators.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3202X1-BK1 |
| Brand | Emerson |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | Standard DeltaV S-Series I/O carrier form factor |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 12 VDC at 150 mA (Local Bus) |
| Output Channels | 8 isolated high-side channels |
| Output Rating | 30 VDC at 1 A per channel (3 A per card) |
Channel-to-channel isolation
The KJ3202X1-BK1 incorporates robust galvanic isolation between output channels and the system bus, ensuring that electrical faults on field wiring do not propagate to the controller core. This isolation architecture maintains signal integrity and prevents common-mode noise injection across the 8-channel array. Each channel employs high-side switching circuitry, which ensures that field devices remain connected to the positive rail, satisfying safety requirements for hazardous area installations (Zone 2/Class I Div 2). The module integrates with the DeltaV redundant bus architecture, providing automatic fault detection and diagnostic monitoring of output states to facilitate rapid identification of open or shorted field circuits.
Frequently Asked Questions
Q: Can the KJ3202X1-BK1 be hot-swapped during active process operations?
A: Yes, the module supports hot-swapping capability. However, in hazardous area applications, field power must be de-energized before insertion or removal of the module to comply with safety protocols.
Q: Is a rotary keying system required for this module installation?
A: Yes, correct rotary keying must be configured on the terminal block before installation to prevent mechanical insertion into an incompatible carrier slot or mismatched field wiring harness.
Field Installation Guidelines
- Carrier Mounting: Ensure the S-Series carrier slot is clean and free of debris. Align the module with the carrier guide rails and seat the unit firmly until the locking mechanism engages.
- Keying Configuration: Set the mechanical rotary keys on the terminal block to match the KJ3202X1-BK1 keying pattern. Failure to align these keys will prevent proper connection and may damage the terminal block interface.
- Shielding and Grounding: Field wiring must use shielded twisted-pair cables to mitigate electromagnetic interference. Terminate cable shields at the designated ground bars on the I/O carrier to ensure compliance with EMI/RFI specifications.
- Field Power: De-energize the 30 VDC bussed field power before performing any maintenance or wiring changes on the terminal block to prevent accidental arc discharge or short circuits in the field loop.
