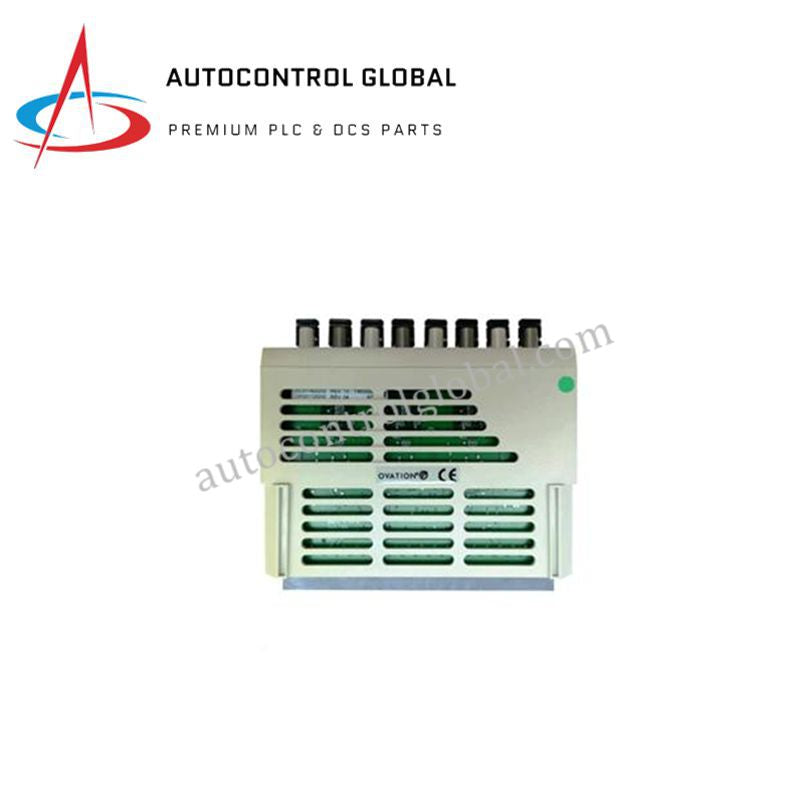

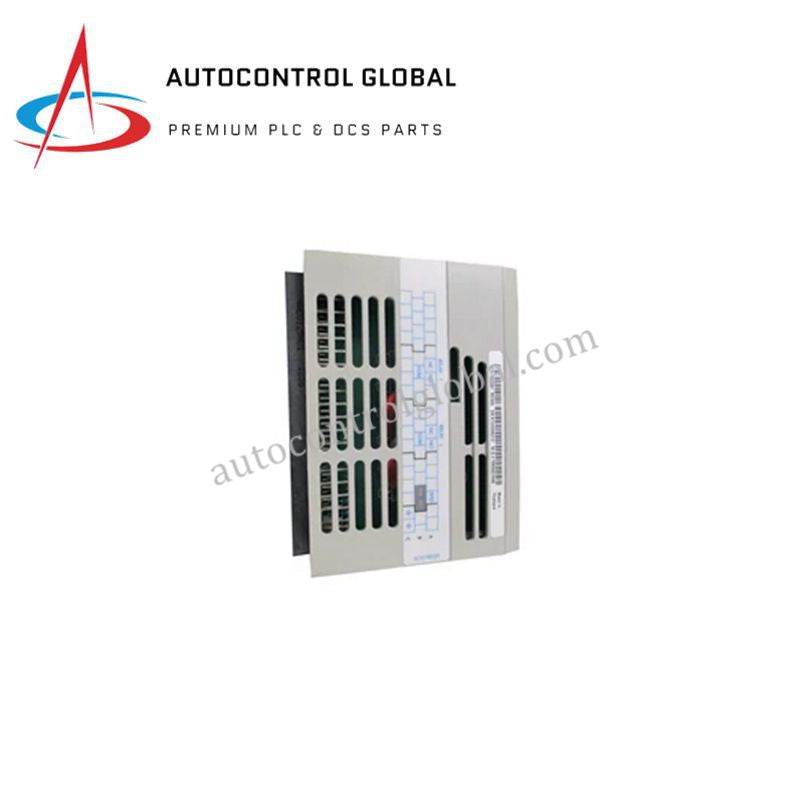

Emerson Ovation 1C31132G01 | AO Card for Precision Temperature Signals
Manufacturer: Emerson
-
Part Number: 1C31132G01
Condition：New with Original Package
Product Type: AO Card for Precision Temperature Signals
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Ovation 1C31132G01 is a high-accuracy Thermocouple Analog Input Module designed for precise low-level voltage signal acquisition. It interfaces directly with thermocouple electronics modules to deliver reliable temperature measurements.
This module includes cold junction compensation (CJC) to ensure accuracy and provides electrical isolation between channels and logic circuits. Its hot-swappable design enables uninterrupted operation in mission-critical applications. The 1C31132G01 is widely deployed in power generation, chemical processing, metallurgy, and glass manufacturing, where precise thermal monitoring is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 1C31132G01 |
| Type | Thermocouple Analog Input Module |
| Input Channels | 8 thermocouple inputs + 1 cold junction compensation (CJC) channel |
| Compatible Signal Ranges | ±20 mV, ±50 mV, ±100 mV (based on paired electronics module) |
| Resolution | ±0.5°C (±0.9°F) |
| Accuracy | ±0.5°C over 0°C to +70°C |
| Sampling Rate | Typical: 300 ms; Maximum: 600 ms |
| Isolation | 1000 V AC/DC between input channels and logic circuits |
| Noise Rejection | Common-mode: 120 dB; Normal-mode: 60 dB at 50/60 Hz |
| Cold Junction Compensation | Integrated sensor for automatic temperature offset correction |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to 185°F) |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Mounting Type | Rack-mounted; requires terminal block cover (e.g., 1C31207H01) |
| Compatible Electronics Modules | 1C31113G01 (±20 mV), 1C31113G02 (±50 mV), 1C31113G03 (±100 mV) |
| Shipping Weight | 2 Kg |
| Certifications | CE, UL, RoHS compliant |
FAQ
Q1: Is the Ovation 1C31132G01 module new and original?
A1: Yes, the 1C31132G01 is factory-new and original, with a standard 1-year warranty.
Q2: How many thermocouple channels does this module support?
A2: It supports 8 thermocouple inputs plus 1 cold junction compensation channel.
Q3: What is the accuracy of temperature measurements?
A3: The module provides ±0.5°C accuracy over 0°C to +70°C.
Q4: Can it be replaced without shutting down the system?
A4: Yes, the 1C31132G01 supports hot-swappable operation.
Q5: What industries typically use this module?
A5: It is widely used in power generation, chemical processing, metallurgy, and glass manufacturing.
Q6: What is the compatible electronics module for ±50 mV input range?
A6: The 1C31113G02 electronics module supports ±50 mV input signals.
