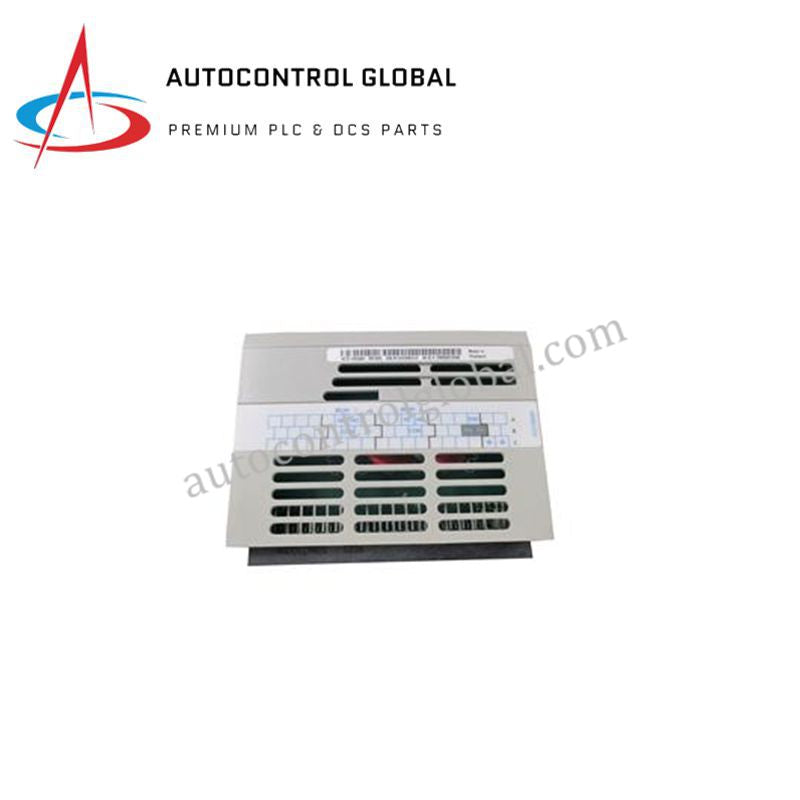

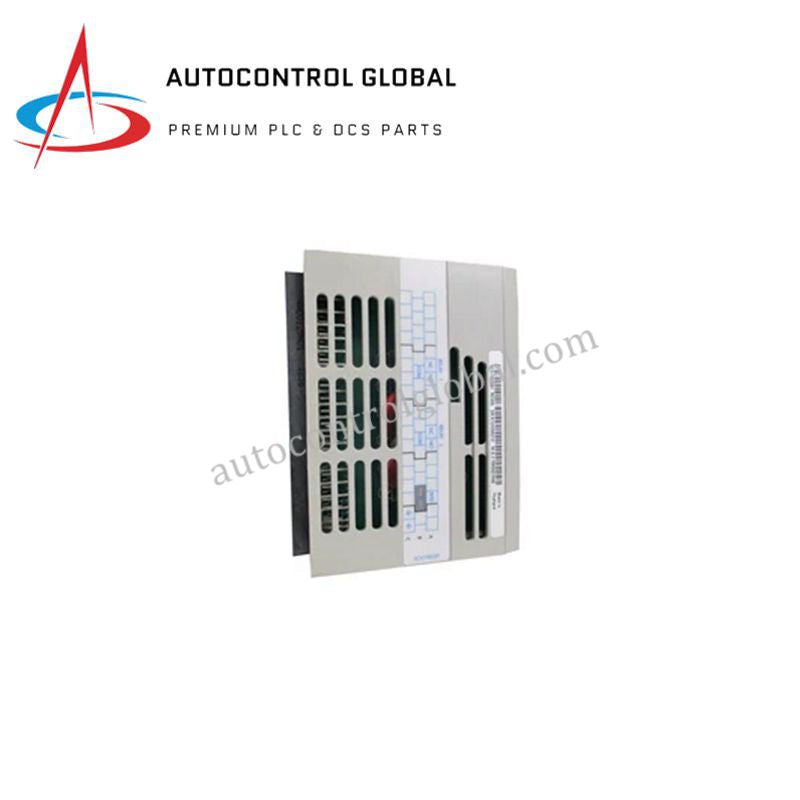

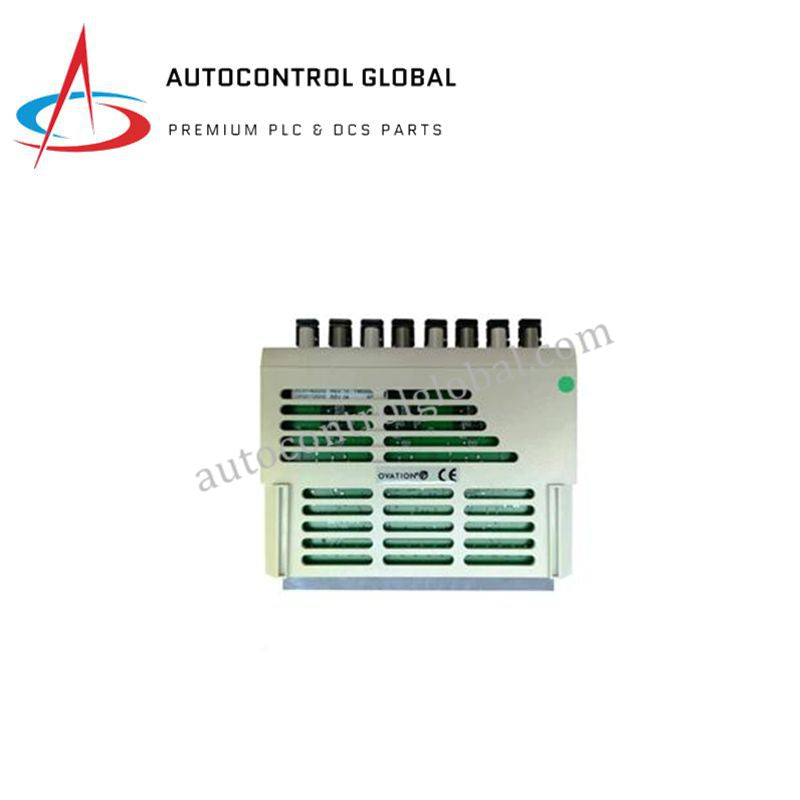

Emerson Ovation 1C31161G02 | RTD Input Personality Module
Manufacturer: Emerson
-
Part Number: 1C31161G02
Condition：New with Original Package
Product Type: RTD Input Personality Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
OVATION 1C31161G02 High-Speed Analog Input Personality Module
The OVATION 1C31161G02 is a specialized Personality Module from Emerson designed to interface with high-speed analog input electronics within the Ovation DCS. It acquires low-level ±1 mA current signals with high resolution and rapid sampling, making it essential for critical industrial applications such as power generation, chemical processing, water treatment, and manufacturing automation.
This module provides cold junction compensation support, integrated surge protection, and signal conditioning, ensuring accurate and reliable analog signal capture. Its rack-mounted design allows seamless integration into Ovation I/O systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 1C31161G02 |
| Type | Personality Module for High-Speed Analog Input |
| Input Type | Field-powered current input |
| Input Range | ±1 mA |
| Resolution | 14-bit analog-to-digital conversion |
| Sampling Rate | 50 or 60 samples per second |
| Accuracy | ±0.5°C over 0°C to 70°C (±0.9°F over 32°F to 158°F) |
| Cold Junction Compensation | Supported via paired electronics module |
| Surge Protection | Integrated to safeguard input circuits |
| Power Supply | Drawn from 24 V DC main and auxiliary backplane supplies |
| Mounting Type | Rack-mounted within Ovation I/O chassis |
| Certifications | CE, RoHS certified |
| Dimensions | 6 cm × 12.5 cm × 6.3 cm |
| Weight | 0.9 kg |
FAQ
Q1: Is the OVATION 1C31161G02 brand new?
A1: Yes, it is full new original factory equipment.
Q2: What is the input range of this module?
A2: It supports ±1 mA low-level current signals for high-speed acquisition.
Q3: Does it support cold junction compensation?
A3: Yes, CJC is supported via the paired high-speed analog electronics module.
Q4: Can it be replaced without shutting down the system?
A4: Yes, the module is hot-swappable for convenient maintenance.
Q5: What industries commonly use this module?
A5: Power generation, chemical processing, water treatment, and manufacturing automation.
Q6: How accurate is the 1C31161G02 module?
A6: It provides ±0.5°C accuracy over 0°C to 70°C range with 14-bit resolution.
