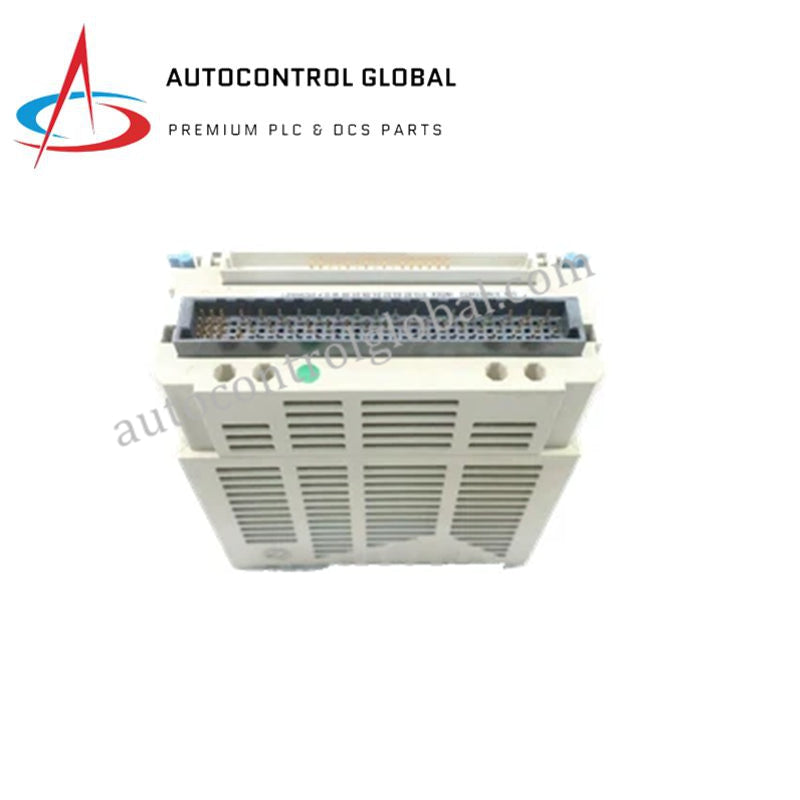

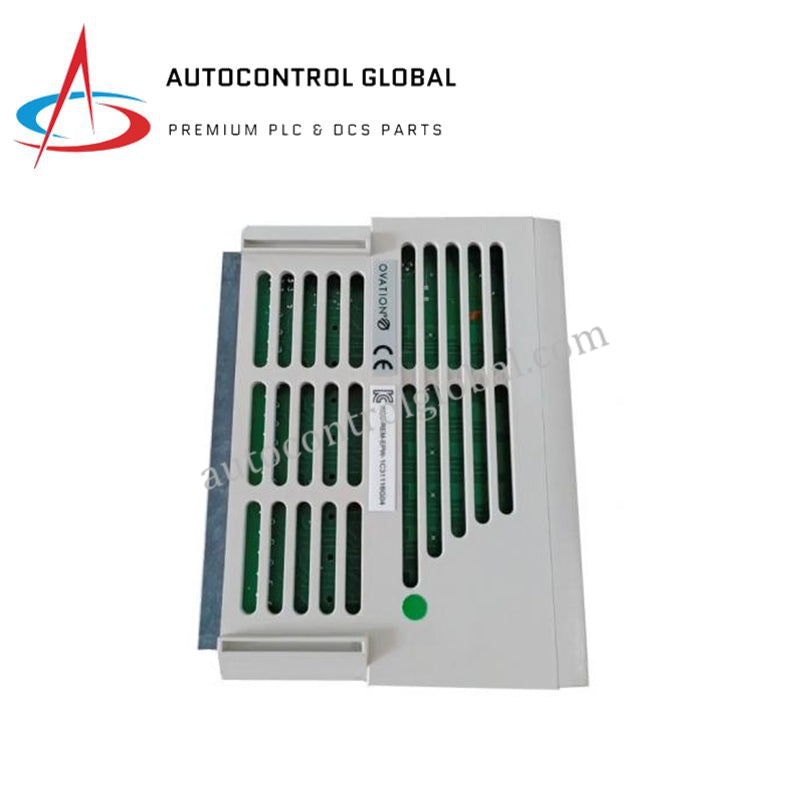

Emerson Ovation 1C31181G04 Model 1C31181G04 Attachment Unit

Emerson Ovation 1C31181G04 Remote I/O Attachment Interface Module

The 1C31181G04 (Model: 1C31181G04) is a high-performance Remote I/O Attachment Unit designed for the Emerson Ovation™ Distributed Control System (DCS). This module serves as a critical bridge between remote field instrumentation and the central Ovation controller, facilitating high-speed data acquisition and control signal distribution. Engineered to maintain signal integrity over extended distances, the 1C31181G04 is vital for distributed architectures in large-scale industrial plants. It provides the necessary signal conditioning and protocol conversion required for the Ovation proprietary I/O bus, ensuring that field data is processed with the microsecond precision required for turbine control and grid synchronization.

Industrial Reliability and Redundancy Support

The 1C31181G04 is optimized for mission-critical sectors such as power generation and chemical processing. A core feature of the 1C31181G04 (Model: 1C31181G04) is its support for redundant I/O configurations. In a redundant setup, the module ensures that if one communication path is compromised, the "A" and "B" side synchronization remains intact, preventing process trips. The module's robust electrical isolation protects the central controller from transient voltage spikes and electromagnetic interference (EMI) originating from long field-side cable runs.

Detailed Technical Specifications

The 1C31181G04 (Model: 1C31181G04) is built for maximum reliability in high-availability automation environments.

• Manufacturer: Emerson Automation Solutions (Westinghouse Heritage)

• Model Number: 1C31181G04

• Product Line: Ovation™ DCS

• Module Type: Remote I/O Attachment Unit / Interface Module

• System Compatibility: Compatible with Ovation standard and remote I/O racks

• Function: Remote field device communication and signal interface

• Input/Output Capacity: Supports 16–32 channels depending on the paired I/O base

• Signal Support: VDC Logic, Analog (4–20 mA), and Digital (24 VDC)

• A/D Resolution: 12-bit to 16-bit conversion capability (when paired with analog cards)

• Isolation: Comprehensive channel-to-logic and channel-to-system isolation

• Power Supply: 24 VDC nominal (Power supplied via backplane interface)

• Power Consumption:  5–10 Watts during full operation

• Diagnostic Indicators: Front-panel LEDs for Power, Communication Status, and Fault Detection

• Operating Temperature: 0°C to +60°C (32°F to 140°F)

• Dimensions: Standard Ovation form factor (200 x 150 x 25 mm)

• Net Weight: 0.136 kg (0.30 lbs)

• Shipping Weight: 0.5 kg (Includes anti-static and impact-resistant packaging
