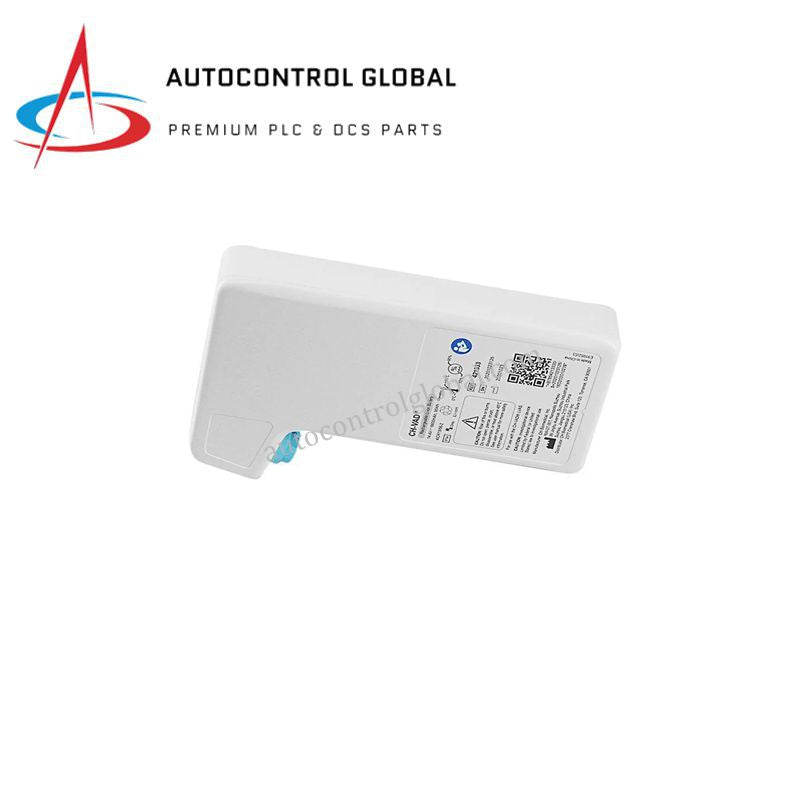

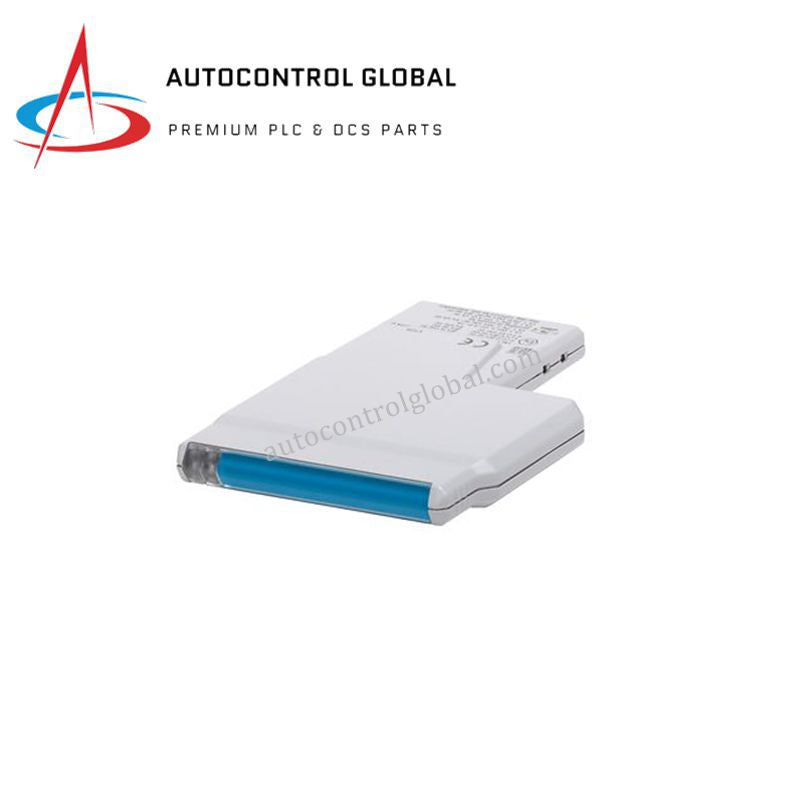

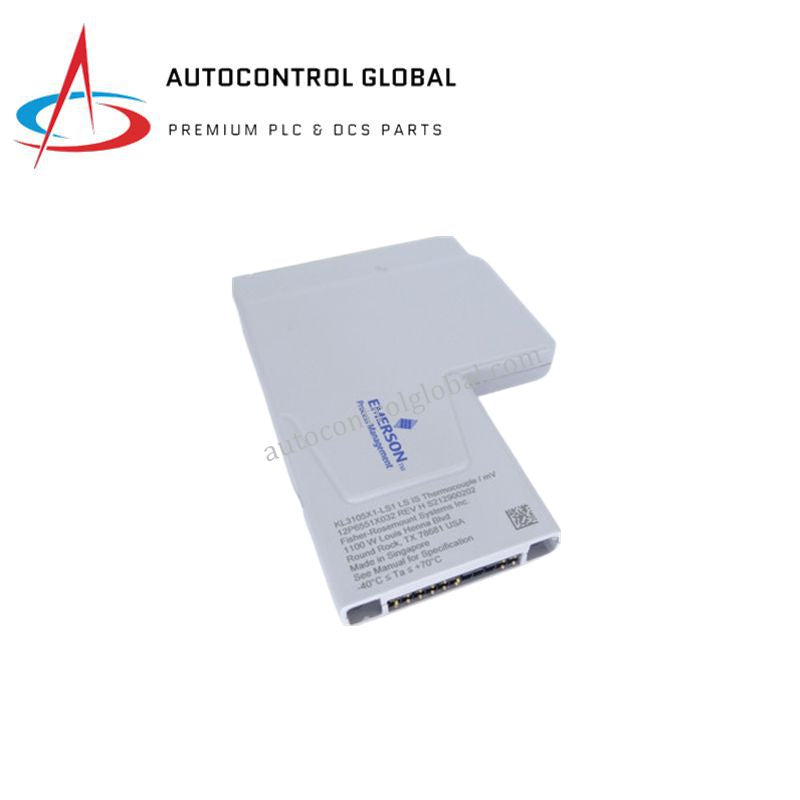

Emerson SE4308T01 | Hazardous Area AO CHARM for SIS Systems
Manufacturer: GE Fanuc
-
Part Number: SE4308T01 KL3102X1-BA1
Condition：New with Original Package
Product Type: Hazardous Area AO CHARM for SIS Systems
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The SE4308T01 paired with KL3102X1-BA1 is part of Emerson’s DeltaV™ CHARM (CHARacterization Module) family, designed for intrinsically safe analog outputs in Safety Instrumented Systems (SIS). This module provides precise 4–20 mA analog output signals with HART protocol support, enabling enhanced diagnostics and field device configuration. Moreover, it ensures safe operation in hazardous environments, meeting rigorous industrial safety standards.
Its compact CHARM design allows quick snap-in mounting on baseplates with key position C2, offering modular scalability for process automation systems. The SE4308T01 is widely used in chemical, oil & gas, and energy sectors where reliable control of actuators and valves is critical.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | SE4308T01 |
| CHARM Part Number | KL3102X1-BA1 |
| Type | Intrinsically Safe Analog Output CHARM |
| Function | 2 analog output channels with HART communication |
| Signal Range | 4–20 mA |
| HART Support | HART v7 pass-through |
| CHARM Bus Power | +6.3 VDC at 0 mA |
| Field Circuit Power | +24 VDC at 56 mA |
| Accuracy | ±0.25% (0–60°C); ±0.5% (-40–70°C) |
| Ambient Temperature | -40°C to +70°C |
| Shock Resistance | 10g, half-sine wave for 11 ms |
| Vibration Resistance | 1 mm (2–13.2 Hz); 0.7g (13.2–150 Hz) |
| Humidity | 5% to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04–1985 Class G3 |
| Certifications | ATEX, IECEx, FM, UKEX |
| Hazardous Area Rating | II 3(1) G Ex ec [ia Ga] IIC Gc; Class I Div 2 Groups A–D |
| Mounting | CHARM baseplate, key position C2 |
| Dimensions | 98 × 60 × 40 mm |
| Weight | 0.2 kg |
| Country of Origin | USA |
| Shipping Port | Xiamen, China |
| Condition | In Stock |
FAQ
Q1: What type of outputs does SE4308T01 provide?
A1: It provides 2 intrinsically safe analog outputs in the 4–20 mA range.
Q2: Does it support HART communication?
A2: Yes, the module supports HART v7 pass-through for diagnostics.
Q3: Where can this module be installed?
A3: It mounts on CHARM baseplates with key position C2.
Q4: Is this suitable for hazardous areas?
A4: Yes, it is ATEX, IECEx, FM, and UKEX certified for safety-critical environments.
Q5: What industries commonly use this module?
A5: Chemical processing, oil & gas, energy production, and other industrial automation sectors.
