EPRO PR6424/000-030 | API 670-Compliant Shaft Vibration Sensor
Manufacturer: Epro
-
Part Number: PR6424/000-030
Condition：New with Original Package
Product Type: Compliant Shaft Vibration Sensor
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

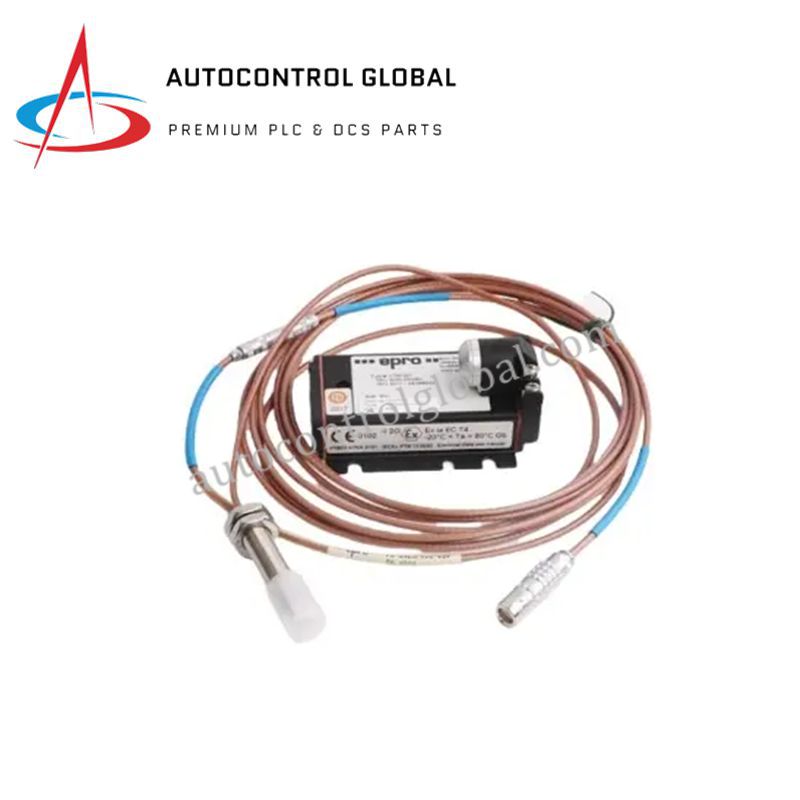

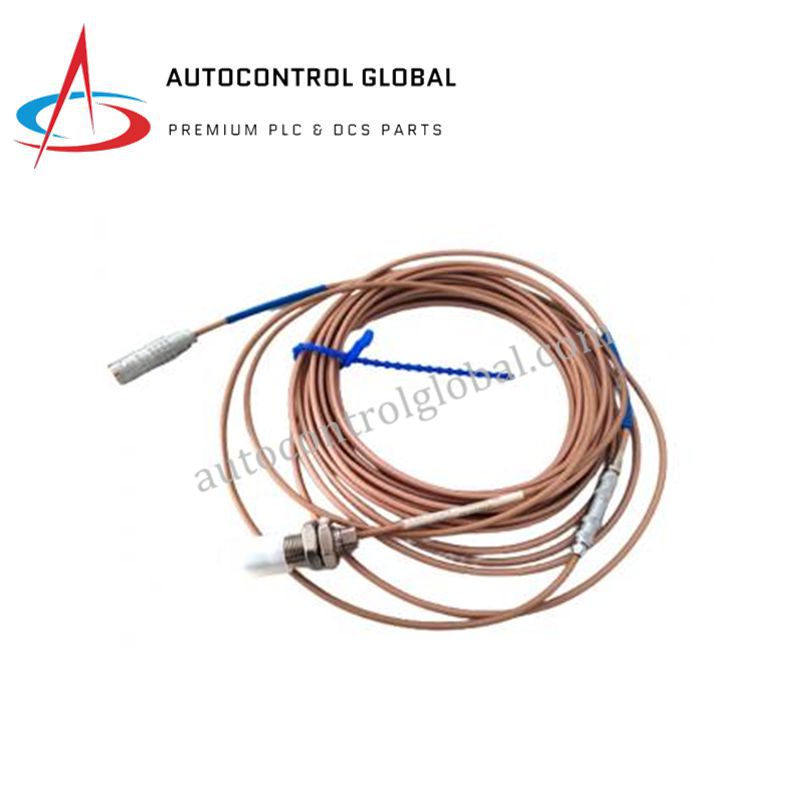

EPRO PR6424/000-030 – 16 mm Eddy Current Displacement Sensor
Product Overview

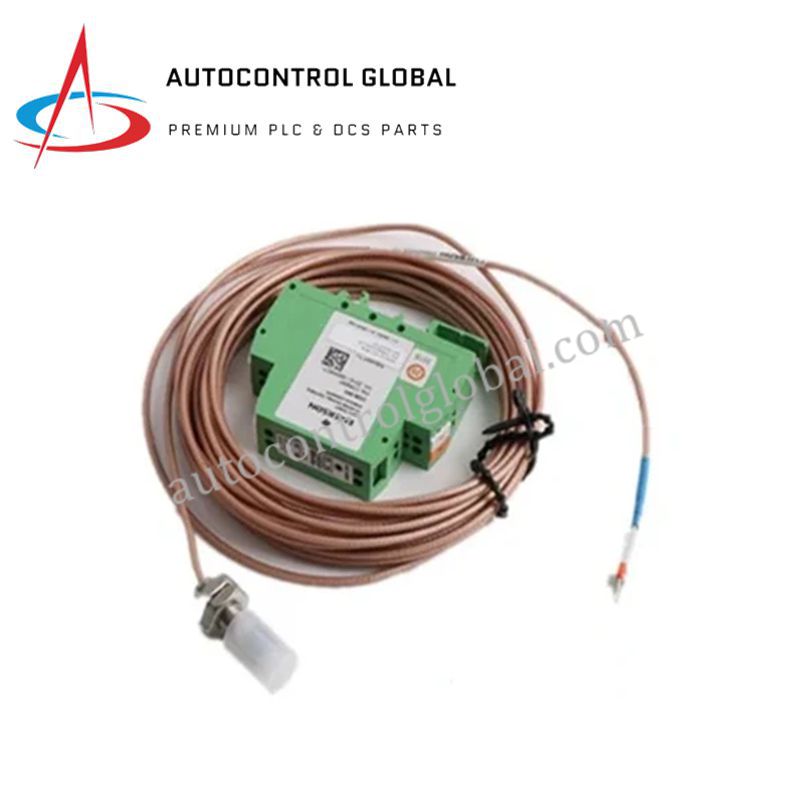

The EPRO PR6424/000-030 is a high-precision, non-contact eddy current displacement sensor designed for accurate measurement of radial shaft vibration, axial displacement, and rotational speed in rotating machinery. It is part of Emerson’s PR6424 series and is typically paired with a CON021 converter to create a fully API 670-compliant vibration monitoring system.
This sensor is widely used in steam turbines, gas turbines, compressors, pumps, and fans, where durability, precision, and reliability are critical for machinery protection and predictive maintenance. Its compact design and robust construction make it ideal for harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PR6424/000-030 |
| Sensor Type | Eddy current displacement sensor |
| Sensor Tip Diameter | 16 mm |
| Sensitivity | 4 V/mm ±1.5% |
| Static Measurement Range | ±1.0 mm (0.04 in) |
| Dynamic Range | 0 to 500 μm (0 to 20 mil) |
| Frequency Response | 10 Hz to 10 kHz |
| Accuracy | ±0.2% of reading ±1 μm |
| Operating Voltage | DC 10 V to 28 V |
| Current Consumption | Max. 10 mA @ 24 VDC |
| Operating Temperature | –20 °C to +85 °C |
| Dimensions | Φ24 mm × 36 mm |
| Weight | 0.34 kg |
| Protection Class | IP66 |
| Housing Material | Stainless steel |
| Sensor Tip Material | PEEK |
| Cable Material | PTFE |
| Certifications | CE, RoHS, ATEX (with certified converter) |
FAQ
1. What is the operating temperature range of the PR6424/000-030?
It operates reliably between –20 °C and +85 °C, suitable for harsh industrial conditions.
2. Can it measure both static and dynamic displacement?
Yes, it measures up to ±1.0 mm static and 0–500 μm dynamic displacement accurately.
3. Which converters are compatible with this sensor?
The PR6424/000-030 is typically paired with the CON021 converter.
4. How resistant is it to industrial environments?
The stainless steel housing, PEEK tip, and IP66 rating ensure protection against dust, moisture, and mechanical stress.
5. Is reverse mounting supported?
Yes, the sensor supports reverse mounting with an adapter plug for flexible installation.
